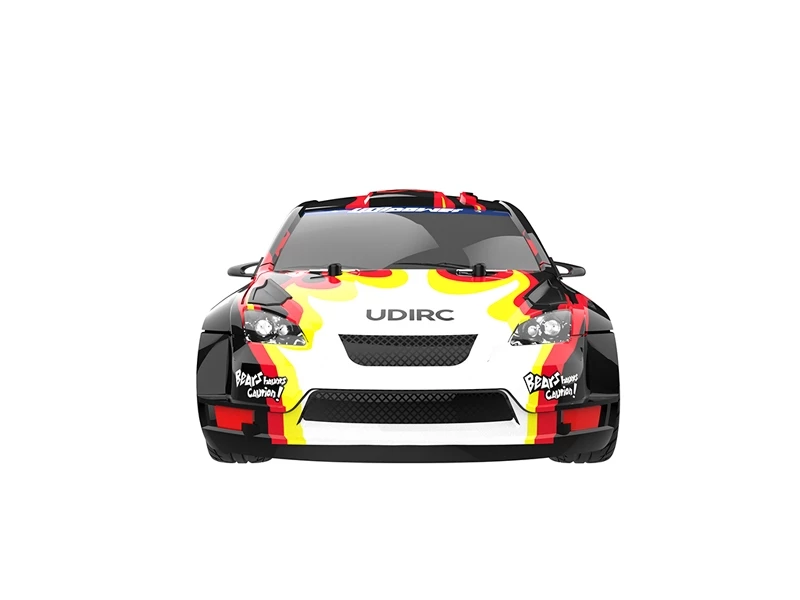

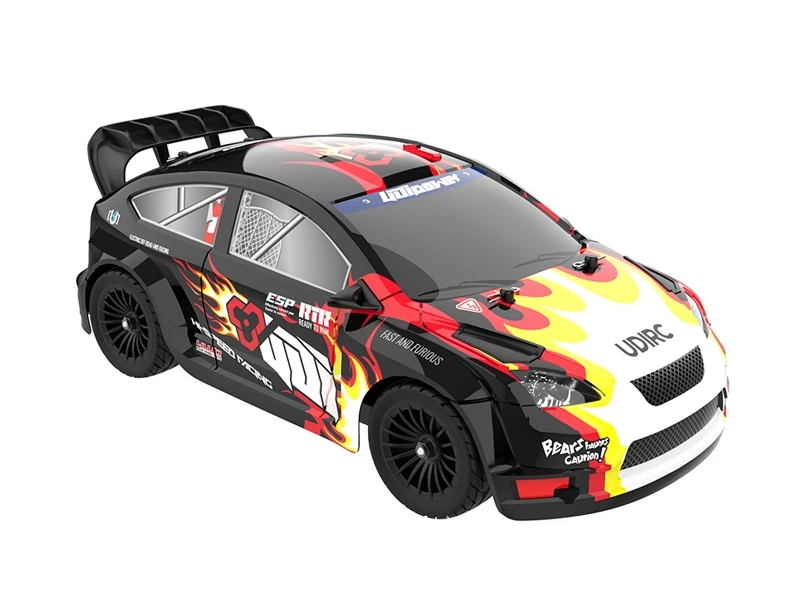

Udi RC Rally F Style – Pro Brushless

Introducing the UDI RC Rally Car.  Available with either an attractive L ‘type’ or F ‘type’ body style.

PRO Brushless version.

1/16 Full proportion high-performance 4WD racing car, integrated ESP (Electronic Stability Program) , effectively correct yaw, easier to control. It embodies the high level of creativity in design and engineering that unleashed a stunning array of new technology, new innovation.

4CH 2.4GHz integrated receiver and electronic speed control (ESC)

Waterproof, dustproof design ESP (Electronic Stability Program) Low voltage cut-off and thermal overload protection, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings.

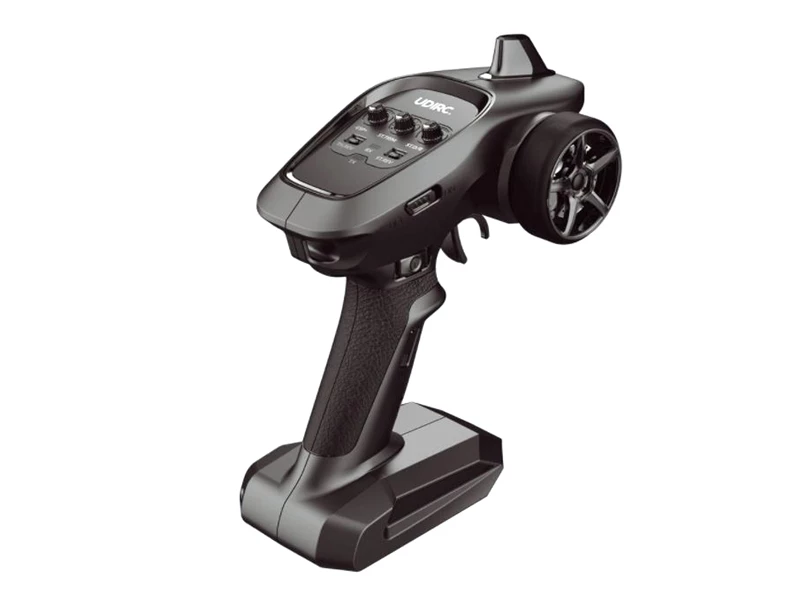

• 2.4GHz Racing Wireless Control System
• Ergonomic steering wheel for precise control.
• On-the-fly adjustable AVC gain for personalized handling.
• Lightweight and ergonomic design for long bashing.
• 3 channel radio system.
• 2.4GHz connection built around DSMR technology.
• Full-range telemetry capabilities.

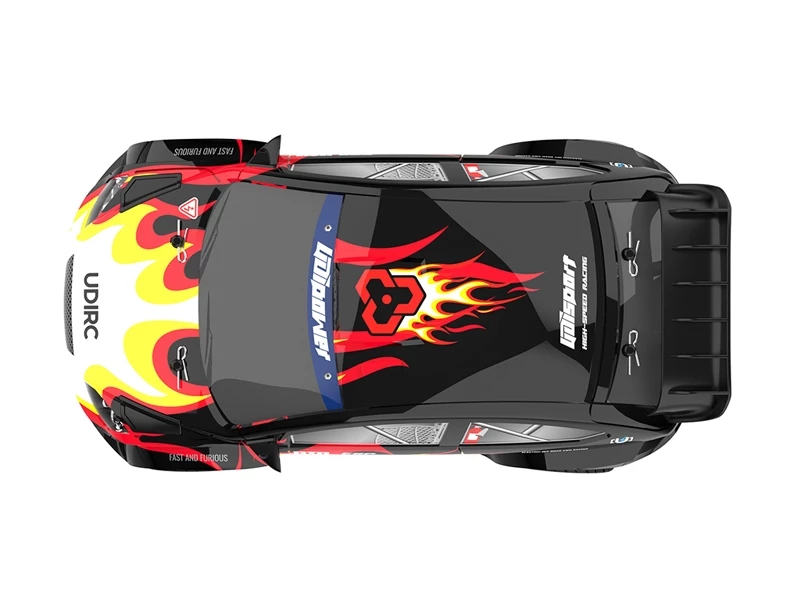

Stunning New Body Prints

• Two new striking colour schemes to choose between.

Steering Servos

• Waterproof and dustproof design
• Torque: ≥2.3 kgf·cm @6V
• Speed: ≤0.10 Sec/60° @6V
• Dimensions: 40×29.6×13.2mm

Headlights

• Angel eyes headlights
• Lights can be controlled via the radio

Replaceable Tires

• Standard tires and drift tires
• Equipped with two sets of different tires to adapt to different roads and can be changed freely

Power Supply

• 7.4V, 1200mAh (8.88Wh)
• Rechargeable Li-ion Battery

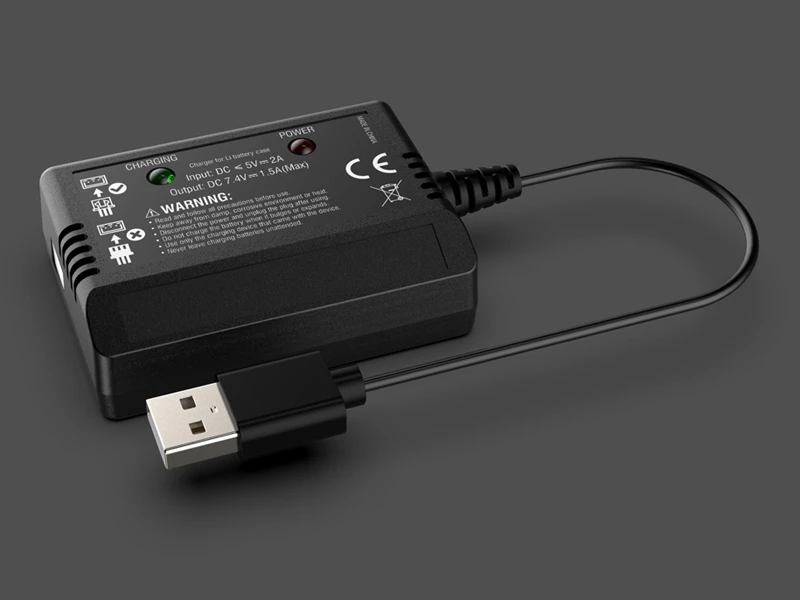

USB Charger

• Equipped with USB charger, which has various methods of charging and makes charging more convenient.
• Charging methods: Phone Charger, Power Bank, Computer, Car Charger.

Fully Integrated Aero Chassis

• Integrated chassis and diffuser for slick underside airflow.

Double protection

• Front and rear bumpers, separating the force generated by the violent impact.

Specification

• Approximate Assembly Time: Less than half an hour
• Ball Bearings: Full set
• Battery: Included
• Transmission distance: About 60 meter
• Running time: About 15 minutes
• Battery Capacity: 7.4V, 1200mAh
• Charger: Included
• Completion Level: Ready-To-Run
• Differential: Two oil-filled gear
• Drivetrain: 4WD
• Drive Type: Forward/Brake/Reverse
• Final Drive Ratio: 6.05:1
• Front Track: 3.98″ (101mm)
• Power Type: Electric
• Gear Pitch: 0.5/0.7/1.0MOD
• Ground Clearance: 0.39″ (10mm)
• Internal Gear Ratio: 2.8:1.1
• Motor Type: Brush Motor / Brushless Motor
• Pinion: 16T
• Product Length: 11.81″ (300 mm)
• Product Width: 5.91″ (150 mm)
• Product Height: 3.93″ (100 mm)
• Product Weight: 1.4lbs (635.5g)
• Radio: Included
• Rear Track: 3.98″ (101mm)
• Receiver: Included
• Scale: 1/16
• Servos: Included
• Speed Control: Included
• Spur Gear: 38T
• Suspension: Independent
• Vehicle Type: On-Road
• Wheelbase: 6.69″ (170mm)

Package Included:

• 1X RC Car
• 1X Battery
• 4X Spare Drift Tires
• 1X USB Charger
• 1X Instruction Manual
• 1X Small Tools

Requires 4 x AA batteries

Specification

Manufacturer	Udi RC
Part Number	UD1604PRO
EAN	5051294178161
Motor Type	Brushless
Drive	4WD
Surface Type	On-Road
Assembly Type	Assembled (RTR)
Scale	1:16
Vehicle	On-Road
Skill Level	Skill Level 3
Power Bundles	No Bundle Required
