Tamiya Escort Mk.II Rally – MF-01X

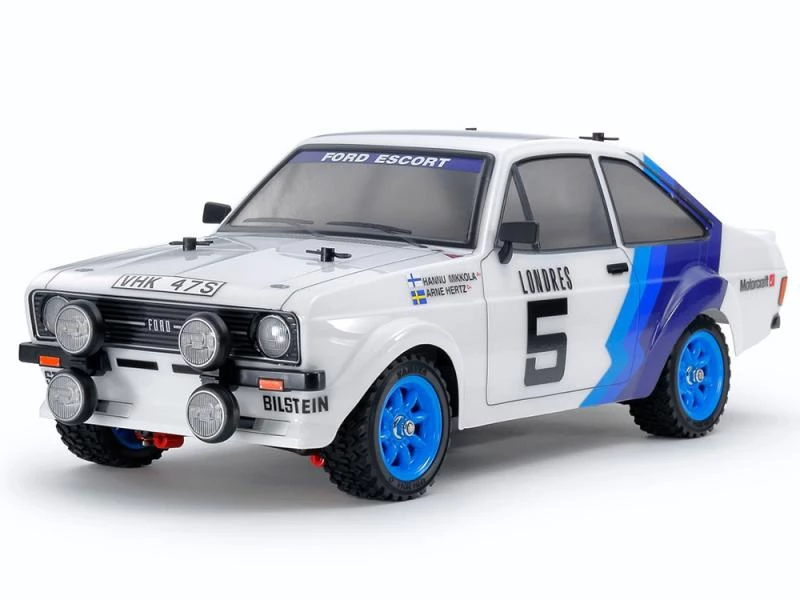

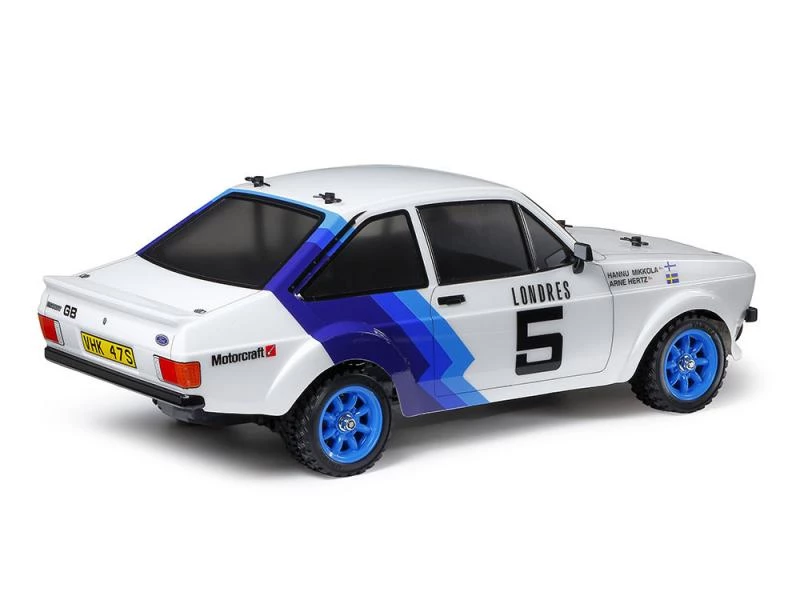

This R/C model assembly kit recreates the classic Ford Escort Mk.II in rally racing form. It was a RAC Rally Champion from 1975-1979. The pre-painted body sits on top the Tamiya MF-01X chassis that is capable both on asphalt and flat dirt surfaces.

MF-01X – Compact 4WD At Home on a Range of Surfaces

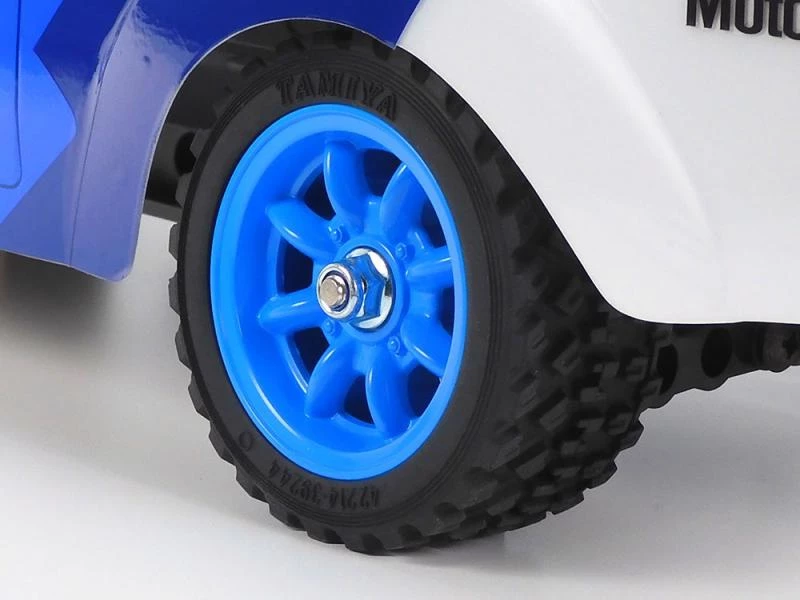

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included.

Specifications:

• 1/10 scale R/C model assembly kit. Length: 414mm, wheelbase: 239mm (L).
• Polycarbonate body pre-painted in White.

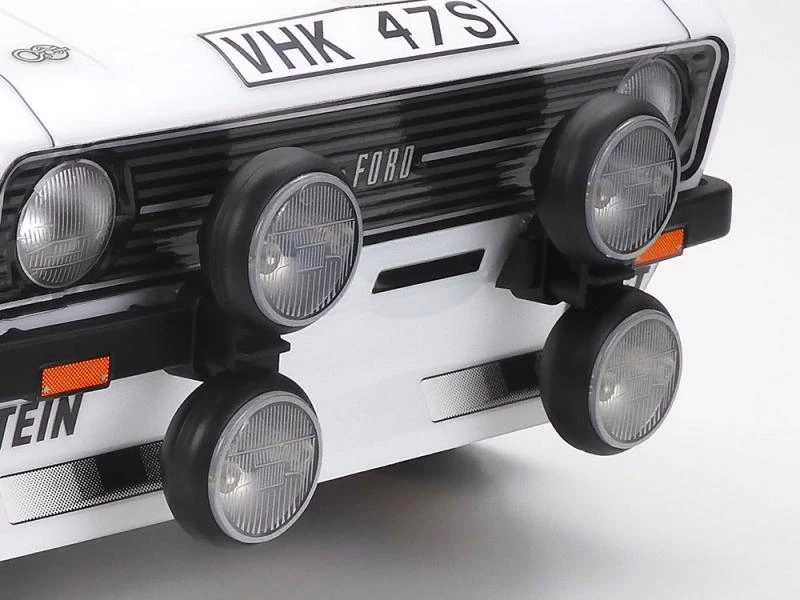

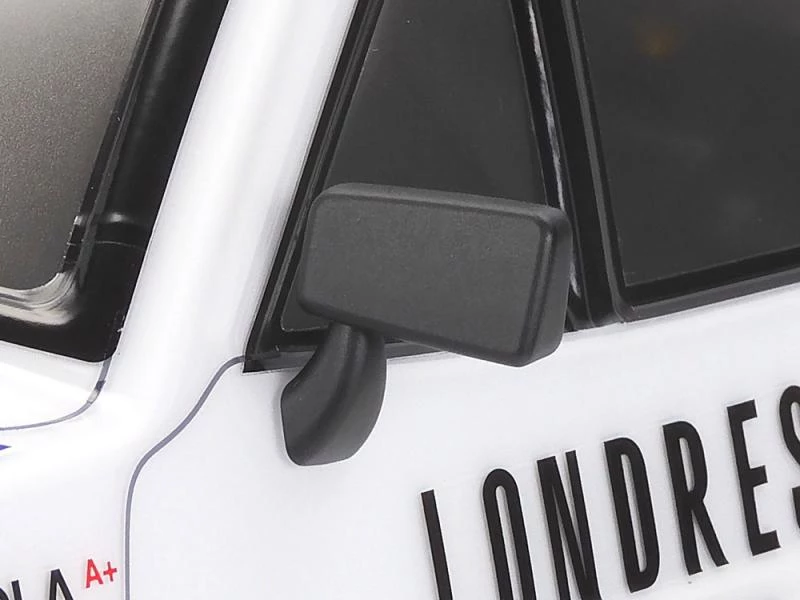

• Separately molded plastic components are included to recreate bumper, side mirrors and fog lamps.

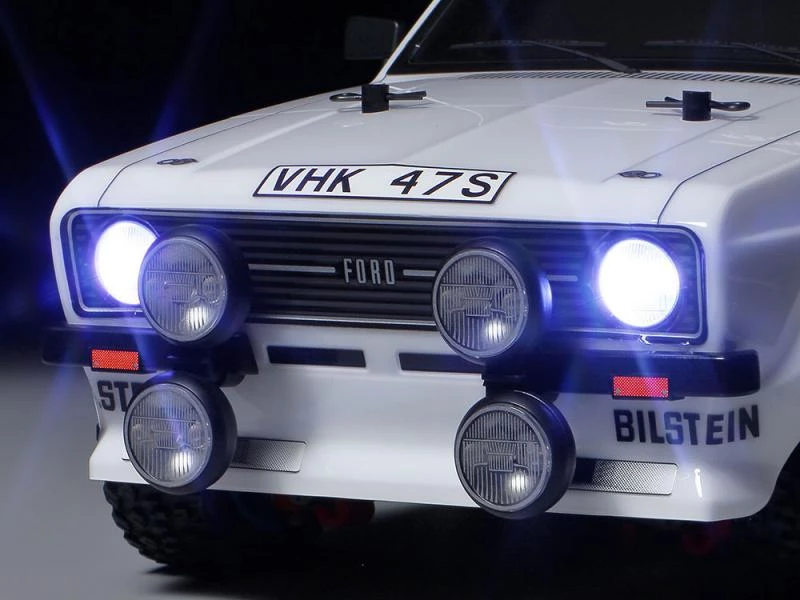

• Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
• Stickers are included to recreate blue livery sections, sponsor logos and more.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
• Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Tamiya Torque Tuned Motor included.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)

Required for completion; 2 Channel Radio System, 1 Servo, Battery and Charger, Tools for assembly.

Specification

Manufacturer	Tamiya
Part Number	58687
EAN	4950344586875
Drive	4WD
Surface Type	Off-Road
Assembly Type	Un-Assembled (Kit)
Scale	1:10
Vehicle	Rally
Motor Type	Brushed
Skill Level	Skill Level 3
Power Bundles	Power Bundle Required
