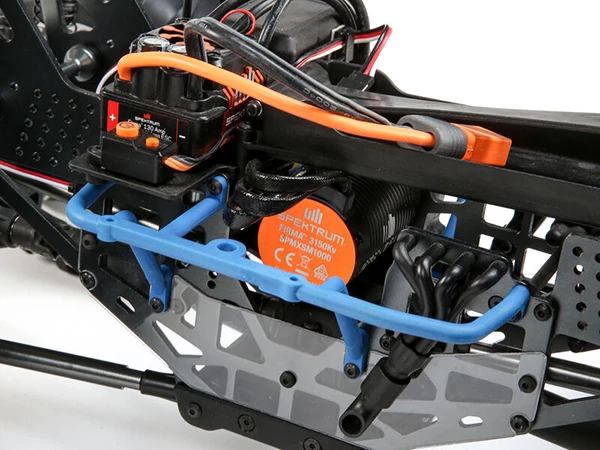

Completely designed from the ground up, the Losi^® LMT 4WD Solid Axle Monster Truck is the first of its kind on the market combining all-out performance with incredible scale detail. Starting with the chassis, a twin vertical plate is designed to provide all of the performance adjustments needed to tune the truck for any situation. Whether you are a scale driver, a basher or a racer, the chassis is designed to accommodate multiple shock setups keeping you tracking straight, no matter the terrain. New multi-piece axle housings surround the 1/8th scale drivetrain. Additionally, the easy access center transmission comes stock with a center differential and allows for quick changes with the optional spool for that wheel standing action. For the true Monster truck experience, the axles also allow for optional 4-wheel steering and a new adjustable servo saver to keep the wheels pointed in the right direction. The Spektrum^™ Firma^™ Smart 130 Amp ESC and 3150kv 4-pole Brushless motor allow you to unlock blazing speeds. Drivers stay in control with a DX3^™ transmitter and a Spektrum SR315 DSMR^® 3-Channel Sport Receiver. A composite flip top cage adds scale realism and protection, as well as functionality so you can easily access your battery and electronics. Of course, the scale detail doesn’t stop there with headers, drivers and LED lights and we’ve teamed up with Monster Jam for your choice of a Grave Digger or Son-Uva Digger body. The LMT Monster Truck has just thrown down the gauntlet on solid axle monster trucks.

Features

Solid Axle Monster Truck
Monster Jam Licensed MT
Twin Vertical Plate Chassis
Brushless Power System

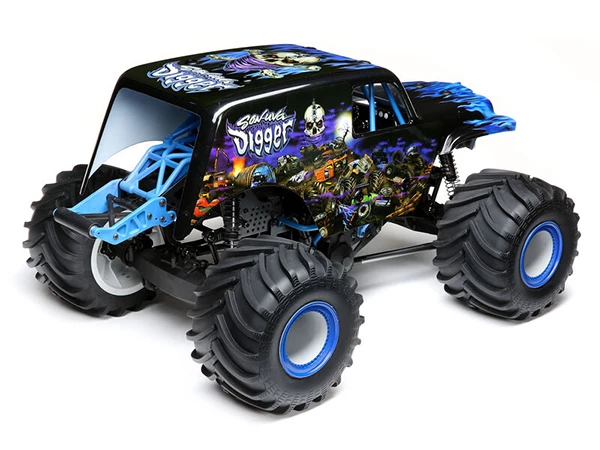

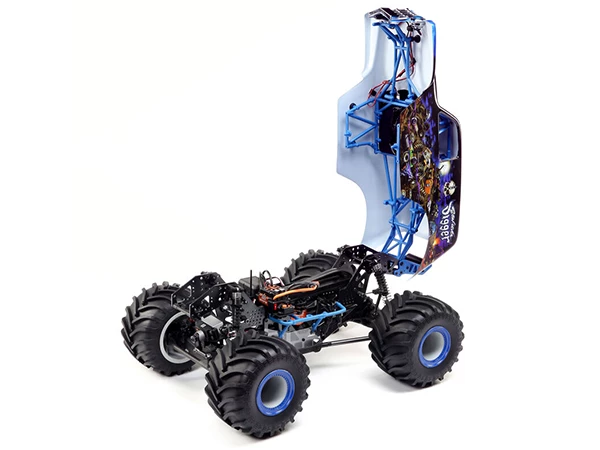

Composite Flip Top Cage
Smart Technology included
Multi Piece Scale Axle Housing
Long Travel Coil Over Shocks
Center Differential with Cush Drive
1/8th Scale Diffs
Short Course Style Wheel with replaceable center hub
Scale Monster Truck Tire
Adjustable Servo Saver
Scale Details
Driver Insert

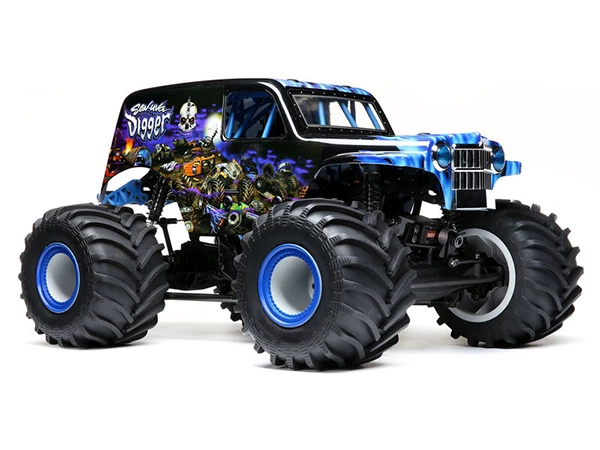

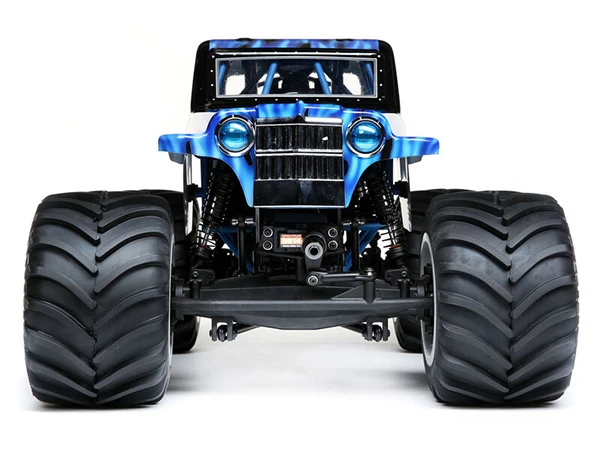

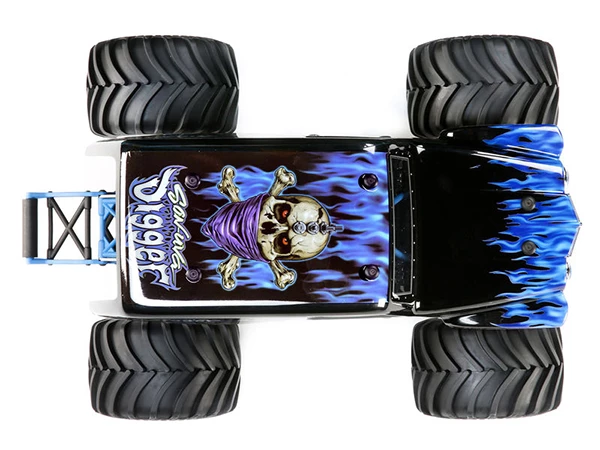

Molded grill on the Son-Uva Digger body (Son-Uva Digger only)
Preset motor plate produces easy, precise gear mesh
Elastomer battery mounting for a versatile battery hold down system

In The Box?

(1) LMT 4WD Solid Axle Monster Truck RTR
(1) Product Manual

Needed to Complete

2-3S LiPo Battery with IC5/EC5 Connector
LiPo Compatible Charger
Modelsport always recommends a LiPo Charge Bag

Full Specs

Approximate Assembly Time Less than 1 hour
Ball Bearings Full set
Battery Sold Separately
Body Trimmed and painted Grave Digger
Charger Sold Separately

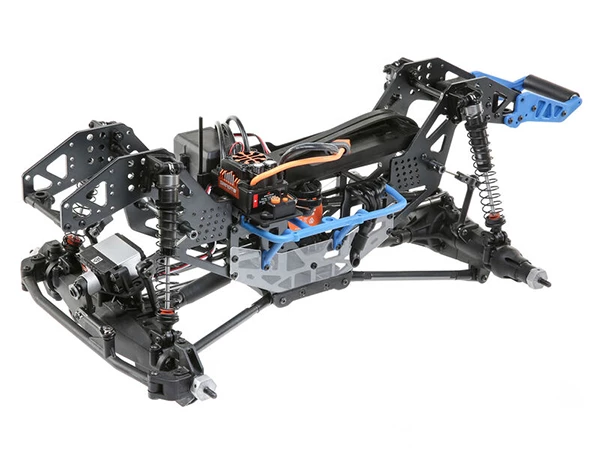

Chassis 6061-T6 Aluminum Twin Vertical Plates with Removable Shock Towers
Completion Level Ready-To-Run
Differential Bevel gear, sealed
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Final Drive Ratio 18.76:1
Power Type Electric
Gear Pitch 1.0 MOD
Ground Clearance 2.0″ (50.8mm)
Internal Gear Ratio 10.16:1
Motor Size 3660
Motor Type Brushless – Sensorless
Pinion 14T
Product Height 11.8″ (300 mm)
Product Length 22″ (559 mm)
Product Weight 10.9lbs (4.94kg) without battery
Product Width 15.4″ (391 mm)
Radio Included
Scale 1/10
Servos Included
Shock Type Aluminum body , oil-filled, coil-over
Suspension Solid Axle 4-link
Tire Compound Firm
Tire Tread BKT Monster truck
Tire Type All-terrain
Vehicle Type Monster Truck
Wheelbase 13.5 in (342.9mm)
Wheel Hex Size 17mm
Wheel Width 4.0 in (101.6mm)

Specification

Manufacturer	Losi
Part Number	C-LOS04021T2
EAN	0605482718698
Motor Type	Brushless
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:8
Vehicle	Monster Truck
Skill Level	Skill Level 3
Power Bundles	Power Bundle Required
