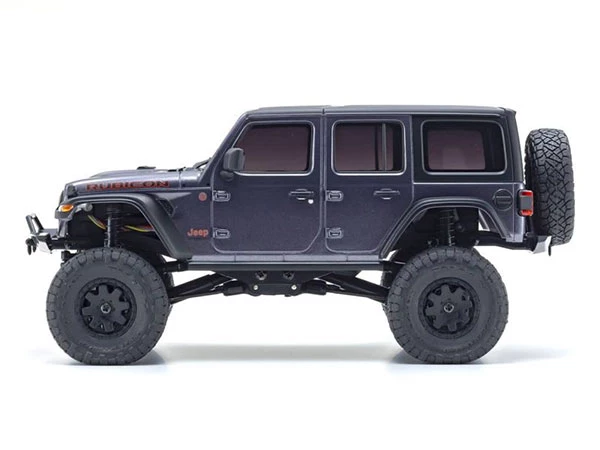

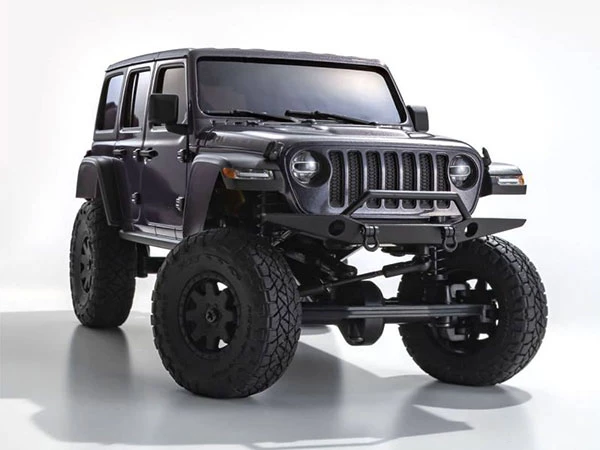

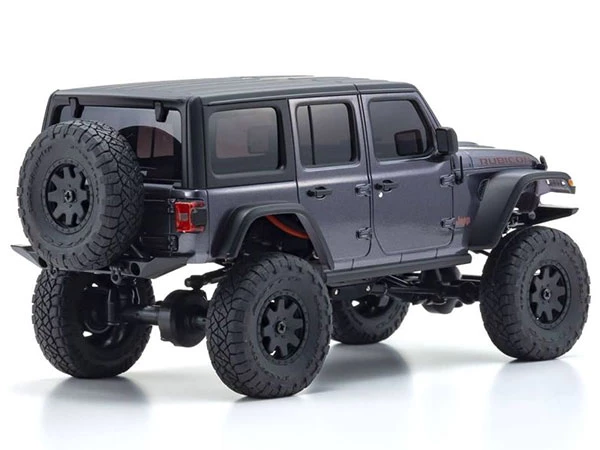

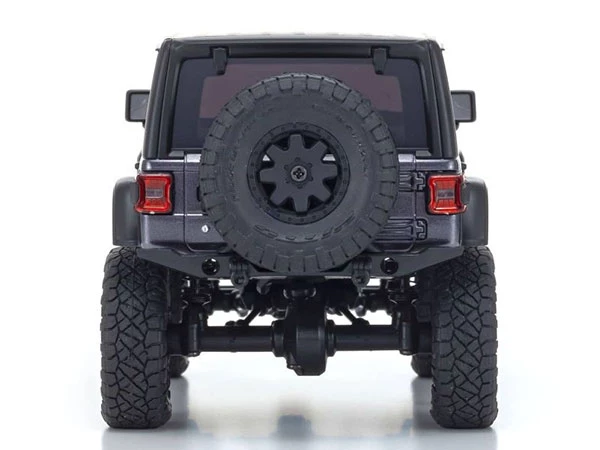

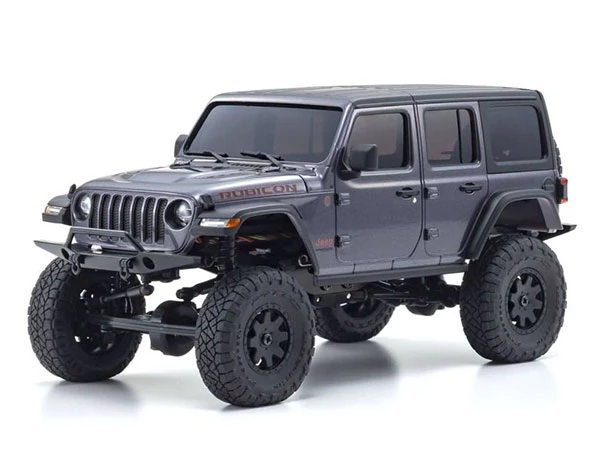

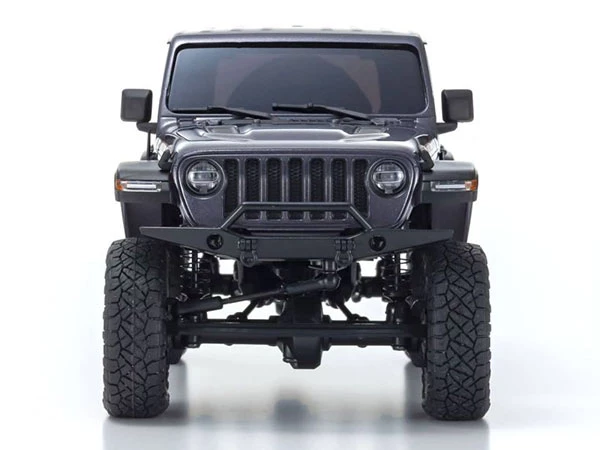

Kyosho Mini-Z 4X4 MX-01 Jeep Wrangler Rubicon Granite Metallic (KT531P)

The combination of the highly-detailed body and a completely new 4×4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.

Technical Data

• Length 197.3mm
• Width 87.3mm
• Height 89.1mm
• Chassis Type MX-01
• Wheel Base 120mm
• Tread F/R:72.7mm
• Weight 234g (excl. battery)
• Motor/Engine 130 Class
• Gear Ratio 55.44：1/46.20：1/39.60：1
•                     34.65：1/30.80：1/27.72：1
• Front Tire Diameter Φ42.0mm
• Rear Tire Diameter Φ42.0mm
• Front Tire Width 14.3mm
• Rear Tire Width 14.3mm
• Battery 4 x AAA Alkaline
• Transmitter Syncro KT-531P
• Speed：Approx. 2.7km/h〜5.4km/h  (Pinion gears 10T〜 20T)
• Running Time Approx. 60 mins

Kit Content

• Complete chassis with built-in electronics.
• Factory-painted body complete with many fine details

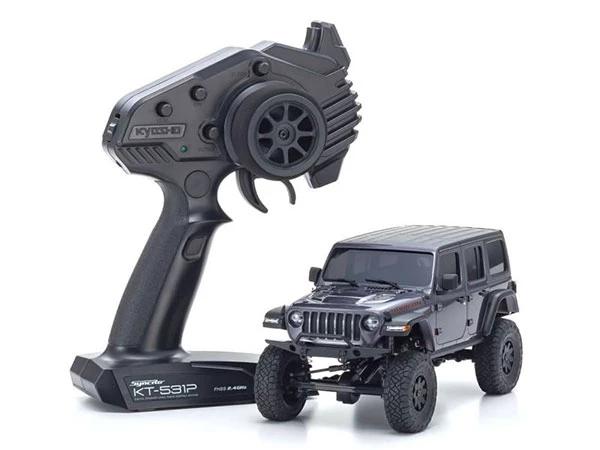

• KT-531P 2.4GHz transmitter
• Pinion gear set（10T、12T、14T、16T、18T、20T）
• 3 types of pinion gear spacers

Required for Use

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for chassis （Alkaline or NiMH）

Specification

Manufacturer	Kyosho
Part Number	32521GM
EAN	4548565390458
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:27
Skill Level	Skill Level 1
Vehicle	Rock Crawler
Motor Type	Brushed
Power Bundles	No Bundle Required
