Kyosho FAZER MK2 (L) Chevrolet Chevelle SS 454 LS6 1:10 Readyset

Now driving R/C is even more fun
Newly designed FZ02 chassis with realistic racing car body

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 274mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

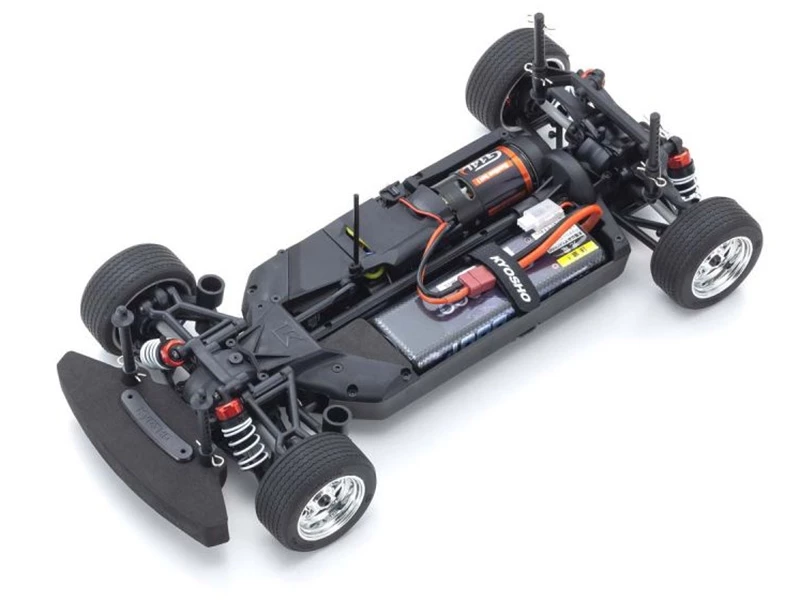

New design shaft drive full-time 4WD touring chassis（FZ02）.
Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
Equipped with 2-bevel grease-filled gear diffs on front and rear.
Large size dog bones and cup joints realize superior reliability and durability.
Belt mounting battery compartment allows various battery types to be used.
Full ball bearings that reduce drive loss equipped throughout the drive system.
Features KS202W waterproof steering servo.

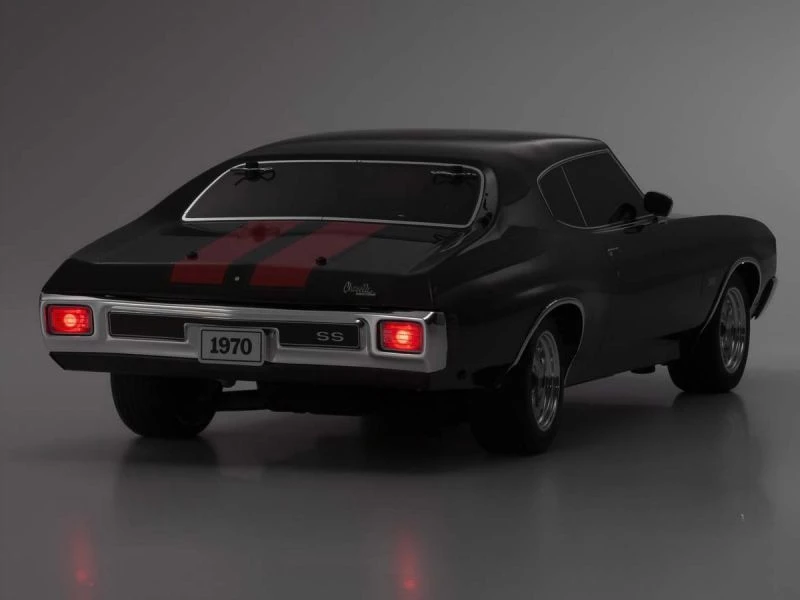

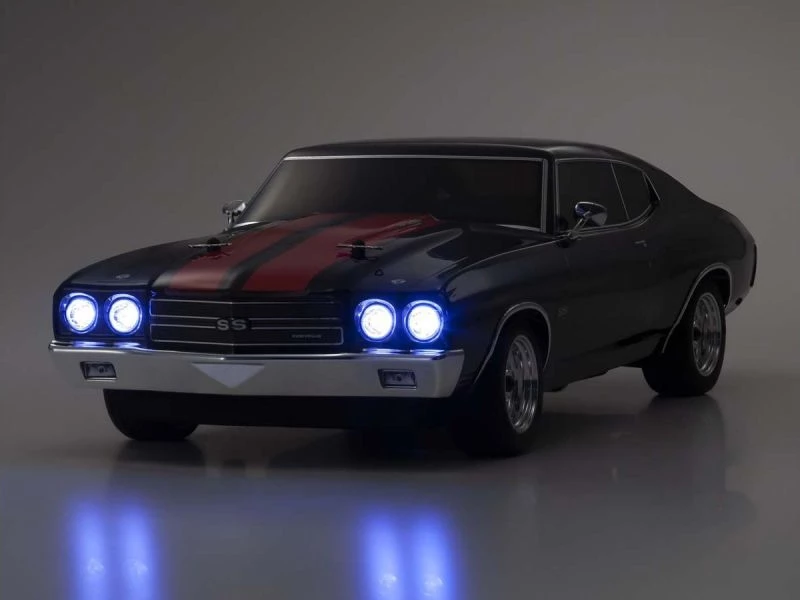

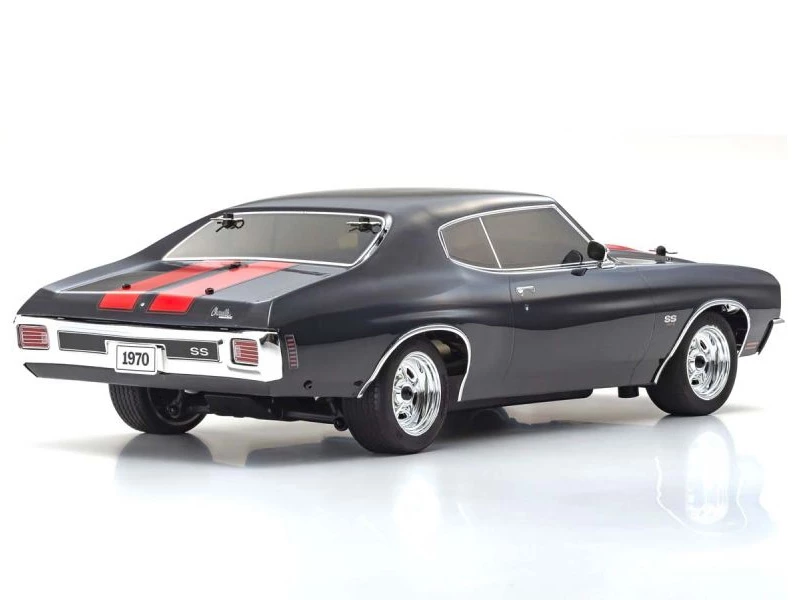

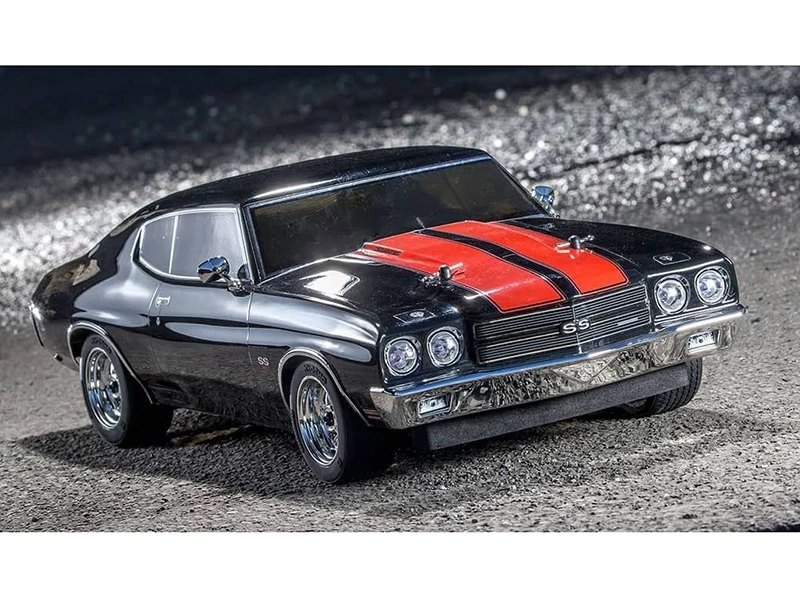

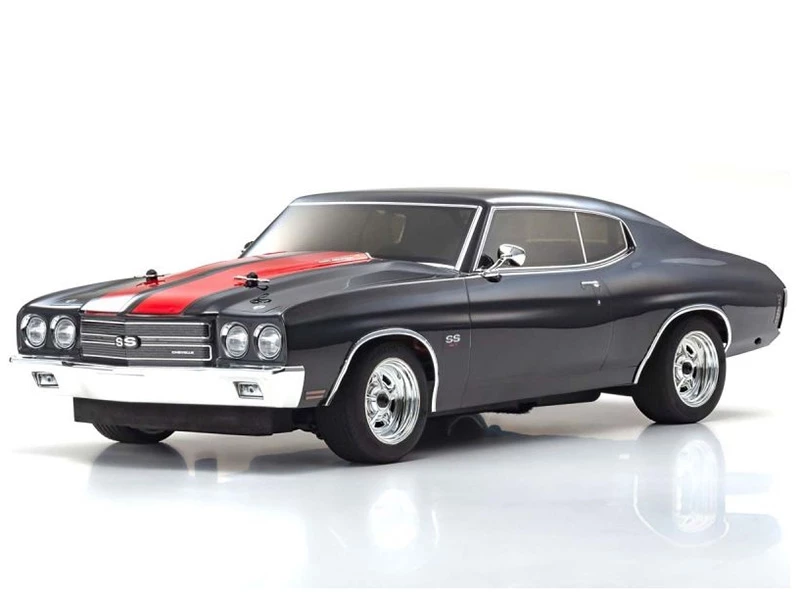

Includes completely finished body with color scheme and decals applied.
Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
Performance can be further enhanced by installing various optional parts.

New design shaft drive full-time 4WD touring chassis（FZ02L）.
Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
Equipped with 2-bevel grease-filled gear diffs on front and rear.
Large size dog bones and cup joints realize superior reliability and durability.
Belt mounting battery compartment allows various battery types to be used.
Full ball bearings that reduce drive loss equipped throughout the drive system.
Features KS202W waterproof steering servo.
Includes completely finished body with color scheme and decals applied.
Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
Performance can be further enhanced by installing various optional parts.

Technical datas

Length 455mm
Width 195mm
Wheelbase 274mm
Tread (F/R) F：167mm／R：167mm
Tires (F/R) F：φ64×27.7mm／R：φ64×27.7mm
Gear Ratio 6.5：1
Weight 1650g (approx.)
R/C system Syncro KT-231P+
Motor G14L

Kit Contents

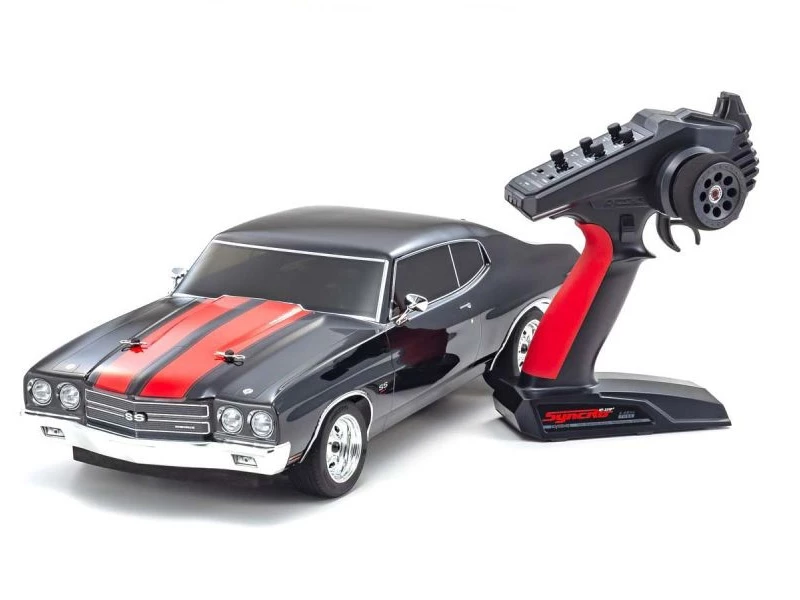

Completed chassis with R/C radio installed
Factory assembled body complete with color scheme
Syncro KT-231P+ transmitter
Installed 60A waterproof electronic speed controller (forward/brake/reverse)
Hexagonal wrench
Spanner

Required for Operation

4 x AA batteries for transmitter
Battery for chassis (recommended: 7.2V Ni-MH battery)
Charger for battery for chassis
Tools

Specification

Manufacturer	Kyosho
Part Number	34416T2B
EAN	4548565405220
Motor Type	Brushed
Drive	4WD
Surface Type	On-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	On-Road
Skill Level	Skill Level 2
Power Bundles	Power Bundle Required
