For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

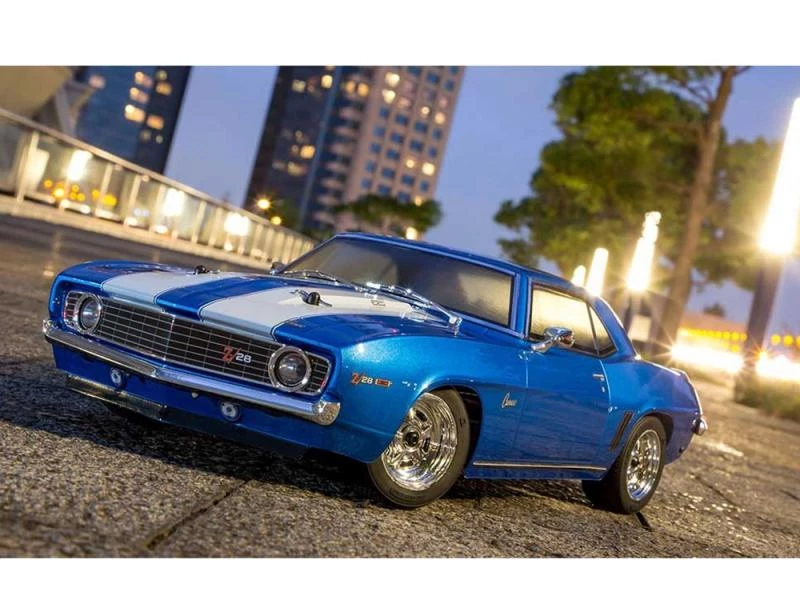

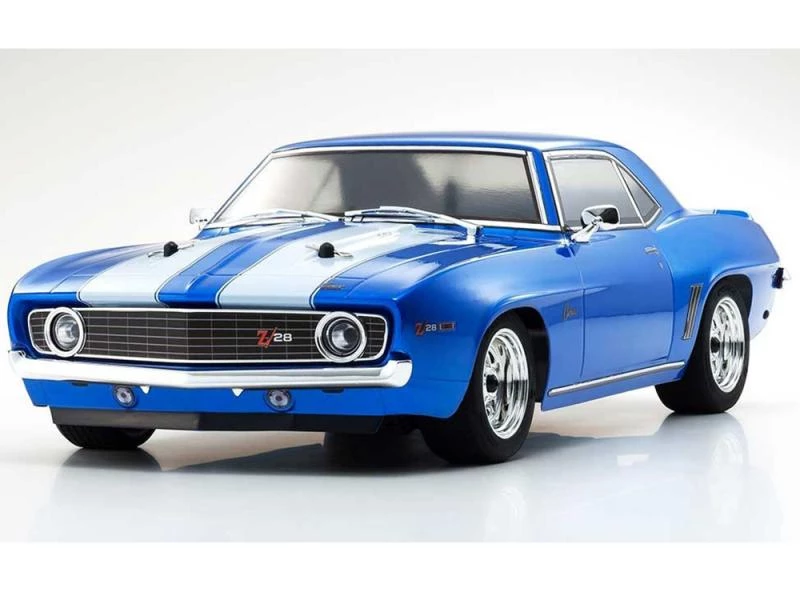

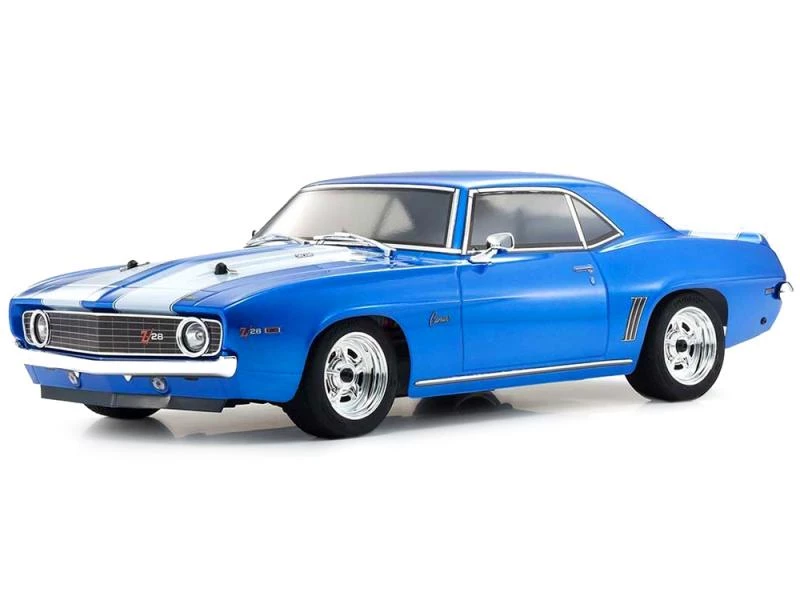

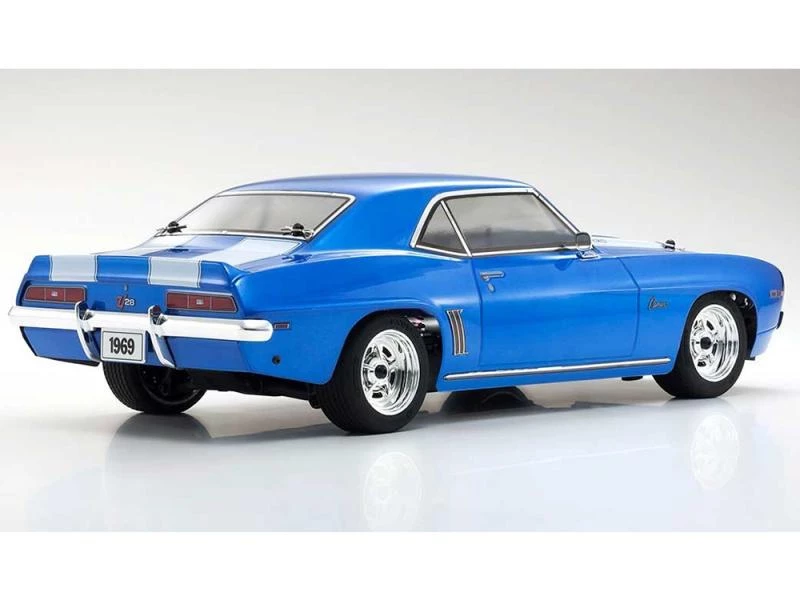

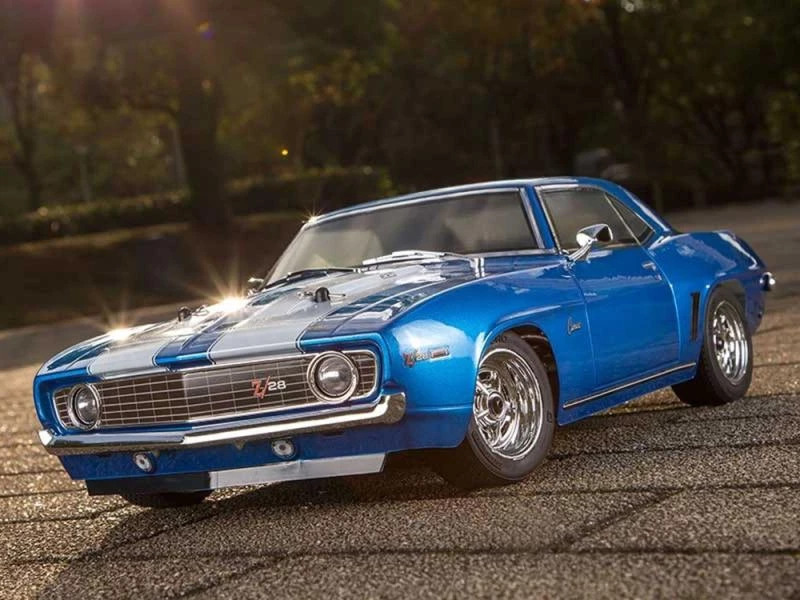

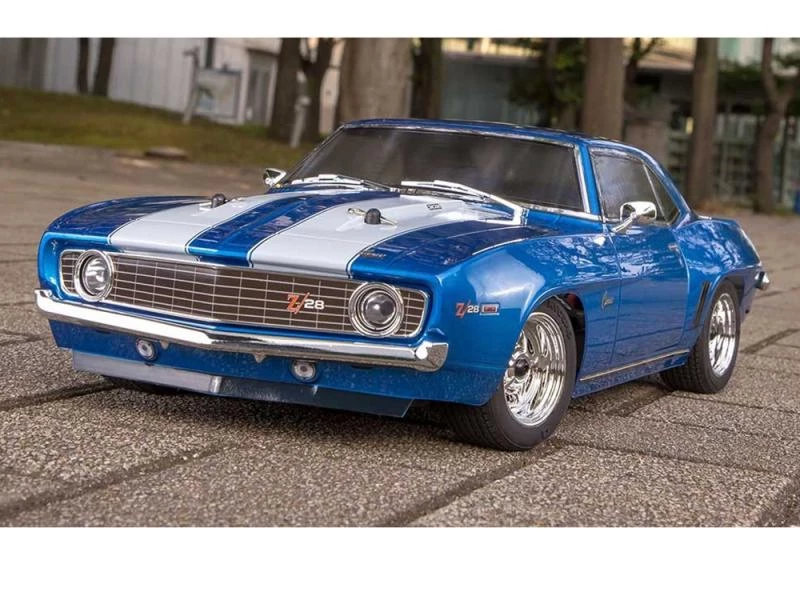

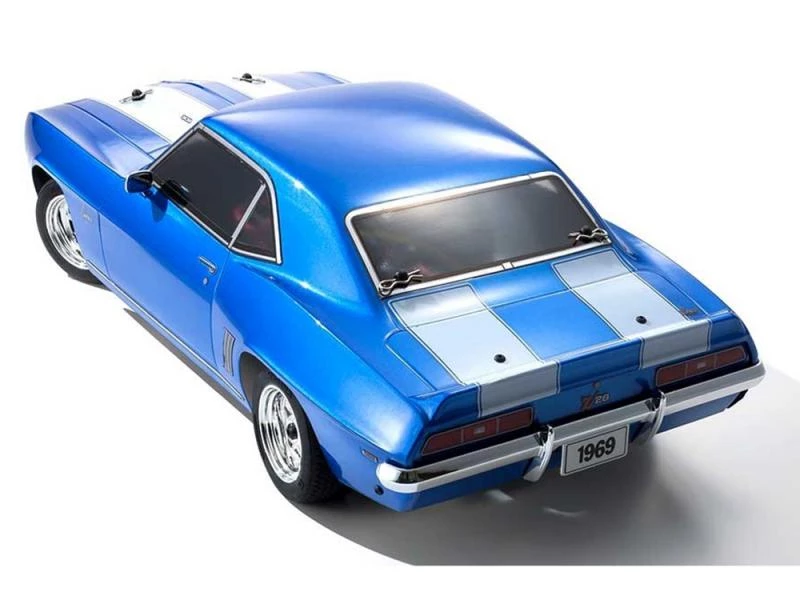

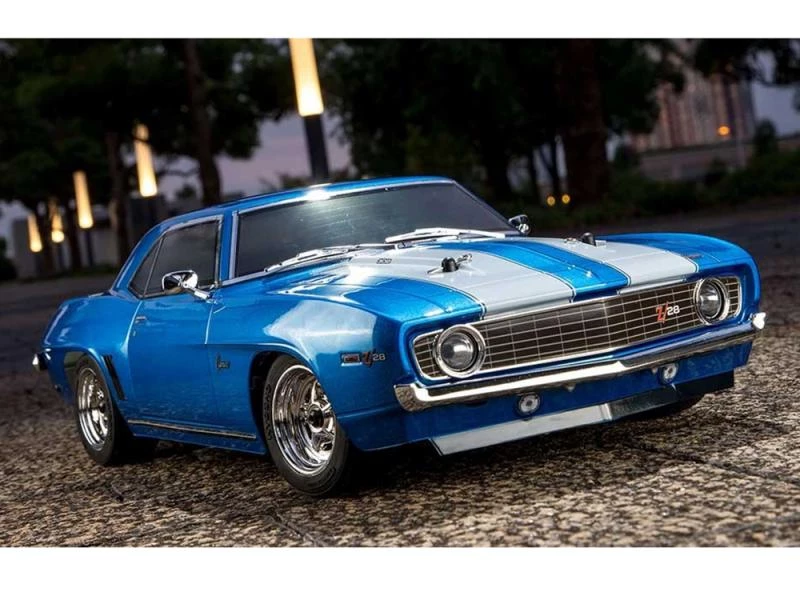

“Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.

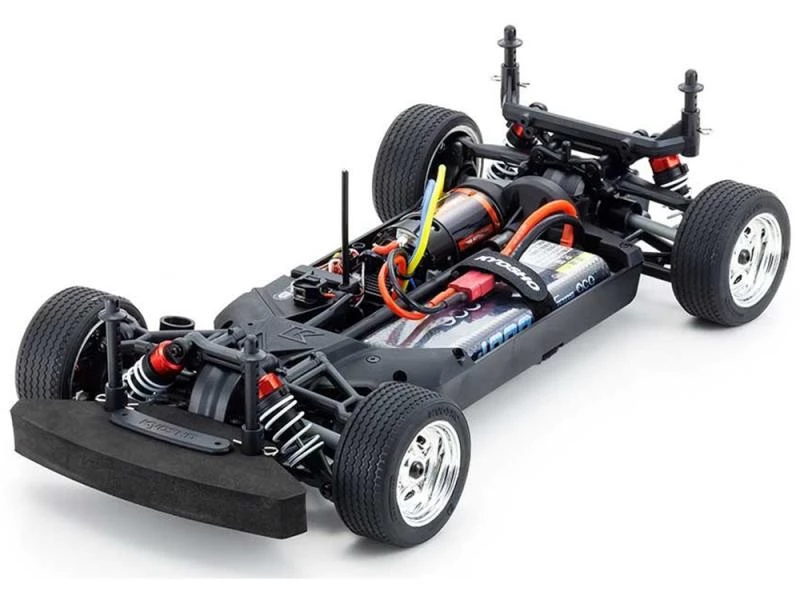

New design shaft drive full-time 4WD touring chassis（FZ02L）.
Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
Equipped with 2-bevel grease-filled gear diffs on front and rear.
Large size dog bones and cup joints realize superior reliability and durability.

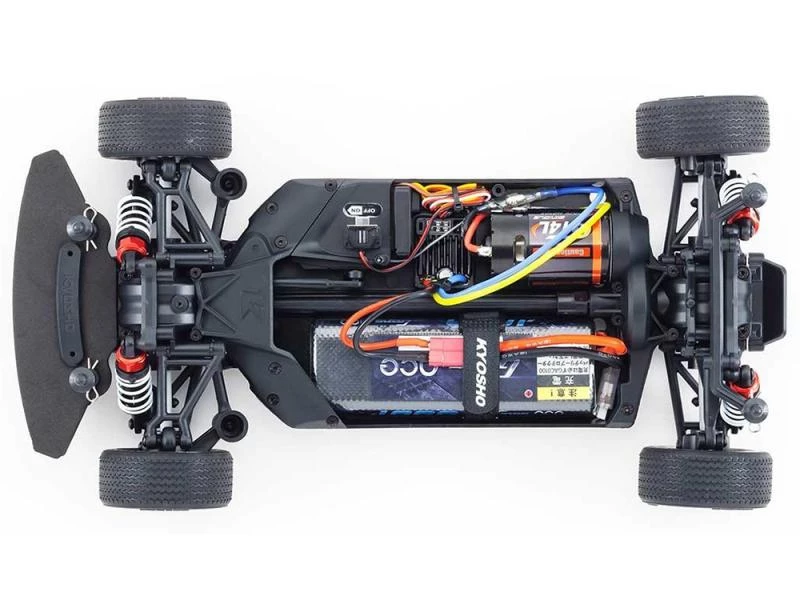

Belt mounting battery compartment allows various battery types to be used.
Full ball bearings that reduce drive loss equipped throughout the drive system.
Features KS202W waterproof steering servo.
Includes completely finished body with color scheme and decals applied.
Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
Performance can be further enhanced by installing various optional parts.

Technical Data:

Length 507mm
Width 195mm(Body width:210mm)
Wheelbase 274mm
Tread (F/R) F：167mm／R：167mm
Tires (F/R) F：φ64×27.7mm／R：φ64×27.7mm
Gear Ratio 6.54：1
Weight 1650g (approx.)
R/C system Syncro KT-231P+
Motor G14L

Kit Contents

Completed chassis with R/C radio installed
Factory assembled body complete with color scheme

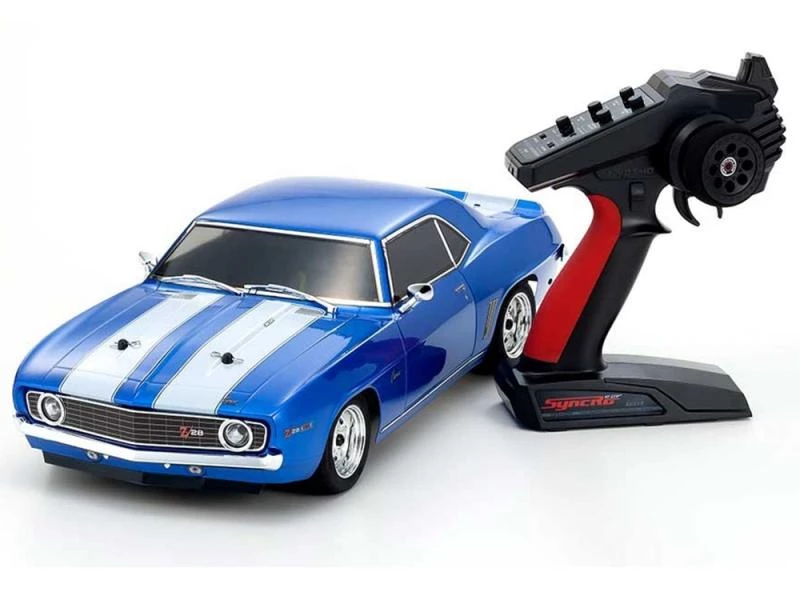

Syncro KT-231P+ transmitter
Installed 60A waterproof electronic speed controller (forward/brake/reverse)
+5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw
Hexagonal wrench
Spanner

Required for Operation

4 x AA batteries for transmitter
Battery for chassis (recommended: 7.2V Ni-MH battery)
Charger for battery for chassis
Tools

Specification

Manufacturer	Kyosho
Part Number	34418T1B
EAN	4548565373932
Motor Type	Brushed
Waterproofing	Water Resistant
Drive	4WD
Surface Type	On-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	On-Road
Skill Level	Skill Level 2
Power Bundles	Power Bundle Required
