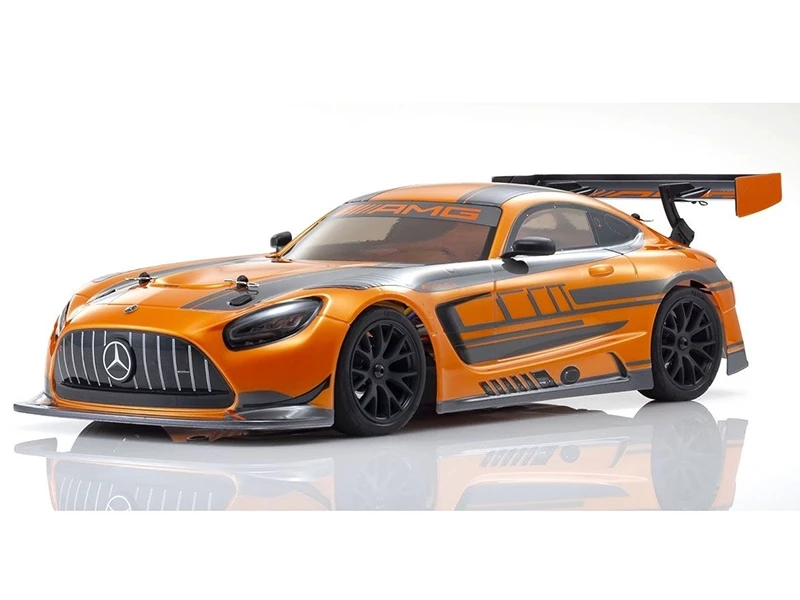

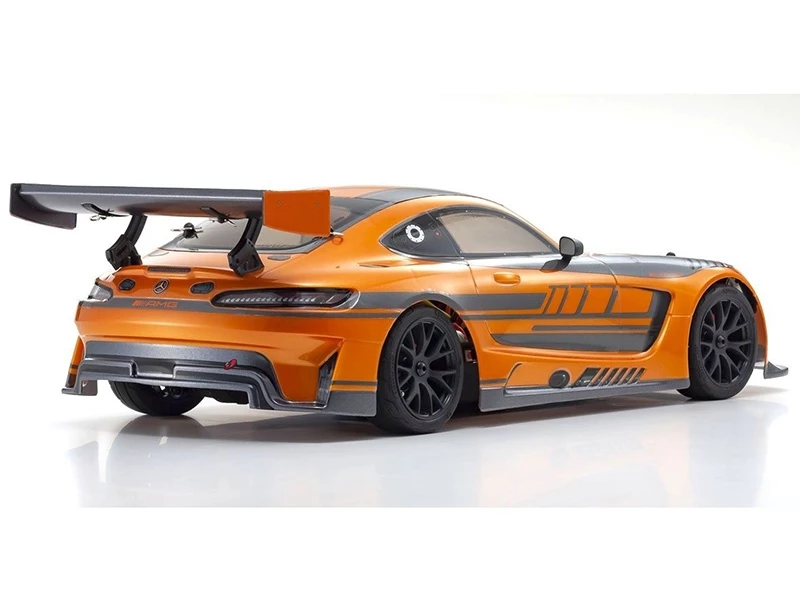

FAZER MK2 Mercedes AMG GT3 Shipments of the 2020 model of the Mercedes AMG GT3 commenced in late 2019 and are expected to compete in major international races including the Japan Super GT. The distinctive powerful aero form of the GT machine is realized even in this 1/10 scale version.

The FAZER Mk2 Readyset was created for the pure enjoyment of R/C car driving. Now available as a chassis kit, owners have the flexibility to add their own body and R/C system. Specifications have been elevated with optional parts such as HD TC center shaft S and TC universal swing shaft L to enhance the unrivaled symmetrical design and front-rear suspension balance of the lightweight chassis for R/C racers to enjoy. While the deckless design looks simple, a reduced number of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces weight and improves impact resistance. With its unique design, the FZ02 chassis embodies features and performance that will appeal to R/C drivers of all levels.

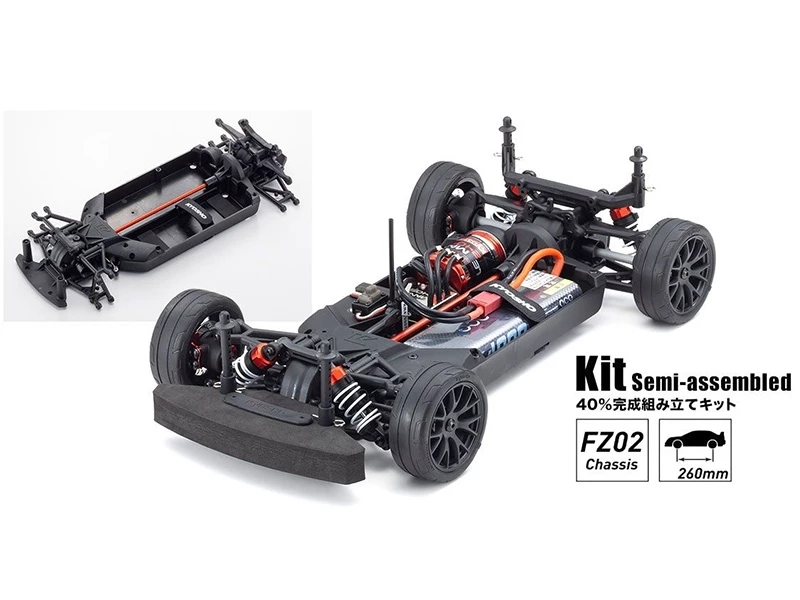

40% pre-assembled (shocks and diff gears are not filled with oil so assembly can be completed to preferred setting). The FZ02’s effective low center of gravity design compliments the high strength and rigidity realized through front & rear stiffeners and rib reinforcement at key sections of the chassis.

Equipped with Front and Rear light buckets compatible with optional 97054 LED Light unit which is sold separately. By installing the LED light unit, improves scale realism for body shell.

TECHNICAL DATA

Length （Body Length） 375mm（464mm）
Width（Body Width） 200mm /190mm（207mm）
Ground clearance 8mm (approx.)
Wheelbase 260mm
Tread（Body width:190mm）F:164mm/R:164mm
Tread（Body width:200mm）F:174mm/R:174mm
Tires F: φ66mm x 25mm/R:φ66mm x 25mm
Gear Ratio 6.54:1
Total storage weight Approx. 1,490g (with 7.4V4000 LiPo)

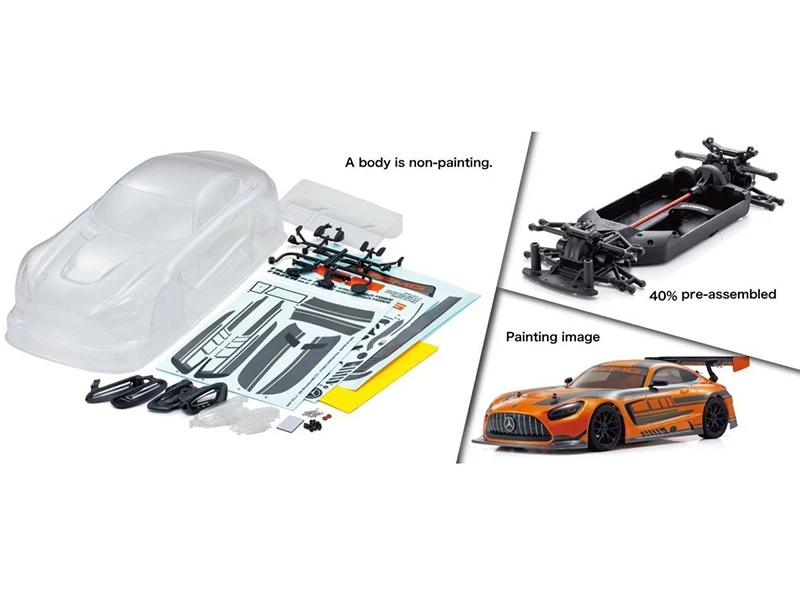

KIT CONTENT

40% pre-assembled chassis
FAW202 TC Universal Swing Shaft S
FAW209 HD TC Center Shaft S
Aluminum Motor Dust Plate
transponder mounting stay
+0mm off-set wheel hub & M4 x 16 Wheel screw（for 190mm width body）
+5mm off-set wheel hub & M4 x 22 Wheel screw（for 200mm width body）
body mounts for various manufacturers bodies
FAT701M TC Tires（M）
Inner Sponge
FAH701BK Wheel
1.5/2.0/2.5mm Hexagonal wrench
3/4/5/5.5/7/8mmSpanner

REQUIREMENT TO RUN

2ch 1 servo R/C system for cars（Receiver size:L45xW28xH22mm or less)
540-550 class motor
ESC compatible with motor used（Size:L36xW32xH23mm or less)
Servo
Battery charger
Battery for chassis compatible with ESC used（SIze:L145xW47xH25mm or less)
4 x AA batteries for transmitter
Damper Oil (35WT/ 400CST Recommended)
Grease（for Ring Gear & Diff)
Pinion Gear

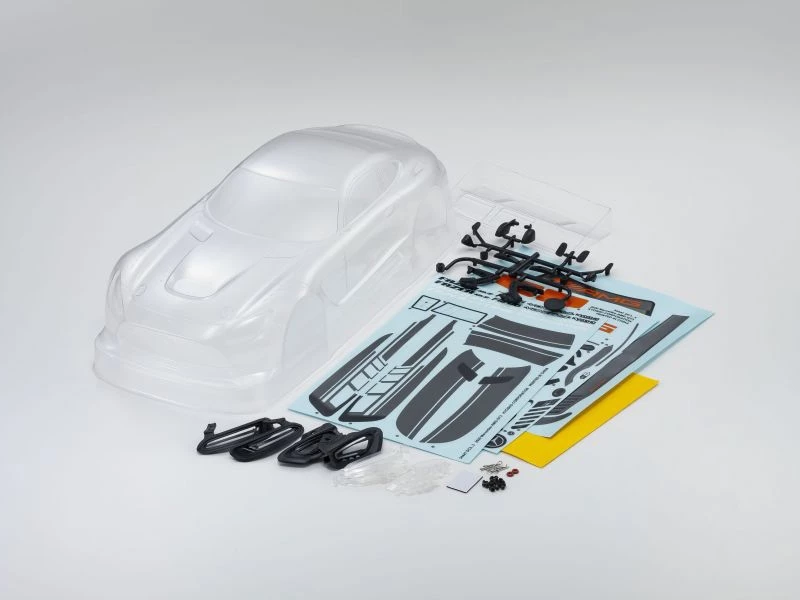

Paint for polycarbonate body
Tools

Specification

Manufacturer	Kyosho
Part Number	34441B
EAN	4548565385676
Motor Type	No Motor Supplied
Drive	4WD
Surface Type	On-Road
Assembly Type	Un-Assembled (Kit)
Scale	1:10
Vehicle	On-Road
Skill Level	Skill Level 4
Power Bundles	Power Bundle Required
