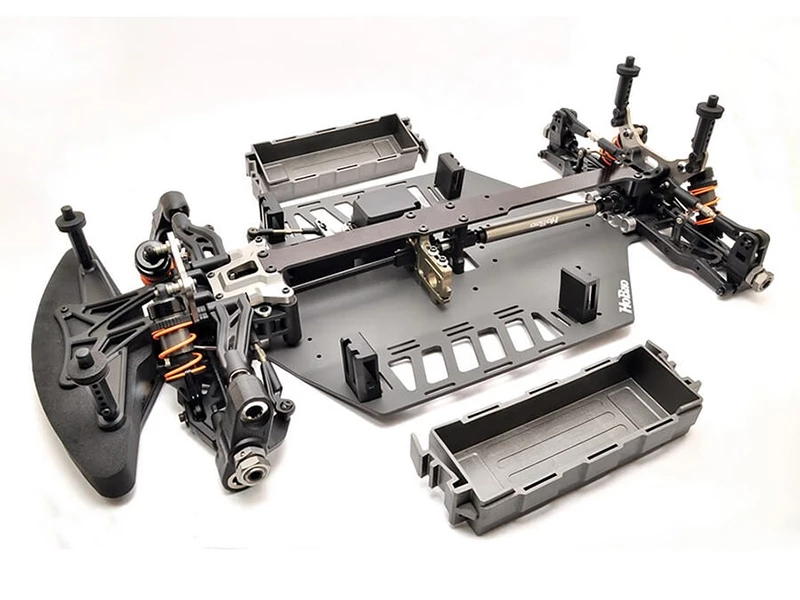

HoBao Extreme VTE2 1/7 On Road Electric Roller

HOBAO EXTREME VTE2 1/7 ON ROAD ELECTRIC ROLLER 80% PRE-ASSEM.
FEATURES

• CNC Alumimum 7075 parts: Turnbuckles, Balls, Pivot Balls, Steering Racks, RR Suspension Mount (0°), Motor Mount and Slider.
• Chassis: 3mm thick hard anodized aluminum with battery tray.
• Optional part HOP-0144 lightweight carbon fiber chassis.
• Drive: 4WD drivetrain, Hardened steel driveshaft, New center driveshafts with aluminum shaft and steel ends
• Differentials: Bevel gear type, Front and Rear, New anti-leakage differential housing, Hardened steel lightweight cups.
• Center Spool: 34T spur gear (MOD 1), 8mm shaft, hardened steel cups.
• fit for 8mm bore pinion gear.
• The largest spur gear can be applied to 48T

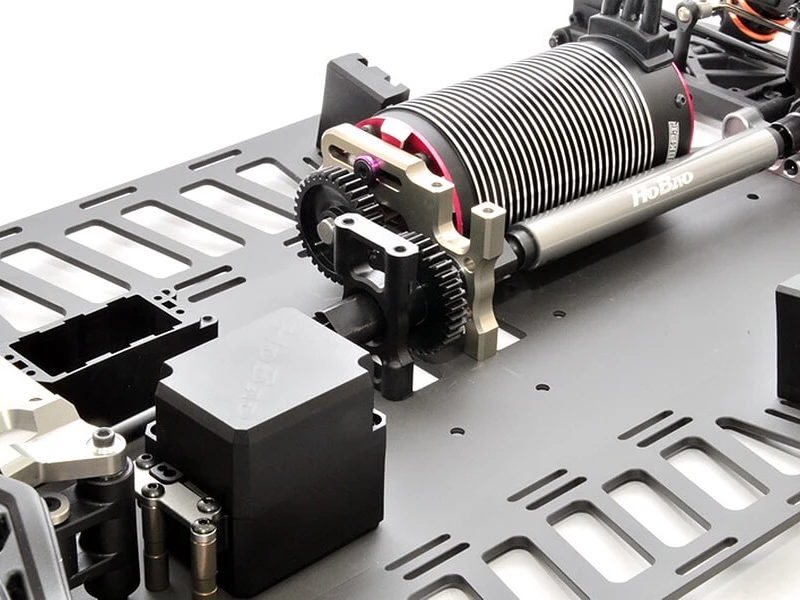

• Motor Mount:CNC aluminum, cam lock style
• Optional part HOP-0141 for O.D 57mm motor.
• Battery Box: Quick release large capacity battery tray with 3 hook and loop straps.
• Battery directly fixed onto the chassis with hook and loop straps is also viable.
• Shocks: Oil-filled 17mm big bore shocks, 4mm diameter shafts.
• Shock Towers: 4mm thick CNC aluminum.
• Ball Bearings: Full set included.

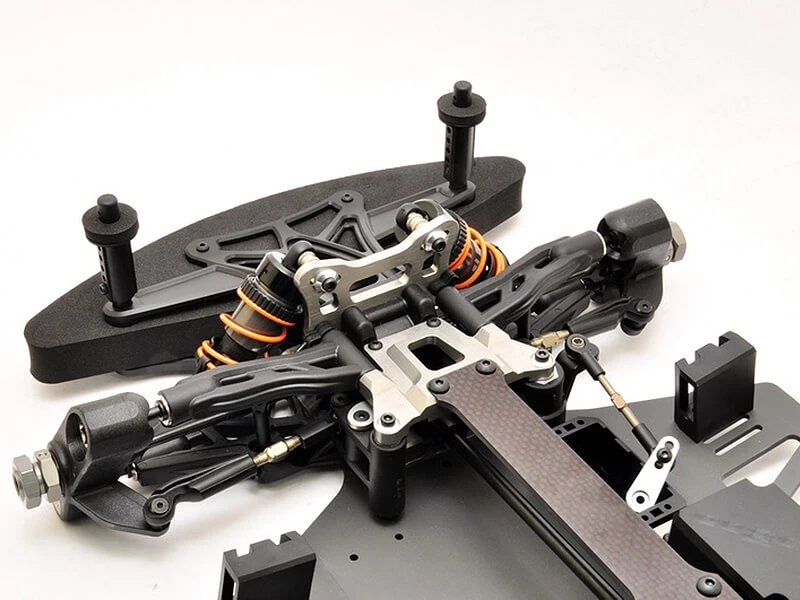

• Suspension: Front and rear sway bars, front PBS, reinforced composite upper arms and lower arms
• Caster: Adjustable
• Camber: Adjustable
• Adjustable toe-in, camber, shock position, and wheelbase.
• CNC Alumimum 7075 turnbuckles, balls, pivot balls, front & rear shock towers, and steering rack.
• Newly designed large capacity receiver box?Multiple options for motor weight distribution.
• Quick release large capacity battery tray with 3 hook and loop straps.
• Fix the battery directly onto the chassis with loop straps is also workable.
• Forward placed receiver box ( extra optional part HOP-0145 is required).
• Front and rear sway bars, front PBS, reinforced composite upper arms and lower arms.
• Motor MountCNC aluminum, cam lock style +Center Spool 34T spur gear (MOD 1), 8mm shaft, hardened steel cups.
• New carbon fiber top brace, New center driveshafts with aluminum shaft and steel ends.

RR SUSPENSION MOUNT ( 0° )

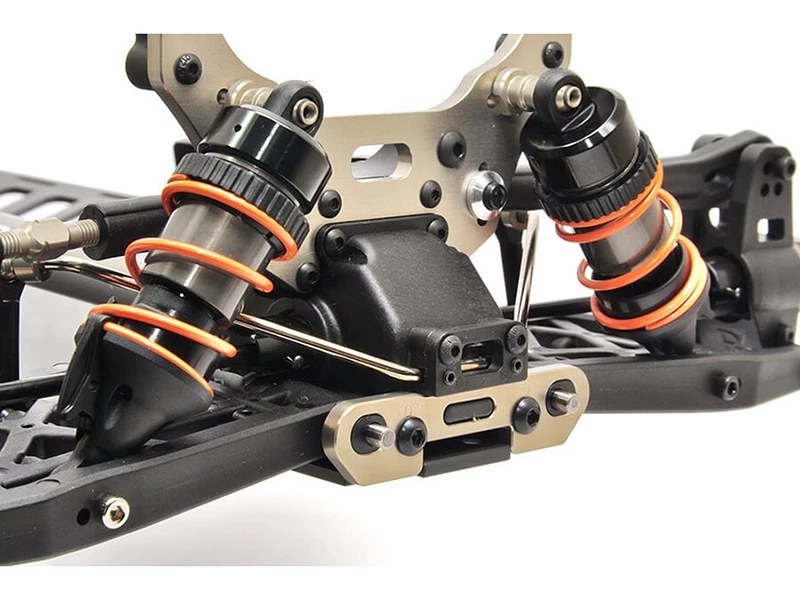

17mm big bore shocks with adjustable threaded bodies.
4mm front and rear hard coating aluminum shock towers.

REQUIRED TO COMPLETE

• 2-Channel Radio/Transmitter Set
• ESC & Motor
• Pinion Gear for Motor
• Tires,Wheels, and Glue for tire
• Body and Paint for body
• High-torque Steering Servo
• LiPo Batteries
• Battery Charger
• Batteries for Transmitter

Specification

Manufacturer	HoBao
Part Number	HB-VTE2
EAN	4711256700342
Motor Type	No Motor Supplied
Drive	4WD
Surface Type	On-Road
Assembly Type	Part Assembled (ARTR)
Scale	1:7
Vehicle	On-Road
Skill Level	Skill Level 4
Power Bundles	Power Bundle Required
