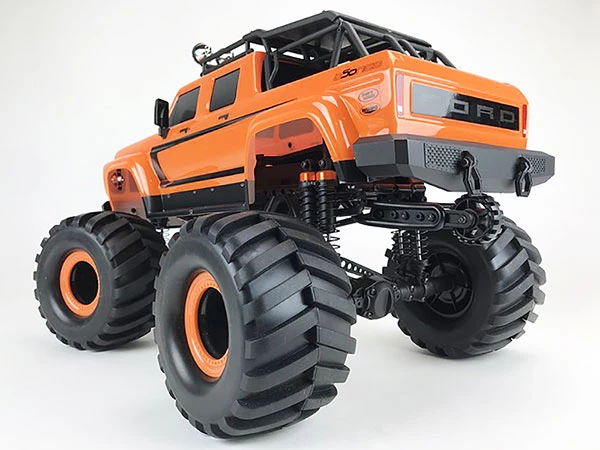

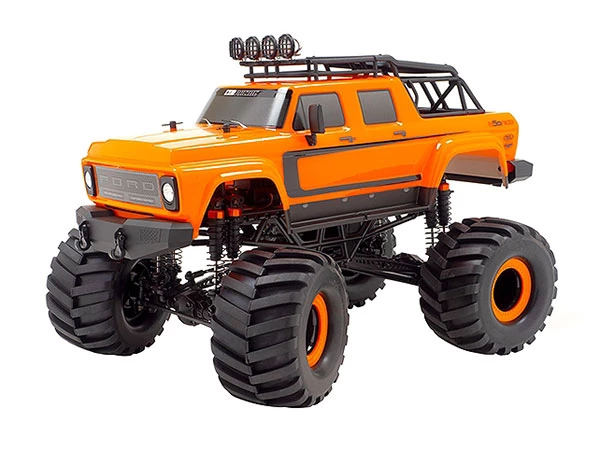

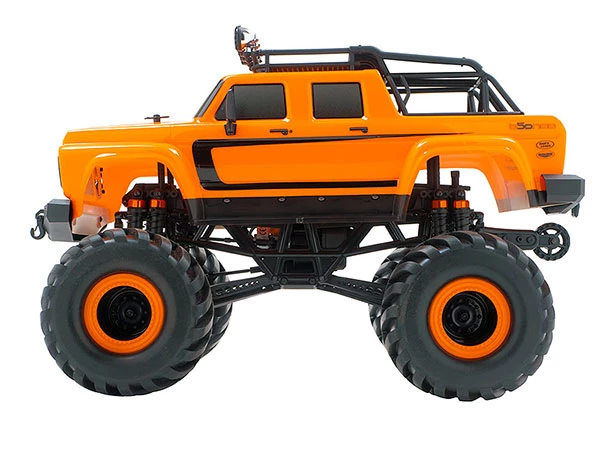

CEN Ford B50 1/10 Solid Axle RTR Truck

This is the CEN Racing B50 4WD 1/10 Ford RTR Monster Truck. Based on a real truck, this is an officially licensed 1979 Ford F600 crew cab front end with a 1979 Bronco rear! The headlights and light bar have built in buckets, and are 3mm LED ready! Wheelie bar included. Hobbywing 40A waterproof ESC & Savox servo are standard. A realistic full roof rack and side mirrors are some of the awesome details and killer innovations.

Features:

ESC -40A WP-1040-Brushed (Powered by HOBBYWING):

• Water-proof and dust-proof for all weather
• Built-In Capacitor Module
• Automatic throttle range calibration
• Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
• Over-Heat protection and throttle signal loss protection
• Easily programmed with jumpers

Motor -RS-550 High Torque Motor (Powered) By Mabuchi Motor

Servo -12Kg Servo (O.E.M. by Savox):

• 4.8V 0.26 sec/60deg, 10.0 kg-cm
• 6.0V 0.23 sec/60deg, 12.0 kg-cm
• 25T Horn Gear Spline

Radio System – Pistol-Grip Mod-3S 3 Channel Transmitter:

• Digital Trimming
• Steering Dual-Rate (ST D/R) Adjustment
• End Point Adjustment (EPA)
• Build in Failsafe
• Power Alarm Transmitter Model #: 82190 Frequencies: 2.4GHz

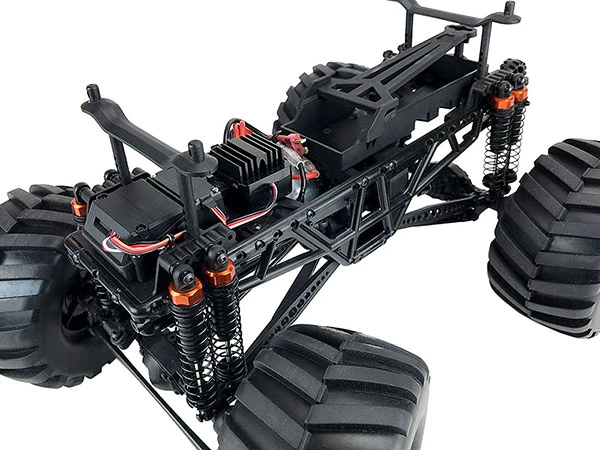

Chassis:

• DVP (Dual Vertical Plate) Chassis Design
• Sealed Receiver Compartment
• Easy Access/Quick Release Battery Tray
• Battery Tray Size 146x50x25mm
• Adjustable Wheelie Bar Ready (w/Ball Bearing)
• Full Precision Ball Bearing Support
• Adjustable Turnbuckles -Harden Steel Steering Drag Link
• Fully Equipped with Allen Hex Screws
• Adjustable Body Post
• High Torque Servo Saver
• Optional 4-Wheel Steering Design

Suspension:

• Sway Bar and Wheelie Bar Included

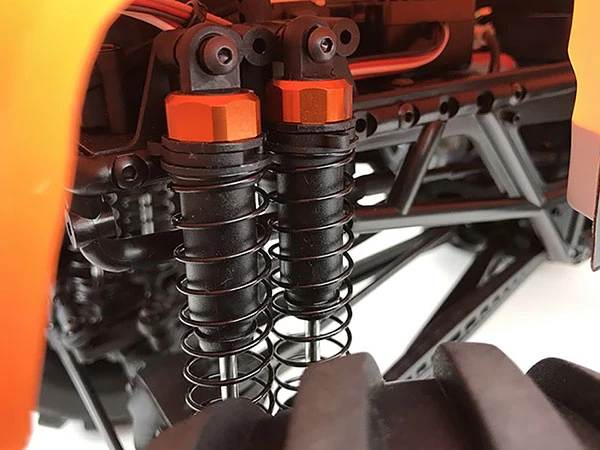

• 8 Big Bore Oil Filled Coil Over Shocks
• Aluminum Anodized Shock Caps -10mm over size shock body with 3mm hardened steel polished shaft
• Stiff Hard Racing Spring
• Fixed Wheelbase Ride Height Adjustable with pre-load
• Realistic 4-Link Suspension design

Drivetrain:

• Slipper Drive System
• 4 Wheel Drive
• Center Shaft Drive Train for more power transferred to the wheels
• Hight Efficient Transmission System

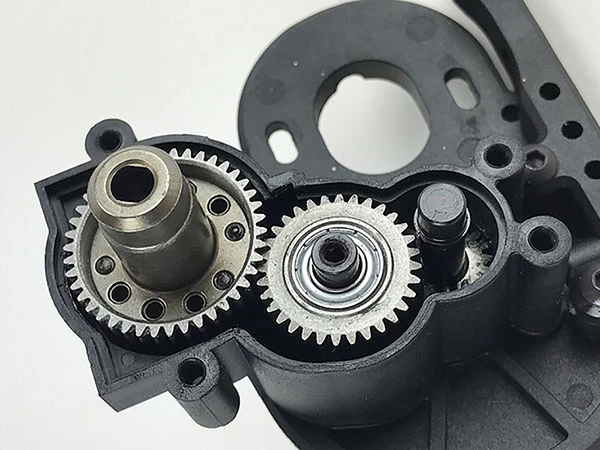

• Wide Range Easy Changeable Gear Box Design
• Sealed transmission eliminates dirt and dust substances to get in

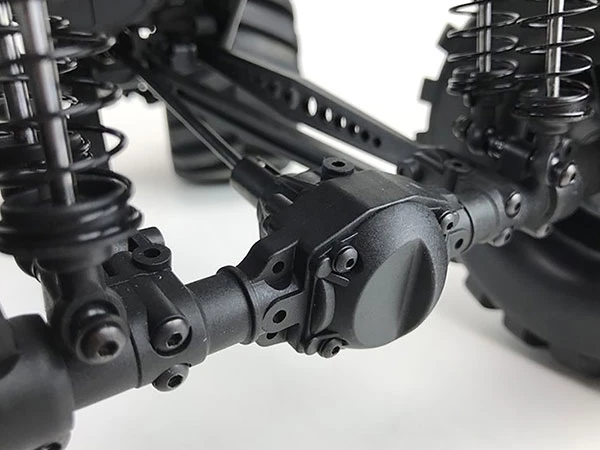

• Sealed Axle housing
• 5mm Hardened Steel Axle shaft
• Differential Center Locker Front/Rear Planetary Gear Type
• Ring & Pinion 30/15T

Specs:

Length: 16inch (405mm)
Width: 12.20inch (310mm)
Wheelbase: 10.82inch (275mm)
Ground Clearance: 3.14inch (80mm)
Weight: 4.85 lb. 2.2kg
Deep Dish 2.2-inch (55mm) Monster Truck Wheels, V-Pattern Tire 55x136x74mm

Specification

Manufacturer	CEN
Part Number	CEN8960
EAN	471787308960
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	Monster Truck
Skill Level	Skill Level 2
Power Bundles	Power Bundle Required
