The New Alpha Dog

Carisma Scale Adventure are proud to announce the release of the new SCA-1E Coyote 2.1. Our most successful rig ever, has evolved to becomes our best performing rig out of the box too! We’ve kept the look that inspired thousands of owners globally, we’ve kept the same affordable price point, making it one of the best value rigs on the market, and we took the Spec and Performance to a whole new level. The rig that started our own Scale Adventure as a company, we now take to the next stage of it’s own evolution.

Upgrades & Enhancements

Now utilizing the Gen 2 layout as standard, with CMS Mount offering a forward weight bias to aid crawling, with the battery pack and Steering Servo up front and ready for action!

We also addressed the issue of Torque Twist, something inherent in all shaft driven rigs. CSA have developed a new ATT (Anti Torque Twist Transmission) that counteracts and reduces the effects of Torque Twist, by ensuring the front and rear centre driveline spin in opposite directions and flipping the rear diff. This creates a counter rotational force in the central driveline that significantly reduces torque twist and enhances the available traction where you need it most…at the wheels. The rig runs flatter even at full throttle, and the geometry is more stable and predictable when Rock Crawling

Increased Control & Torque

Alongside our LiPo friendly ARC-1 Electronic Speed Controller, we have also lowered the gear ratio to 5.92:1 giving a smoother low RPM range and greater control. To compliment this we have introduced a new Sealed Can 17T 5 Pole Motor, with the additional magnetic force over a 3-pole motor offering enhanced Torque and Throttle Finesse when Crawling. But it’s not all about Crawling, the 17T motor still has the ability to still produce wheel speed when required for trail running and being a sealed can, the motor will be more weather resistant and require minimal maintenance between runs.

True 1.9 symmetrical beadlock wheels will allow you to add additional weight to the wheels if you want to adjust the weight boas further, and our own soft compound ATAT (All Terrain Adventure Tyres) offer great all round performance on the trail or when crawling.

Enhanced Body & Finish

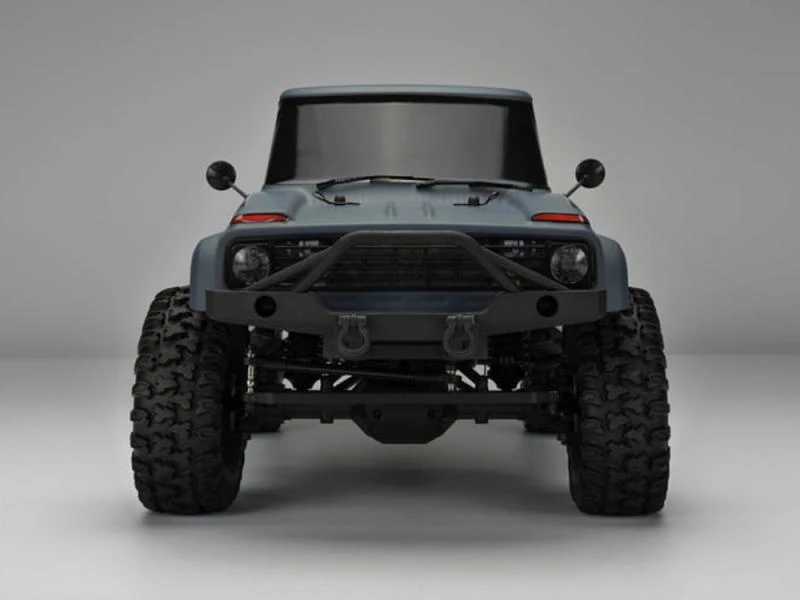

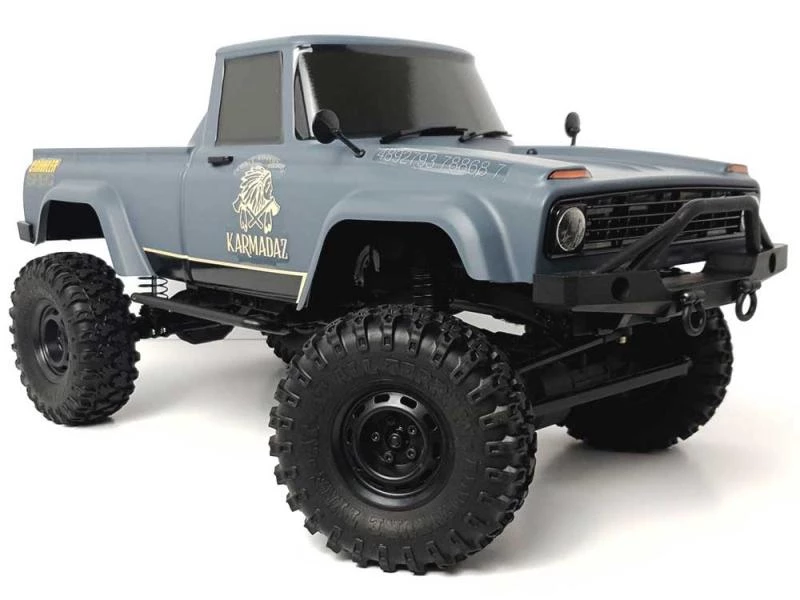

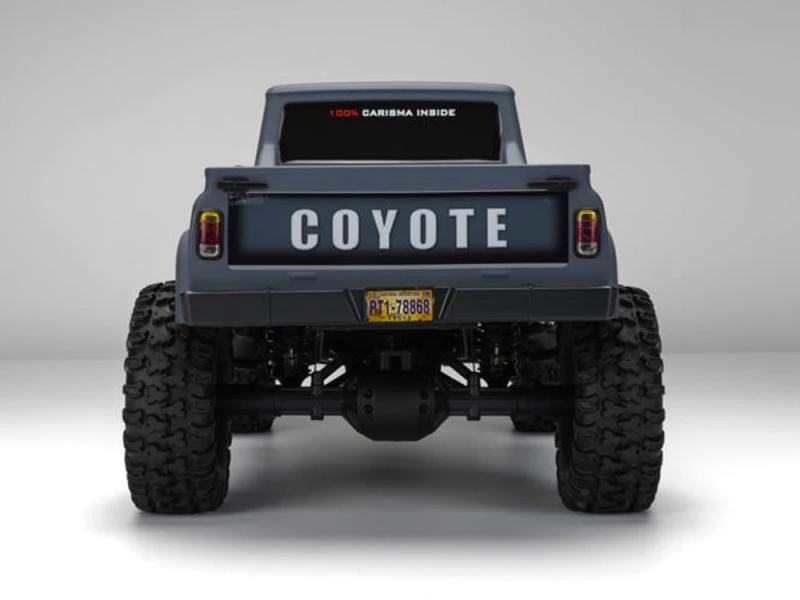

The Coyote body has become one of the most iconic in the scale scene and we didn’t want to change things too much. We’ve screen printed the shell in a new Matt dark Gray finish and included a new 2020 Karmadaz logo and an additional decal sheet allowing you to fully customize the look of the body to suit your own taste. Keep it minimal and clean looking or make it look Competition Ready., you decide the final look. The chrome is gone and instead we have used black Injection Moulded Scale Details like Grille, Bumpers, Wing Mirrors and Wipers. As with the original, the body is LED Ready and accepts our own or third part LED Kits.

Tried & Trusted Electrics

Our very own CTX-8000 2.4GHz radio system is supplied with the RTR rig. Featuring Steering Rate adjustment, Steering and Throttle Trims, Channel Reversing, End Point Adjustment and F.H.S.S (Frequency Hopping Spread Spectrum) Technology for glitch free use, eliminating cross channel interference and offering precise and responsive control at all times. We also include a 1400mah NiMH battery and safe 5V USB Charger to get you started on your adventure, although the ARC-1 ESC is also LiPO friendly offering you a clear future upgrade path.

Features

CMS Mount For Improved Weight Bias
ATT (Anti Torque Twist) Transmission
New Lower 14,83 (5.92:1) Gear Ratio
Highly Detailed 50’s Inspired Body
Optional Winch Ready Front Bumper
Optional Rear Bumper With Tow Hook
Soft Compound ATAT All Terrain Tyres
Front CVD’s & Robust Steel Driveline
1.9 Beadlock Wheels & Foam Inserts
9kg High Torque Metal Geared Servo
LiPo Safe ARC-1 ESC w Crawler Mode
New 5 Pole Brushed Crawler Motor

Dimensions

Wheelbase: 285mm
Length: 400mm
Width: 230mm
Clearance: 75mm

Required for Use:

7.2v NiMH battery or 7.4v LiPo battey
Suitable battery charger
x4 AA’s for Transmitter

Specification

Manufacturer	Carisma Scale Adventure
Part Number	CA78868
EAN	4892793788687
Motor Type	Brushed
Waterproofing	Waterproof
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	Rock Crawler
Skill Level	Skill Level 3
Power Bundles	Power Bundle Required
