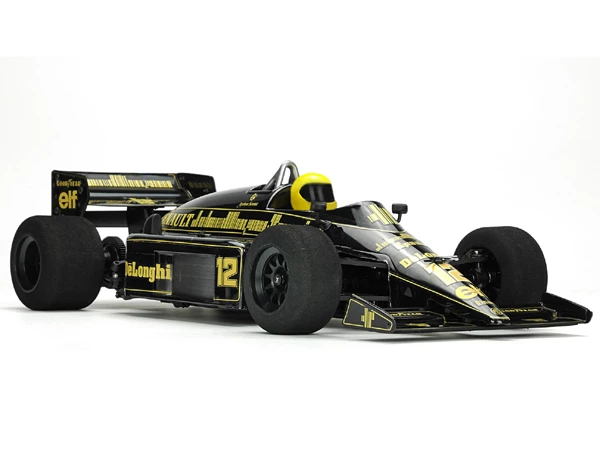

Carisma Racing CRF-1 Classic Team Lotus Type 98T 1/10th 2WD *Kit
(*Requires Wheels, Tires, All Electrics, Paint, Threadlock and Tools.)

98T The Lotus Legend Reborn
The history behind our latest Carisma Racing release is ingrained in Formula One folklore. The Lotus 98T was a truly innovative F1 car designed for Team Lotus by Gérard Ducarouge and Martin Ogilvie. It was raced by the legendary Brazilian Ayrton Senna, and his teammate, Scottish driver Johnny Dumfries in the 1986 Formula One World Championships.
The chassis featured a low Carbon fibre, Kevlar and Alloy monocoque design, a Renault EF15B turbocharged V6 engine and a six-speed, manual Hewland racing gearbox. There are unconfirmed reports that the Renault EF15B produced in excess of 1000 HP at unrestricted boost pressure, making it one of the most powerful and iconic engines ever used in Formula 1. Other innovations the 98T brought to F1 included a two-stage ride height adjustment, water injection and an advanced micro computer controlled fuel injection, that for its day was revolutionary. The car fittingly had its debut at the 1986 Brazilian Grand Prix, when Senna promptly took second place. Over the season it attained 8 pole positions, 8 podium positions and 2 wins. The 98T was the last Lotus car in history to carry John Player’s famous black and gold colours. On many levels this car truly epitomises 1980’s F1, and Carisma Racings latest release a fitting tribute to both the vehicle itself and the driving legends of that era of motorsport.

The CRF-1 – Race Winning Innovation
The CRF-1 has a brand new, Innovative 2WD race chassis. It was designed and tested in Europe, both taking the TQ and winning outright the first BRCA F1 National of the 2019-2020 season. This platform has been designed from the ground up to do just one thing…win!

The body is licensed via Classic Team Lotus. this not only a fun and icon RC F1 car to own, its also a collectable snapshot of automotive history. We could have built a F1 car that looked great, but that ultimately then didn’t deliver the outright performance racers crave in parity. Instead we developed the CRF-1 platform to be as adjustable as possible, to cater for every track/surface type and driving style. The components and materials used represent the finest and most durable for this type of racing. The technical specifications below may seem a long and in-depth list, but one that’s very necessary to compete at the very highest level, and be able to fine-tune the set up and chassis geometry to win races.

Main Technical Specifications

Full Carbon Fibre Race Chassis, Aircraft Grade Alloy and Composite Components.
Unique front bulkhead design for multiple set ups and ease of on-the-fly tuning.
Rear pivot pod with innovative side shock sliders and optional Dual-Stage Suspension.
Every aspect of the geometry is fully adjustable to dial in any track condition.
Real world tested. No theoretical, No simulation, Race proven.

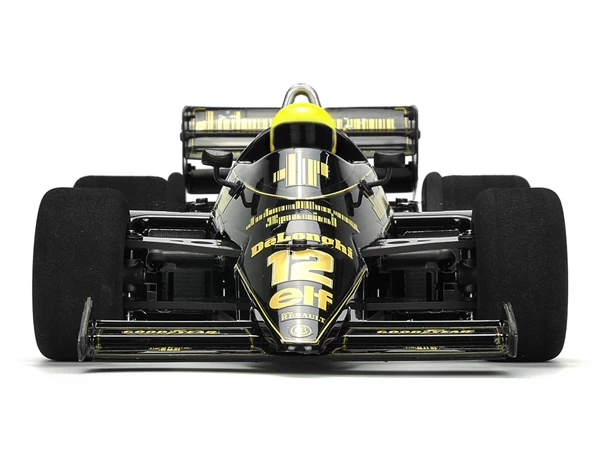

The 98T body is race spec Polycarbonate, supplied clear (but pre-cut).
Includes full detailed decal sheets, including Senna helmet detailing.

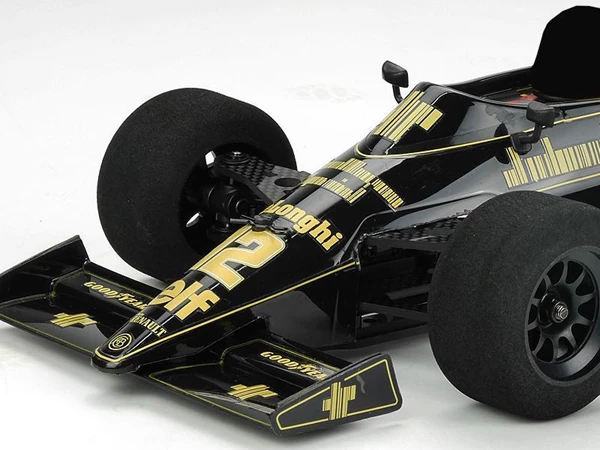

Front End Innovations

Adjustable Castor 0-14 deg by changing 1 shim
Adjustable Camber -3 to (as much positive as you want) by adding shims
Adjustable Ride Height by changing shims under front end assembly
Metal Pivot balls for increased durability and smooth movement
Aluminium upper arm mounts
Built in reactive castor (5 degrees) for increased steering
Durable steering blocks with 2 steering link mounting positions
Adjustable roll centre by adding shims under top arms
Extra long front wheel axles to allow a multitude of wheels/tyres to fit
Easily Adjustable front width
Industry STD front springs on the king pins
Adjustable Ackermann settings – 3 positions from the kit.
Front brace helps support the front end and increases front to rear chassis stiffness
M4 screws used to mount the front end assembly into sturdy aluminium mounts for maximum durability
Castor mount supports the front end to reduce chances of tweak on impacts
Dual Ballraced single pivot aluminium steering bellcrank
2 Wheelbase settings using the same parts
Steering lock stops
1 piece stiff lower suspension arm – more steering and less chance of tweak
Accepts all ETS allowed wings and others

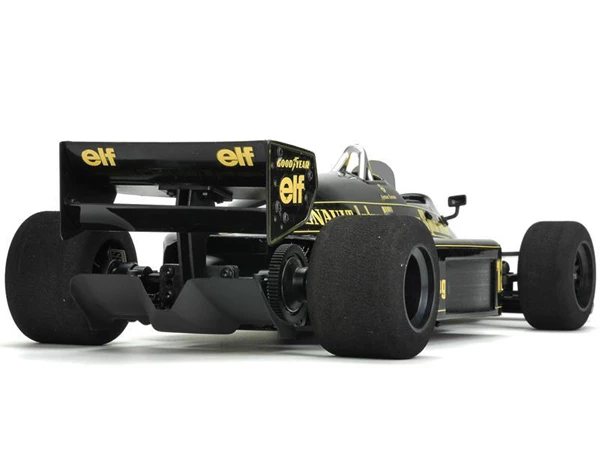

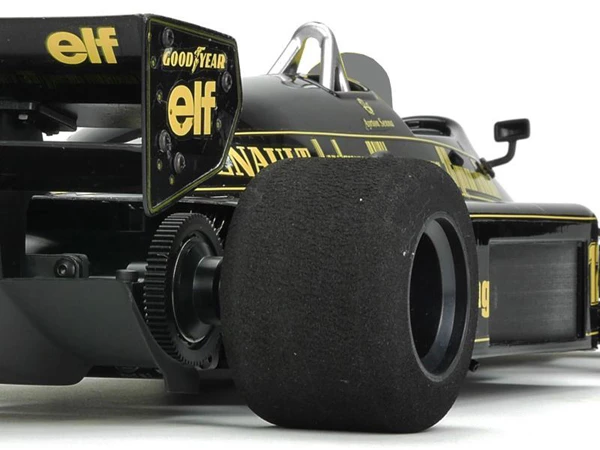

Rear End Innovations

Increased centre pivot angles allow huge pod movement – huge advantage on bumpy tracks and curb riding.
Lightweight 2 piece aluminium bulkheads
Ride height adjustable via shims under the aluminium bearing holders.
Smooth durable ball differential with thrust race built in
Accepts all 14mm hex wheels
4 screw option for holding the motor in place, extra durability if required.
Increased motor cooling due to the open pod design
Carbon Rear wing mount with multiple height positions for fine tuning the handling to the wing you choose.
Carbon brace under rear axle – increase durability
Accepts all ETS allowed wings and others

Side Damper Tube Shock Innovations

Tunable rear pod side angles – reduce angle with shims / accepts front suspension springs for an industry first dual stage suspension.
Side Damper tubes tunable with different oils/greases and have coil over springs with adjustable threaded collars to adjust tweak settings.
Accepts 1/12th scale centre shock springs

Centre Shock Innovations

Large stroke centre shock – better over bumpy tracks
Oil filled coil over spring design

The Race Is On…
Upon public launch these Kits will become a much sought after collectors items. We are proud to have worked with Classic Team Lotus on this project and hope to work with them again in the near future. This and the Pagadi Zonda R we recently released are the first of a series of products based on this new chassis design, and we hope that they add a fast selling new addition to your product portfolio’s. We will be advertising these products heavily on our own social media channels, and have produced a very effective video for each. A media pack will be made available to only those that place pre-orders, keeping the CRF-1 F1 Lotus and the CRF-GT Zonda R very much as exclusive items, sold on a first come, first served basis.

Specification

Manufacturer	Carisma Racing
Part Number	CA79968
EAN
Drive	2WD
Surface Type	On-Road
Assembly Type	Un-Assembled (Kit)
Scale	1:10
Vehicle	F1
Skill Level	Skill Level 4
Motor Type	No Motor Supplied
