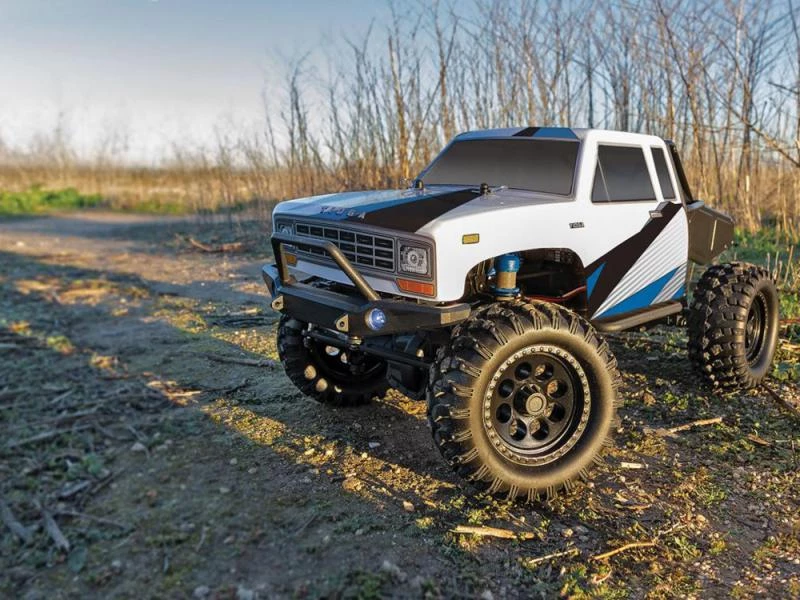

Associated CR12 Tioga Trail Truck RTR

The CR12 Tioga Trail Truck may be small in size, but it’s packed full of features. This 4×4 rig comes Ready-To-Run with Reedy Power electronics. No need to prep or build your rig; just charge it and you’re ready to hit the trails!

Designed not only for scale looks with realistic wheels, tires and body, the CR12 is built for performance as well. The steel ladder frame chassis provides the perfect backbone for this rugged rig. The 4-link suspension, threaded shocks, and soft rubber tires give the grip and performance needed to climb over the roughest terrain. Transferring power to the rocks is a compact 3-gear transmission, plastic low-friction slider-type drive shafts, front steel CVA axles, and metal-shield ball bearings.

Features

• Molded rear cage with hinged body mount
• Off road style front bumper with 2-piece LED
• Metal front CVA and rear solid axle shafts with 12mm hex adapters
• Black anodized aluminum battery/radio tray with hook-and-loop hold down strap
• Black scale 1.9 wheels with soft compound off road tires
• Metal 4-link front and rear suspension
• Fully adjustable, threaded, fluid-filled shocks
• Chassis-mounted steering (CMS) servo
• 13.98:1 ratio 3-gear transmission with integrated motor mount
• Plastic low-friction slider-type drive shafts
• 16-piece metal shield ball bearing set
• 2.4GHz XP transmitter and receiver
• Water-resistant Reedy Power speed control with high-current T-plug connector
• Reedy brushed 380 motor
• 850mah Li-Ion 7.4V 2-cell battery and charger

Specifications

• Power Source: Electric
• Terrain: Off-Road
• Body Style: Truck
• Scale Size: 1:12 Scale
• Assembly Level: Ready-To-Run*
• Length: 395mm (15.55in)
• Width: 201mm (7.91in)
• Wheelbase: 225mm (8.86in)
• Weight: 1218g (2.69lbs)
• Internal Gear Ratio: 13.98:1
• Drive: 4WD

* This vehicle is fully assembled and ready to run right out of the box. Some models may require a battery and/or charger.

Specification

Manufacturer	Associated
Part Number	AS40006
EAN	784695400061
Skill Level	Skill Level 1
Scale	1:12
Assembly Type	Assembled (RTR)
Surface Type	Off-Road
Drive	4WD
Motor Type	Brushed
Vehicle	Rock Crawler
Power Bundles	No Bundle Required
