The Fastest ARRMA 1/10 Scale 4×4 Yet! Speed Bashing at Its Best

ARRMA takes its 4X4 3S BLX speed bashing platform to the next level with the VORTEKS Stadium Truck RTR. It’s the fastest, most advanced ARRMA 1/10 scale 4X4 model yet, and the first to include the benefits of Spektrum Smart electronics and AVC.

ARRMA has taken its 4X4 3S BLX speed bashing platform to the next level with the VORTEKS Stadium Truck. This is the fastest and most technically advanced 1/10 scale 4X4 vehicle in the ARRMA lineup, and it’s engineered to deliver astonishing speed, control and durability – at an incredibly affordable price.

Overview

With the installed, 2S or 3S compatible Spektrum™ Firma™ 3200Kv brushless motor, the VORTEKS™ is fast right out of the box. Using a 3S LiPo battery and an optional pinion gear, it easily becomes the first ARRMA® 4X4 3S BLX model capable of 60 mph and more!

The proven tough ARRMA® 4X4 platform lets you bash at high speeds in almost any environment – off-road, on dirt and grass, on parking lots and over paved and asphalt surfaces. Its durability comes from a strong composite chassis featuring extended height dirt defenders, oil-filled shocks with silicone O-rings, metal geared differentials and more. Rugged bumpers and high-traction dBoots® Katar™ tyres mounted on tough, gun-metal colored wheels add to its unstoppable performance. The VORTEKS™ 4X4 3S BLX also includes a sleek, new stadium truck body with tough, injection-moulded wing and protective roof skids.

ARRMA® adds the security of advanced Spektrum™ electronics to the VORTEKS™ Stadium Truck’s speed and toughness to create a totally exhilarating bashing experience. With its included DX3 DSMR® 2.4GHz radio system, SR6200A receiver and Firma™ 100A ESC, this is the first ARRMA® 1/10 scale 4X4 model to provide the benefits of AVC® (Active Vehicle Control®) and Smart technology straight out of the box.

With the AVC® system’s on-demand traction control, you can dial-in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt. When you don’t want the extra traction, just dial back the stability. The DX3 radio’s AVC® system works behind the scenes, making hundreds of minute steering and throttle adjustments per second to keep the VORTEKS™ Stadium Truck precisely on the line you want to hold.

Download the optional Spektrum™ Dashboard™ app to your mobile device – it’s available free from the iPhone App Store and Google Play – to take full advantage of the Smart electronics’ telemetry capabilities. Once you connect your mobile device wirelessly via Bluetooth to the VORTEKS™ Stadium Truck’s DX3 transmitter, you can use it to view top speed, battery voltage and other essential data in real time (requires an optional BT2000 Bluetooth Module, available separately).

The ARRMA® VORTEKS™ 4X4 3S BLX Stadium Truck RTR represents the highest level of speed and technology found yet in the proven tough ARRMA® 4X4 platform. If you’re a basher who wants the best – and who appreciates outstanding value – it’s all right here.

Features

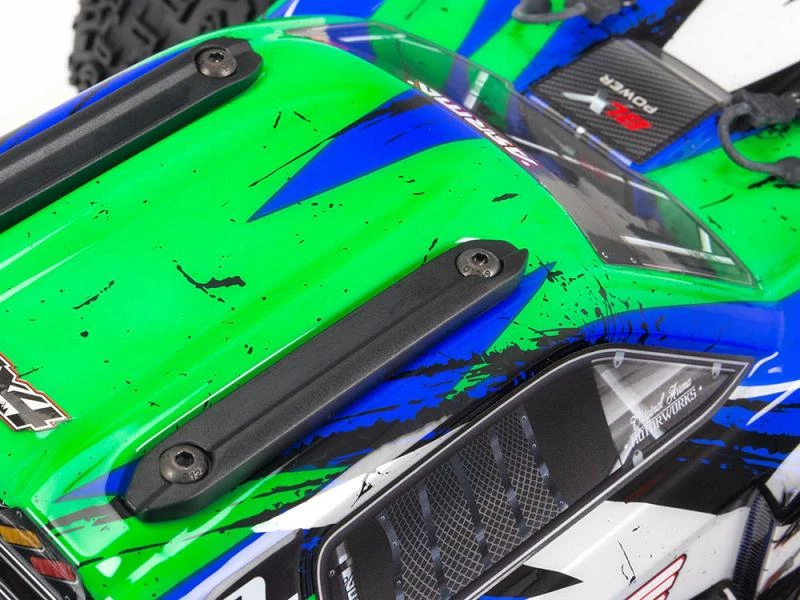

Stadium truck body with tough, injection moulded wing and protective roof skids
Adjustable body mounts

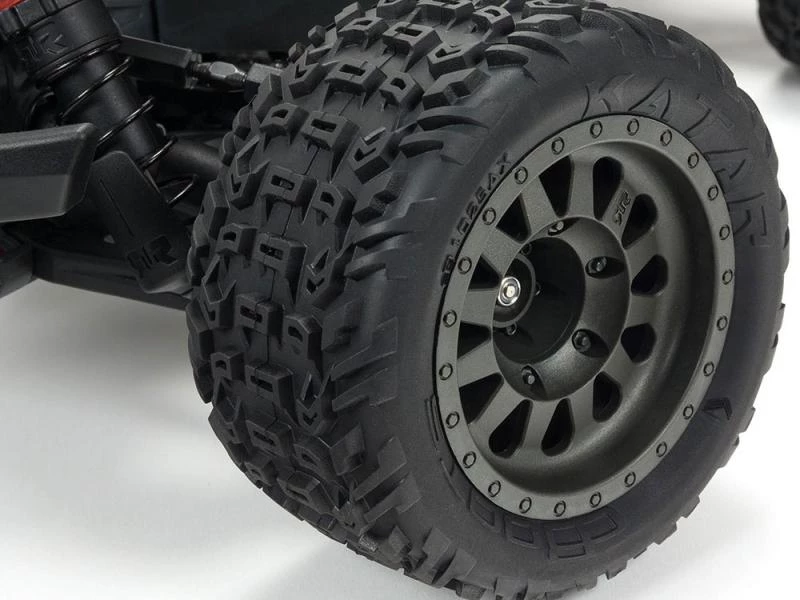

High-traction, vented dBoots® Katar™ multi-terrain tyres mounted to tough, gun-metal color wheels

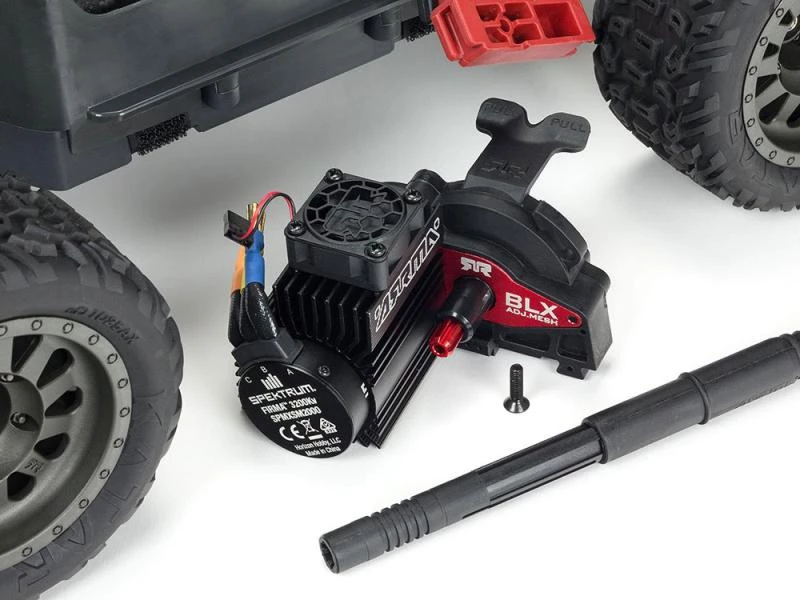

Spektrum™ 3660 3200Kv brushless motor with ARRMA® heatsink and cooling fan and Safe D pinion
Spektrum™ Firma™ 100A Smart ESC
Spektrum™ 2.4GHz DX3 transmitter and SR6200A receiver Smart radio system with AVC® (Active Vehicle Control®)
Spektrum™ SPMS651 metal-geared servo

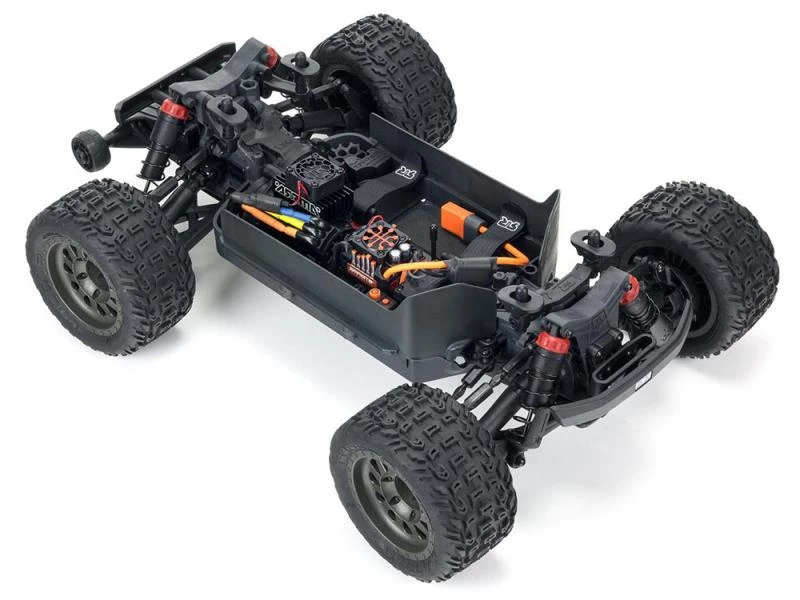

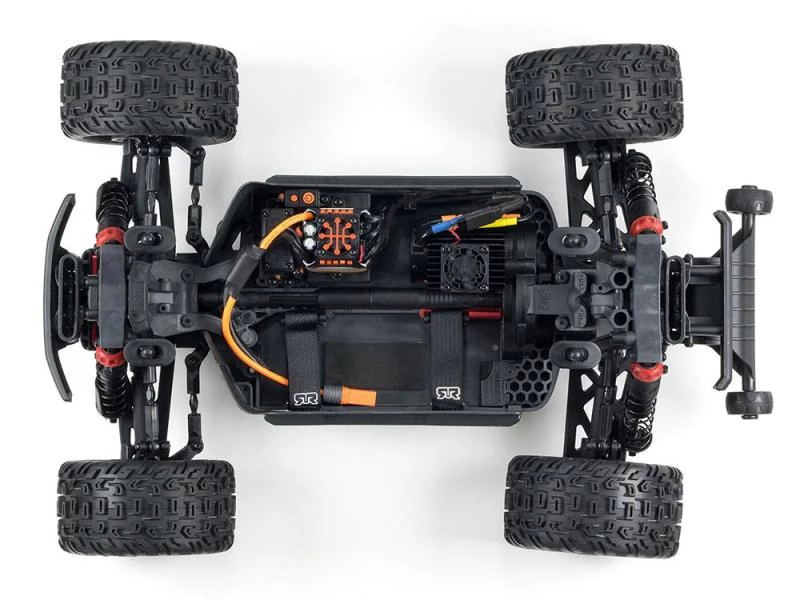

Strong composite chassis with extended height dirt defenders
Easy-access modular design
Adjustable turnbuckles
Steering system with stone clearance
Adjustable ride height
Wheelie bar
Rubber shielded bearings throughout
Durable 37T 1.35 module metal differential gears and silicone O-rings
Castellated slipper pad and sliding gear mesh
Plastic locknut for slipper
2-Year limited warranty; see website support for details.
Double wishbone suspension front and rear
Oil-filled shocks with silicone O-rings

In The Box

(1) ARRMA VORTEKS 4X4 3S BLX 1/10 Scale 4WD Electric Stadium Truck RTR
(1) Spektrum Firma 100A Smart Waterproof ESC
(1) Spektrum Firma 3660 3200Kv Brushless Motor
(1) Spektrum 2.4GHz DX3 Smart DSMR 3-Channel Transmitter
(1) Spektrum SR6200A AVC Receiver
(1) Spektrum SPMS651 7kg Waterproof Metal-Geared Digital Servo
(1) 23T Spline servo saver
(1) Product Manual

Needed to Complete

2S or 3S Hardcase LiPo Battery (Maximum battery dimensions 6.14×2.01×1.89 in (156x51x48mm). Minimum battery specs 5000mAh 50C)
Compatible Charger
(4) AA Batteries
LiPo Safe Charging Bag

Full Specs

Approximate Assembly Time: No assembly required
Battery Recommendations: 2S or 3S Lipo within dimensions 156 x 51 x 48mm
Ball Bearings: Full set, rubber shielded
Body: Painted, decalled and trimmed
Brakes: Integral with ESC
Chassis: Molded Composite
Completion Level: Ready-To-Run
Differential: 2 Gear Diffs
Drivetrain: 4WD
Final Drive Ratio: 9.03
Power Type: Electric
Gear Pitch: 0.8m
Internal Gear Ratio: 2.85
Motor Type: Brushless – Sensorless
Pinion: 18T
Product Height: 6.42″ (163 mm)
Product Length: 18.5″ (470 mm)
Product Weight: 6.49 lbs (2.95kg)
Product Width: 13.31″ (338 mm)
Radio: Included
Receiver: Included
Scale: 1/10
Servos: Included
Shock Type: Oil-Filled, Coil-Over Springs
Speed Control: Included
Spur Gear: 57T
Suspension: Independent
Vehicle Type: Stadium Truck
Wheelbase: 11.3″ (287 mm)

Specification

Manufacturer	Arrma
Part Number	C-ARA4305V3BT3
EAN	5052127043816
Motor Type	Brushless
Waterproofing	Waterproof
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	Truggy
Skill Level	Skill Level 4
Power Bundles	Power Bundle Required
