Race-ready with high-end upgrades

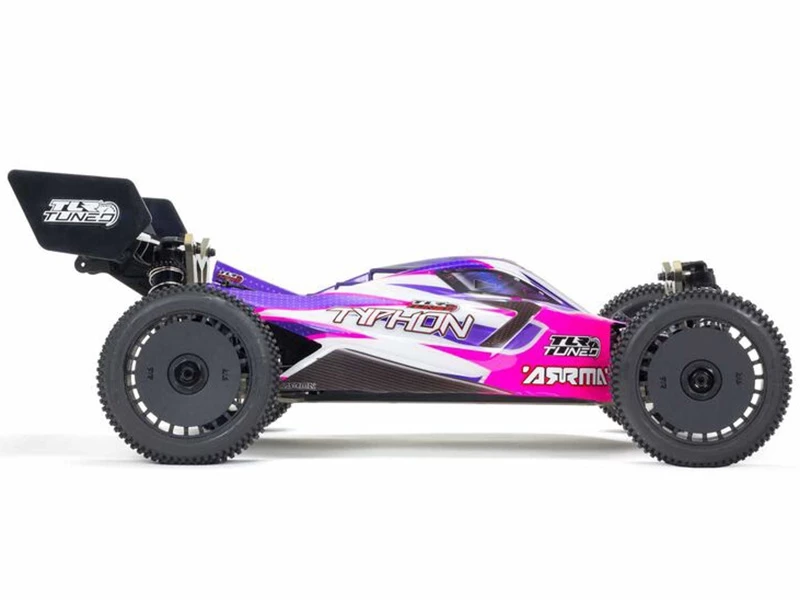

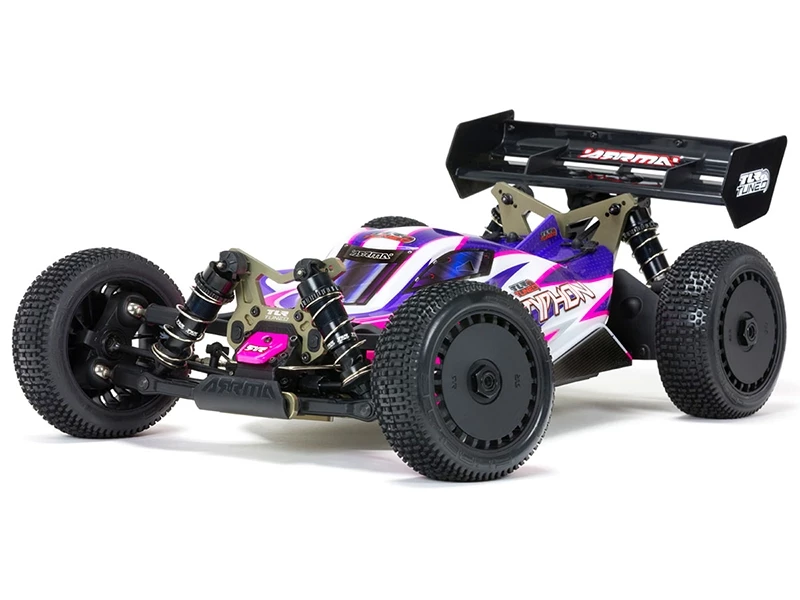

Loaded with high-end parts for improved strength, handling, and long-term durability, the 1/8 scale ARRMA® TLR® Tuned TYPHON™ 4WD Race Buggy Roller provides bashers with the perfect platform for entering competitive racing and experimenting with their chassis to achieve the best performance.

The large number of TLR® Tuned parts and the factory-finished body with bold racing color scheme immediately set this model apart from its ready-to-run TYPHON™ 6S BLX 4WD Speed Buggy brother. The TLR® Tuned TYPHON™ 4WD Race Buggy Roller is the ultimate ARRMA® 1/8 scale buggy straight out of the box, primed and ready to hit the racetrack — and still tough enough to handle off-road bashing. Just add your choice of 4S or 6S brushless power system and the TLR® Tuned TYPHON™ will blast over rough terrain with ease.

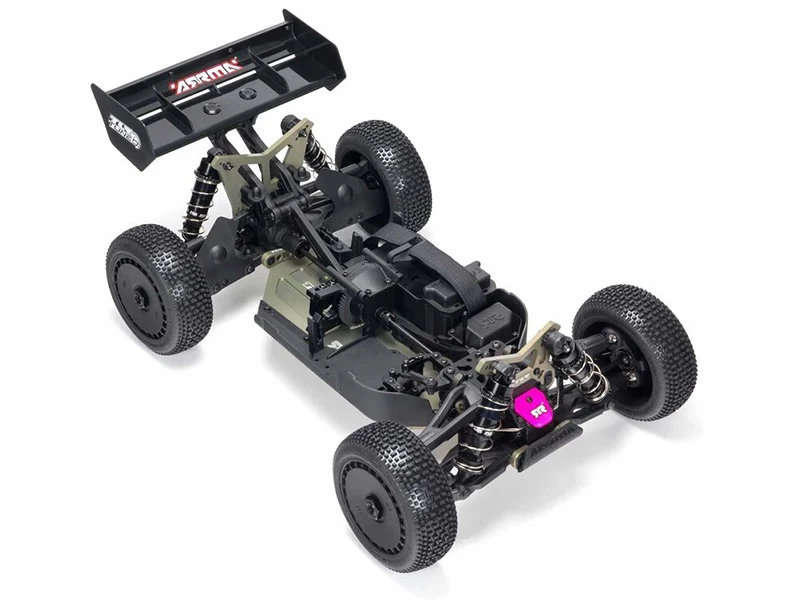

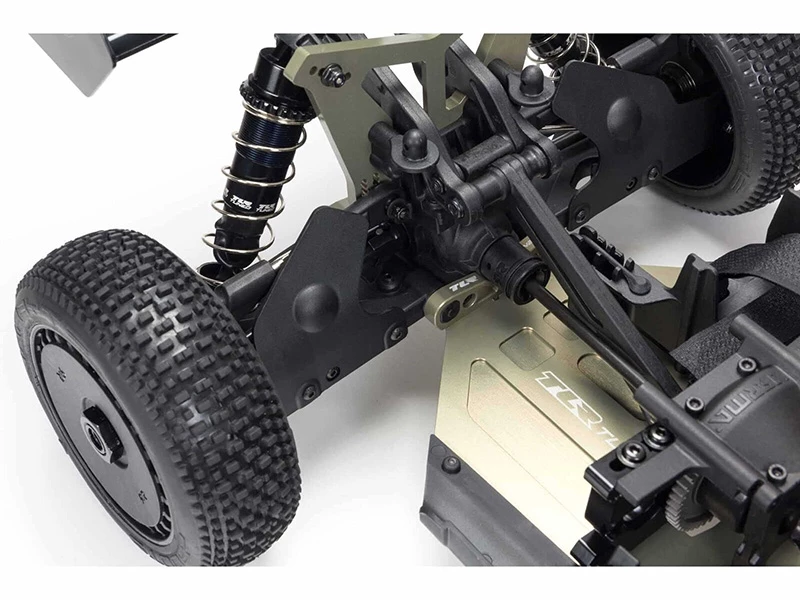

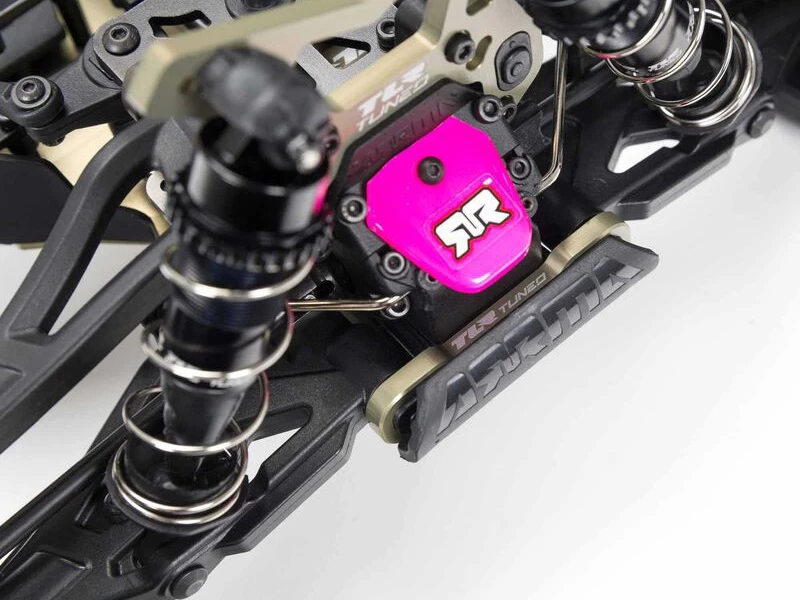

The durable TLR® Tuned aluminum upgrades include the chassis plate, steering rack, adjustable upper and lower suspension hangers, shock bodies, and front and rear shock towers. All are laser-etched with the TLR® Tuned logo. The chassis also features strong composite side pods and front and rear braces. The oil-filled, adjustable shocks have machined tapered pistons and Extreme Bash (EXB) stand-offs.

The TLR® Tuned TYPHON™ 4WD Race Buggy Roller also features a heavy-duty drivetrain that holds up to extreme bashing, with all-metal diff outdrives and gearbox internals plus durable steel driveshafts throughout. Its extra-strong wheel hubs support low-drag wheels on which ARRMA® engineers have mounted multi-terrain, race compound dBoots® Exabyte tires for next-level grip. A Race Spec tunable rear wing helps to keep the tires and buggy grounded, contributing to confident control and responsive handling at high speeds.

Maintenance downtime is kept to the minimum with an efficient, driver-friendly design. For example, an aluminum sliding mount gives you fast, hassle-free access to your motor.

The 1/8 scale TLR® Tuned TYPHON™ 4WD Race Buggy Roller is the ultimate ARRMA® buggy. For intermediate-level bashers interested in racing, it offers top-of-the-line durability and tuning capabilities to give you a successful head start.

TLR Tuned Features

TLR Tuned 7075-T6 Laser-Etched Aluminum Chassis Plate
TLR Tuned 7075-T6 Laser-Etched Aluminum Front and Rear Shock Towers

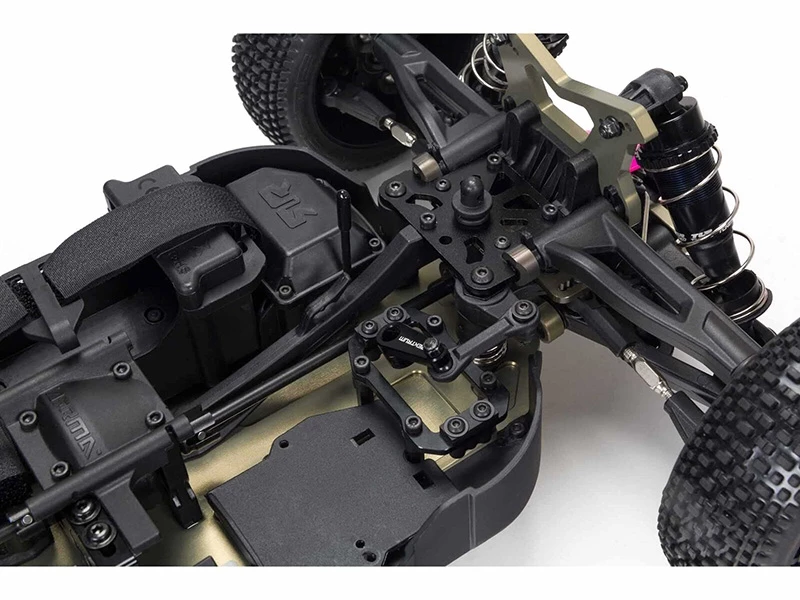

TLR Tuned 7075-T6 Laser-Etched Aluminum Steering Rack

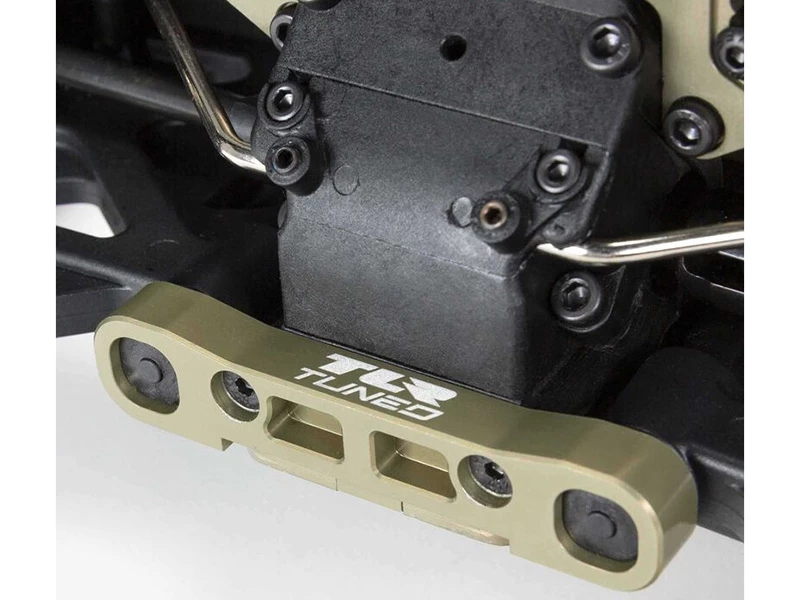

TLR Tuned Laser-Etched Aluminum Lower Adjustable Suspension Hangers
TLR Tuned Laser-Etched Aluminum Upper Adjustable Suspension Hangers
TLR Tuned Laser-Etched Aluminum Shock Bodies

Features

Strong front and rear composite chassis braces
Strong composite chassis side pods
Rear suspension dirt guards
Oil-filled adjustable shocks
Machined tapered shock pistons
EXB Extreme Bash shock stand-offs
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Durable steel driveshafts throughout
Galvanized turnbuckles
X-Hard servo saver spring
Black anodized aluminum easy-access sliding motor mount
Black aluminum servo mount
Race Spec high rear wing mount

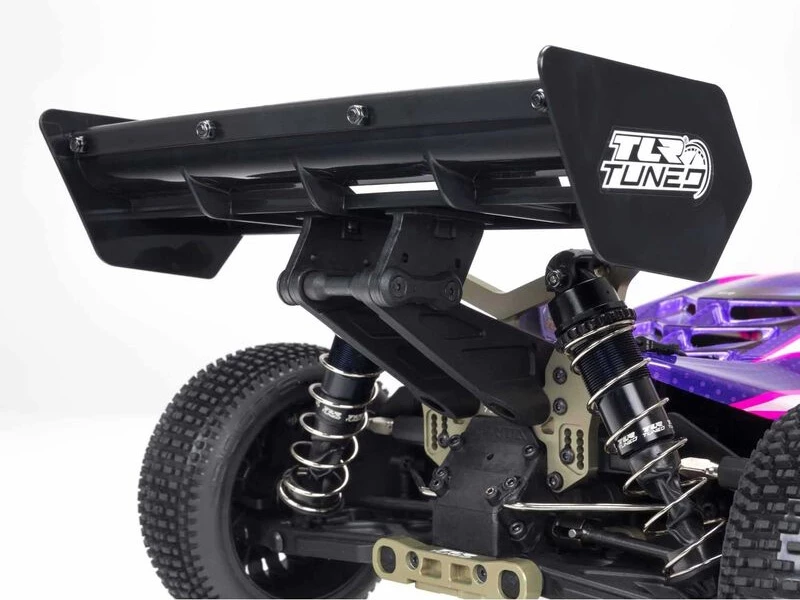

Race Spec tunable rear wing
Factory-finished Race Spec body colors and decals
dBoots® Exabyte race compound tires
Low-drag 1/8 buggy wheels
Aluminum 17mm wheel hex
2-year warranty (see website support for details)

TLR TUNED PARTS
The TLR Tuned TYPHON™ 4WD Race Buggy Roller has been upgraded with high-end aluminum parts that increase durability and improve handling. For intermediate-level bashers, it’s the perfect platform to use for racing and to gain experience with tuning — Designed Fast and Designed Tough!

OIL-FILLED SHOCKS

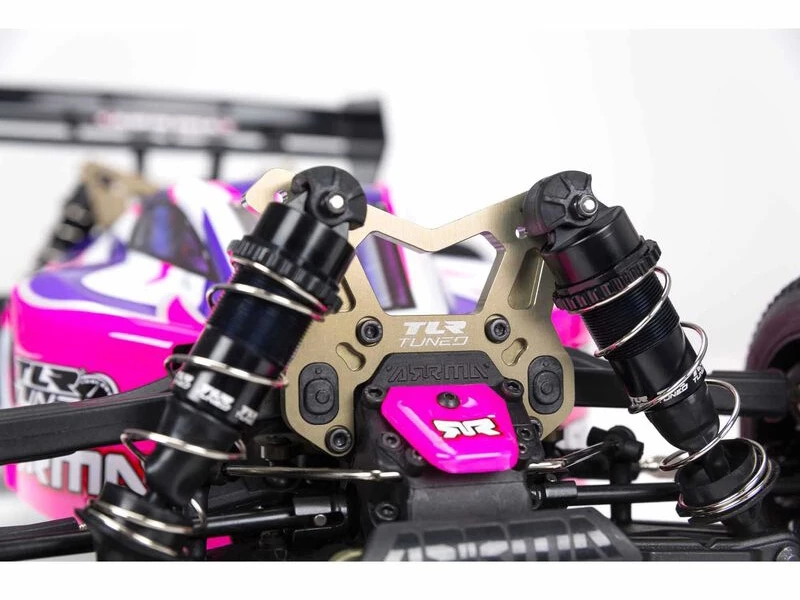

The adjustable oil-filled shocks are mounted on TLR® Tuned 7075-T6 Aluminum Shock Towers and feature TLR® Tuned Aluminum Shock bodies, machined tapered shock pistons, and EXB Extreme Bash shock stand-offs. They easily soak-up bumps over dirt, asphalt, and grass for super-smooth damping.

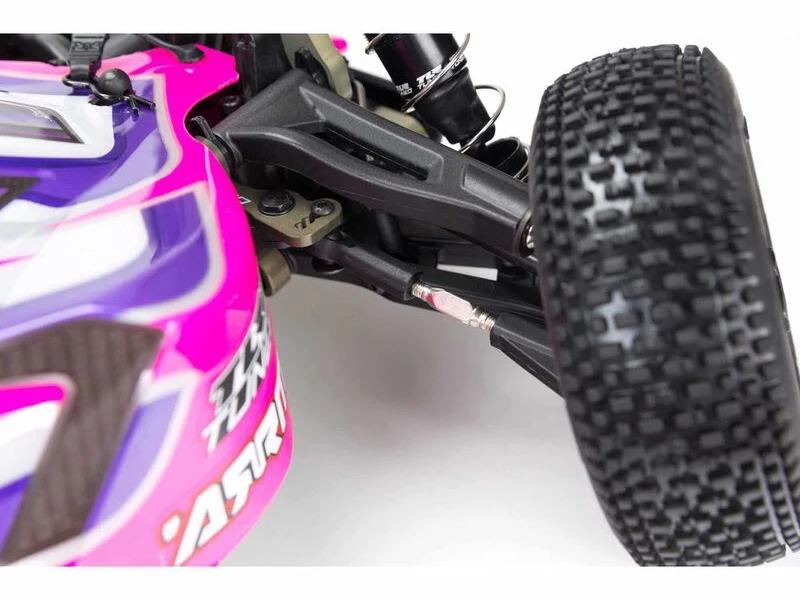

HIGH-TRACTION dBoots® EXABYTE TIRES
The dBoots® Exabyte tires are made of high-quality, race compound rubber for long-lasting durability and feature a multi-surface tread pattern for excellent traction in all conditions. They include foam inserts and are pre-glued to low-drag, 1/8 buggy nylon wheels. The 17mm hex fitting provides strength during extreme action and allows easy maintenance.

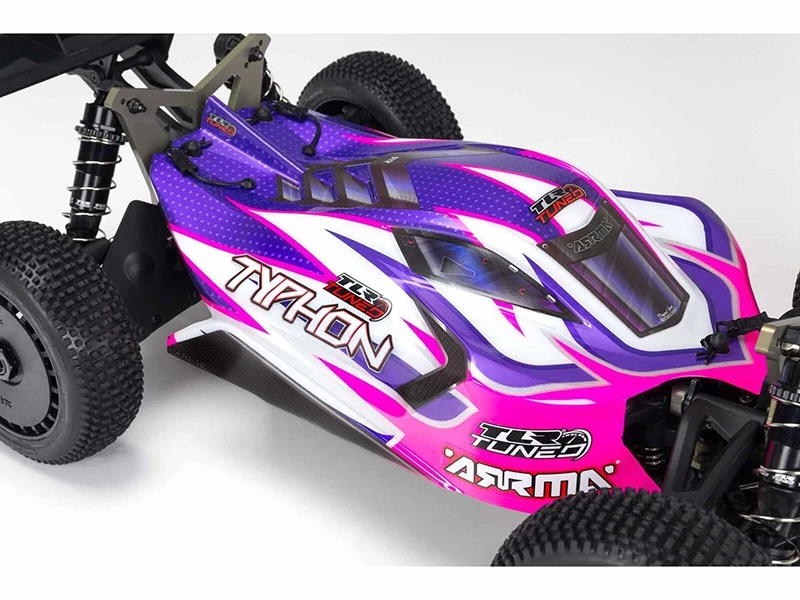

RACE SPEC FINISHED BODY

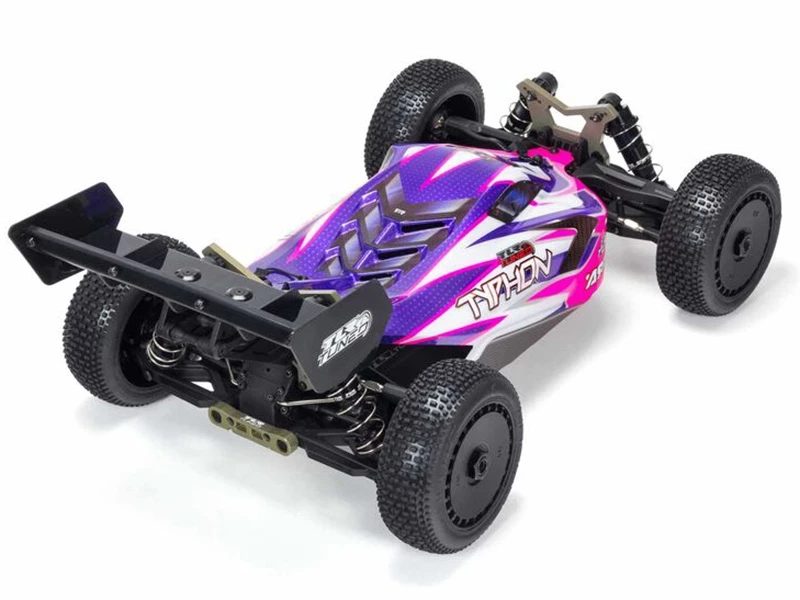

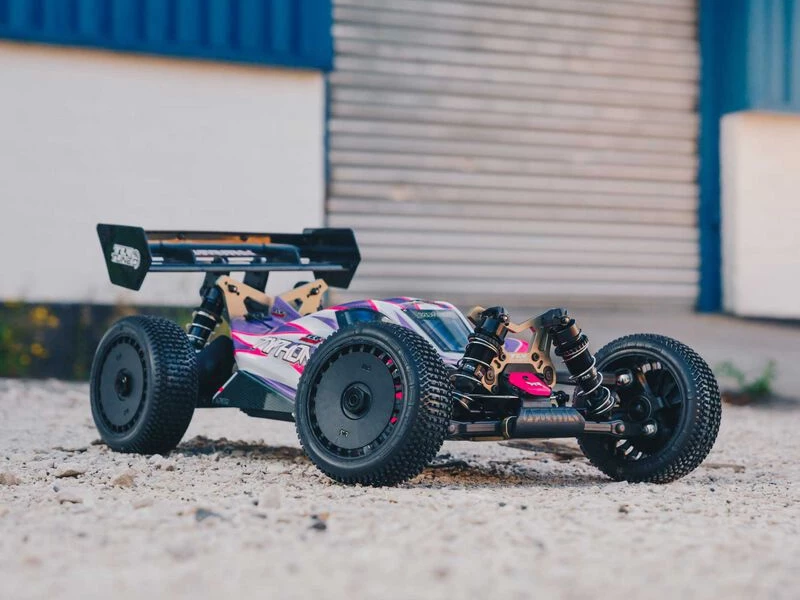

Topping off the TLR® Tuned TYPHON™ 4WD Race Buggy Roller is a sleek, factory-finished body featuring exclusive Race Spec colors and decals. A low-drag, tunable rear wing helps keep the buggy grounded, contributing to confident control and responsive handling at thrilling high speeds.

In The Box

(1) ARRMA® TLR® Tuned TYPHON™ 1/8 Race Buggy 4WD Roller
(1) Product Manual

Needed to Complete

(1) ESC
(1) Motor
(1) Pinion
(1) Transmitter
(1) Receiver
(1) Steering Servo
(1) Battery
(1) Charger

Full Specifications

Approximate Assembly Time 1-3 Hours
BATTERY RECOMMENDATIONS 4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 51mm
Ball Bearings Rubber shielded bearings throughout
Battery Sold Separately
Body Painted and trimmed, decals included
Charger Sold Separately
Chassis 3mm Plate, 7075-T6 Aluminum
Completion Level Roller
Differential 3 Gear Diffs
Drivetrain 4WD
Power Type Electric
Gear Pitch 1.0MOD
Inner Tire / Outer Wheel Diameter 3.27 in
Internal Gear Ratio 3.3
Product Height 7.44″ (189 mm)
Product Length 20.27″ (515 mm)
Product Weight 6.29 lb (2.86kg)
Product Width 12.28″ (312 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/8
Servos Sold Separately
Shock Type Oil-Filed, Coil-Over Springs
Speed Control Sold Separately
Spur Gear 50T
Suspension Independent
Tire Compound Race Compound
Tire Tread dBoots® Exabyte
Vehicle Type Buggy
Wheelbase 12.91″ (328 mm)
Wheel Hex Size 17mm
Wheel Width 1.65 in (42mm)

Specification

Manufacturer	Arrma
Part Number	C-ARA8306
EAN	5052127039161
Drive	4WD
Motor Type	No Motor Supplied
Surface Type	Off-Road
Assembly Type	Part Assembled (ARTR)
Scale	1:8
Vehicle	Buggy
Skill Level	Skill Level 4
Power Bundles	Power Bundle Required
