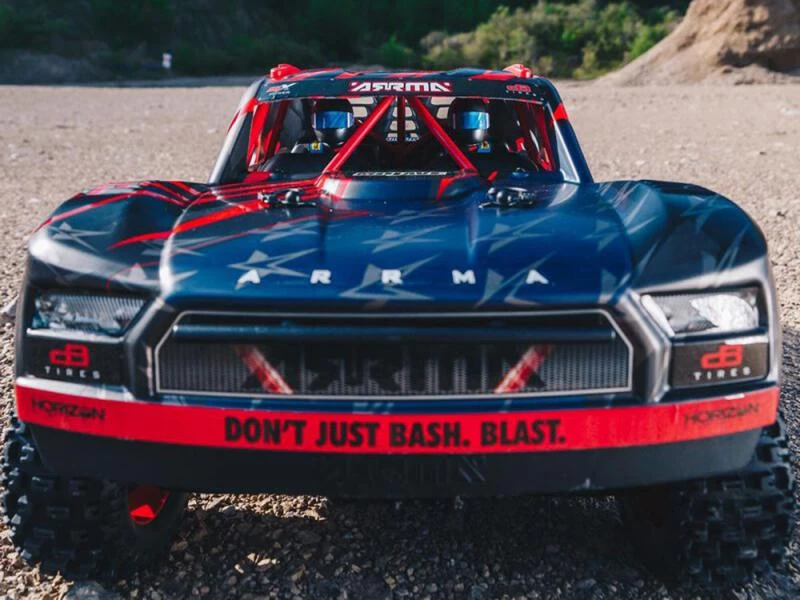

The 1/7 scale ARRMA® MOJAVE™ 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum™ SLT3™ 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.

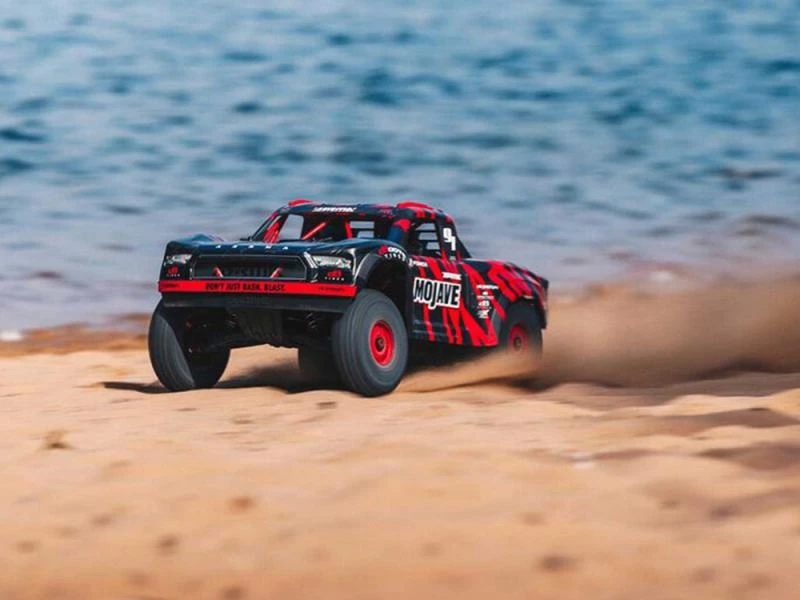

Experience the speed and durability of ARRMA^® bashing in a big way with the 1/7 scale brushless MOJAVE^™ 6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it’s ready for extreme performance right out of the box, whether you’re thrashing through coastal sand dunes or blasting across concrete sidewalks

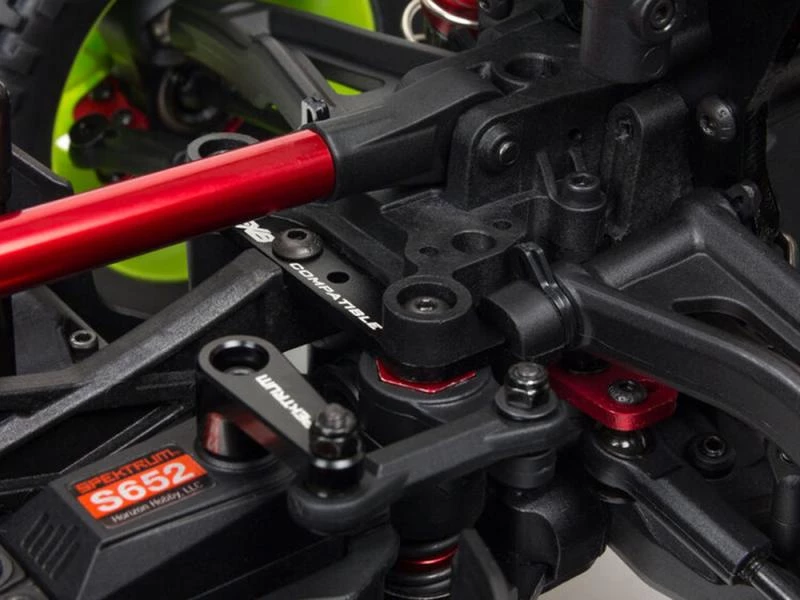

ARRMA^® engineers have updated the MOJAVE^™ 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum^™ Firma^™ 150A Smart ESC and Firma^™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA^® also includes a new, steel gear Spektrum^™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version’s ADS-15M servo.

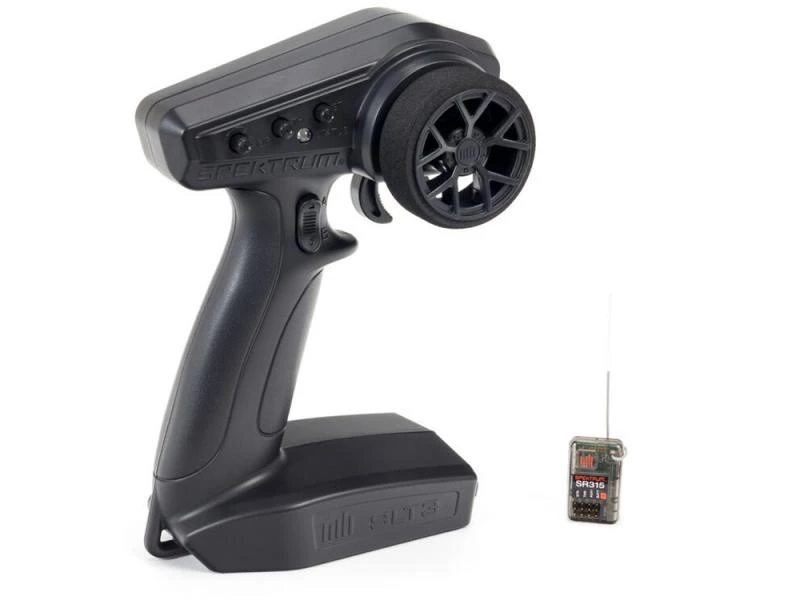

The ready-to-run package now also includes a 3-channel Spektrum^™ SLT3^™ radio and Spektrum^™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3^™ is compatible with Tactic^® SLT^™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT^™ and DSMR^® protocols, you can easily upgrade to a Spektrum^™ DSMR^® transmitter later — then, download the free Spektrum^™ Dashboard^™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma^™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

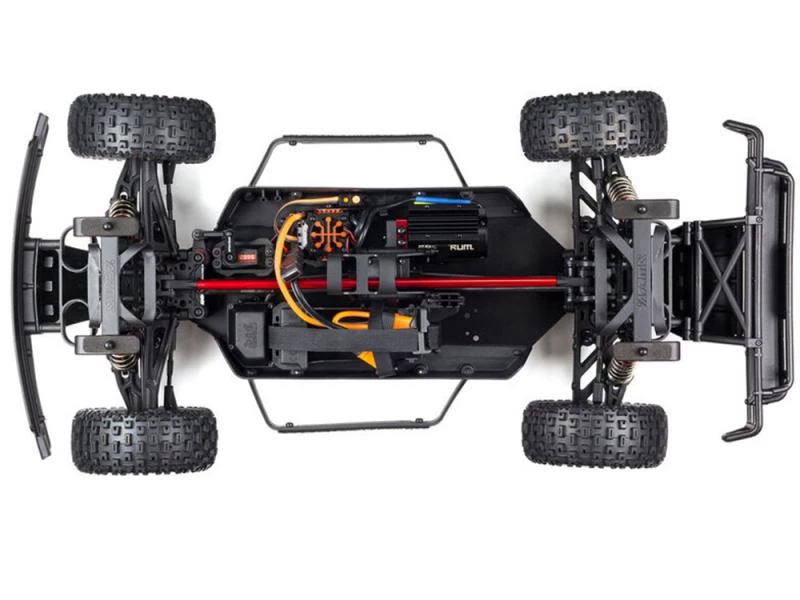

With the rugged construction of the MOJAVE^™ 6S BLX 4WD Desert Truck, you’ll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.

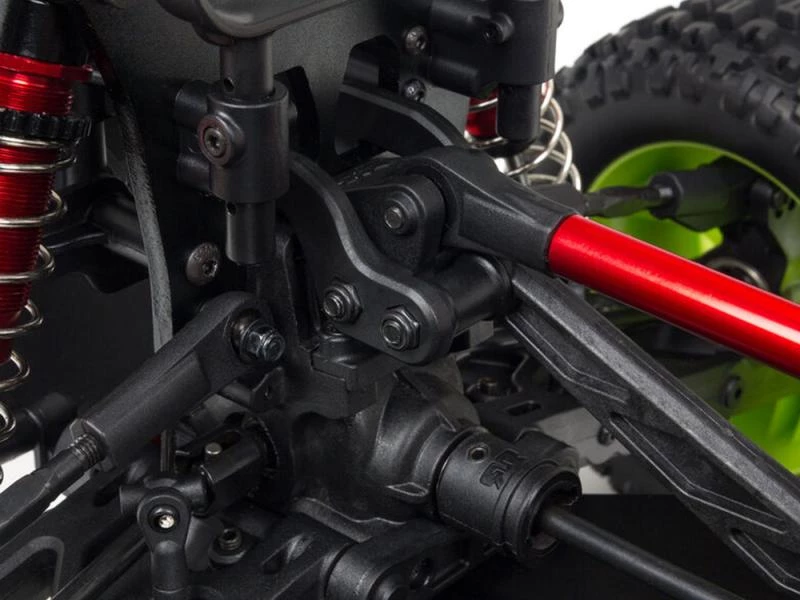

The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it’s ready to take full advantage of the brushless power system’s potential. As it comes out of the box, the MOJAVE^™ 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.

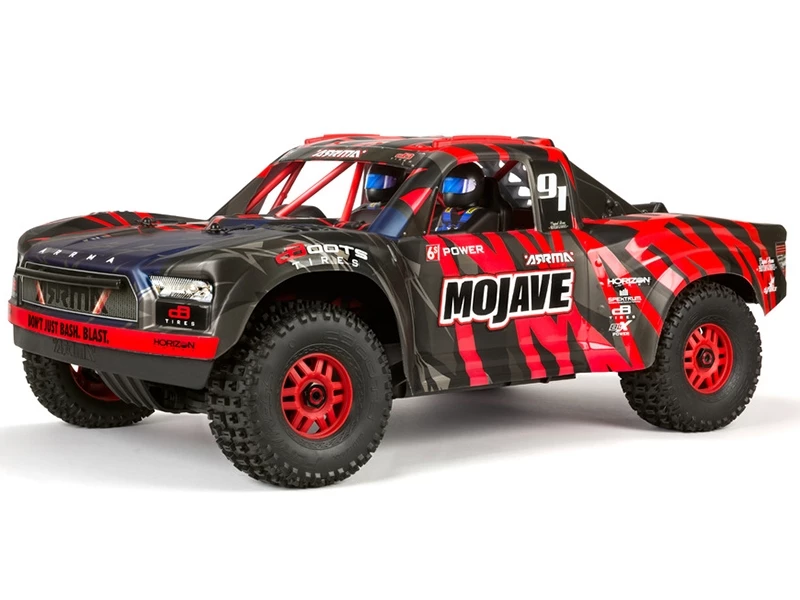

Multi-terrain dBoots^® FORTRESS^™ tires on multi split-spoke wheels give your MOJAVE^™ 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn’t just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.

Features

Ready-to-run
Spektrum^™ SLT3^™ 2.4GHz 3-Channel Radio
Spektrum^™ SR315 Dual Protocol 3-Channel Receiver
Spektrum^™ S652 Digital Servo

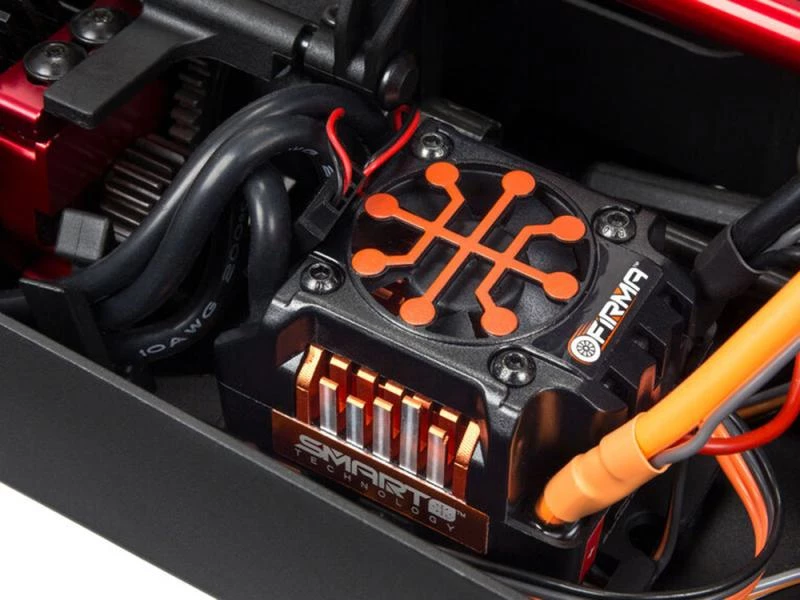

Spektrum^™ Firma^™ 150A Smart ESC
Spektrum^™ Firma^™ 4074 2050Kv Brushless Motor
EXB compatible front brace
Stronger rear brace mount
Large volume waterproof* receiver box
+1mm wheel hexes
Stronger body mounts
Anodized aluminum chassis
Strong composite chassis side pods

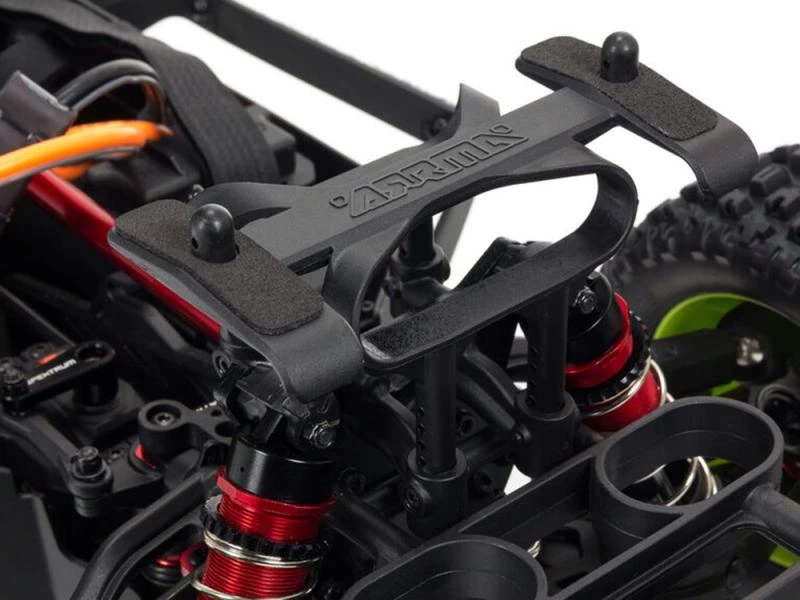

Center brace for maximum durability
Center roll hoop interfaces with body roll cage for enhanced body durability
Nerf bars for body and side impact support
Realistic front and rear bumper protection
Independent suspension for superior handling
Flexible front bumper valance
Heavy-duty suspension arms with red-anodized aluminum strengthening cap
Oil-filled adjustable shocks
Black-anodized aluminum front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminum servo saver
Never-pop ball ends
5-Bolt center diff removal
Easy-access sliding motor mount for quick motor removal
Super-durable wheel hubs for increased strength
Color-coordinated multi split-spoke wheels
Multi-terrain dBoots^® FORTRESS^™ tires
Multi-finish matte and gloss body
Realistic cockpit detail
Ultra-detailed decals
Color coordinated protective roll cage and roof rails
IC5^® connectors (EC5^™ compatible)
2-year limited warranty (see manual for details)

In The Box

ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR
Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
Spektrum ™ S652 Metal-Geared Digital Servo (installed)
Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
Product Manual

Needed to Complete

4S or 6S LiPo Battery
LiPo Compatible Charger
LiPo Charging Bag
(4) AA Batteries

Specs

Approximate Assembly Time No assembly required
Ball Bearings Full set
Battery Sold Separately
Body Painted, decaled and trimmed
Brakes User programmable
Charger Sold Separately
Chassis 0.12″ (3mm) 6061-T6 aluminum
Completion Level Ready-To-Run
Differential 3-gear
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Final Drive Ratio 13.44
Front Shock Spring Rate 3.2 f-lb/in
Front Track 13.98″ (355mm)
Power Type Electric
Gear Pitch 1.0MOD
Inner Tire / Outer Wheel Diameter 2.4 / 3.3 in
Internal Gear Ratio 4.3
Motor Size 4074
Motor Type Brushless – Sensorless
Pinion 16T
Product Height 10.59″ (269 mm)
Product Length 28.15″ (715 mm)
Product Weight 11.88lbs (35mm)
Product Width 13.98″ (355 mm)
Radio Included
Rear Shock Spring Rate 7.7 f-lb/in
Rear Track 13.98″ (355mm)
Receiver Included
Scale 1/7
Servos Included
Shock Type Aluminum body, oil-filled adjustable
Speed Control Included
Spur Gear 50T
Suspension Independent
Tire Tread dBoots FORTRESS
Tire Type Multi-surface
Vehicle Type Desert Truck
Water-Resistant Yes
Wheel Hex Size 17mm
Wheel Type 1/7 SC, 17mm Hex, Multi Split Spoke
Wheel Width 1.66″ (42mm)

Specification

Manufacturer	Arrma
Part Number	C-ARA7604V2T2
EAN	5052127038812
Motor Type	Brushless
Waterproofing	Waterproof
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:7
Vehicle	Short Course
Skill Level	Skill Level 4
Power Bundles	Power Bundle Required
