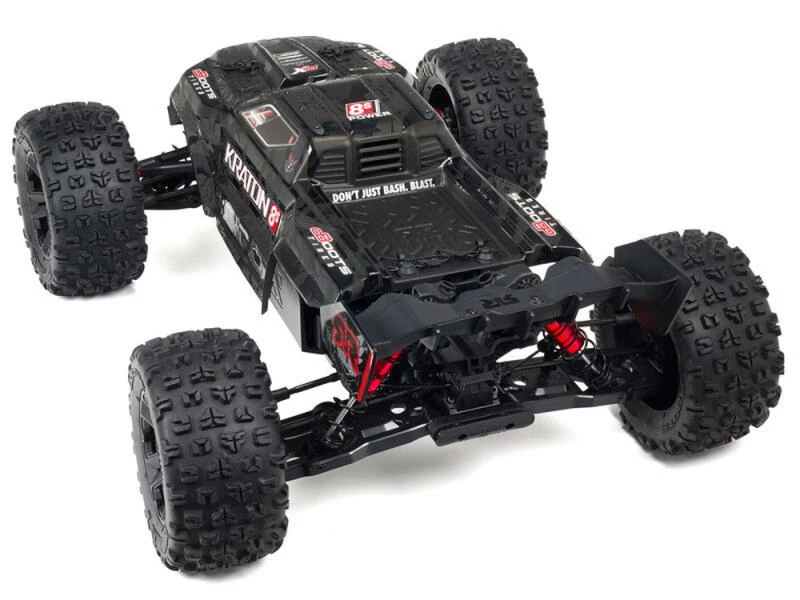

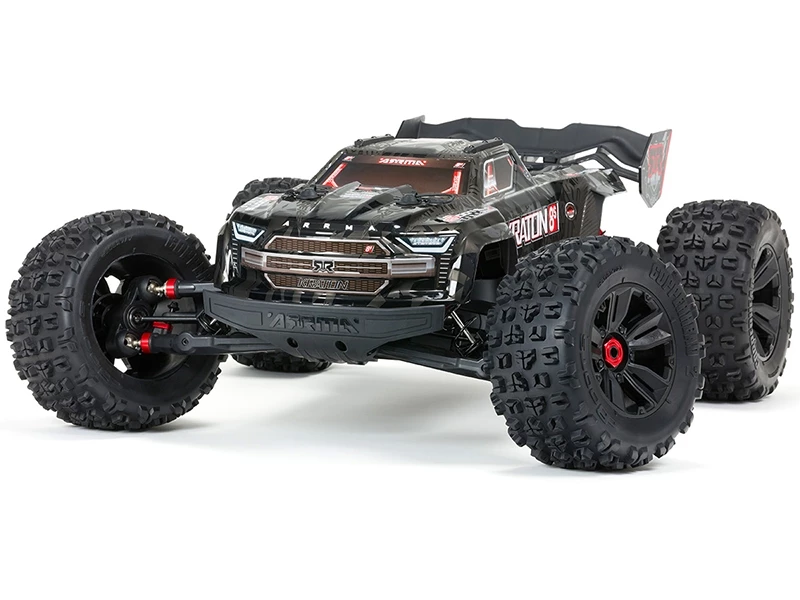

The KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck showcases ARRMA® bashing performance at its biggest and best — it’s the King of all KRATONS, providing large scale bashers with the ultimate Speed Monster Truck experience. Add your choice of powerful 8S brushless power system and watch the KRATON™ 1/5 EXB blast over punishing off-road terrain with ease.

Fully assembled and ready for your powerful electronics, the ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck adds extra toughness everywhere it counts. Topped with an exclusive EXB matte and gloss finish body, it’s the King of KRATONS!

Key Features

Add your choice of electronics to be as fast and powerful as you like
Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box

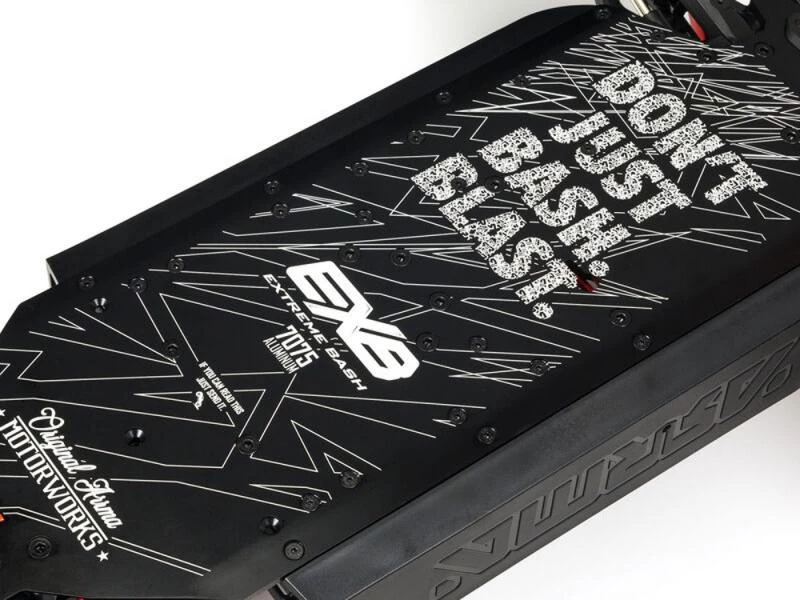

EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
EXB Red-anodized CNC aluminum front brace mount
Exclusive EXB matte and gloss effect body

ARRMA® engineers have added extra toughness everywhere it counts to make the fully assembled chassis a perfect platform for high-speed bashing over brutal terrain. Numerous EXB-hardened parts and options give the KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck virtually unstoppable strength right out of the box. They include a 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and EXB front bumper with impact absorbing design. Topping it off is an exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck blasts over dirt, asphalt, and grass — all terrain and all conditions. Beefy dBoots® COPPERHEAD™ 2 big block tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling at high speeds.

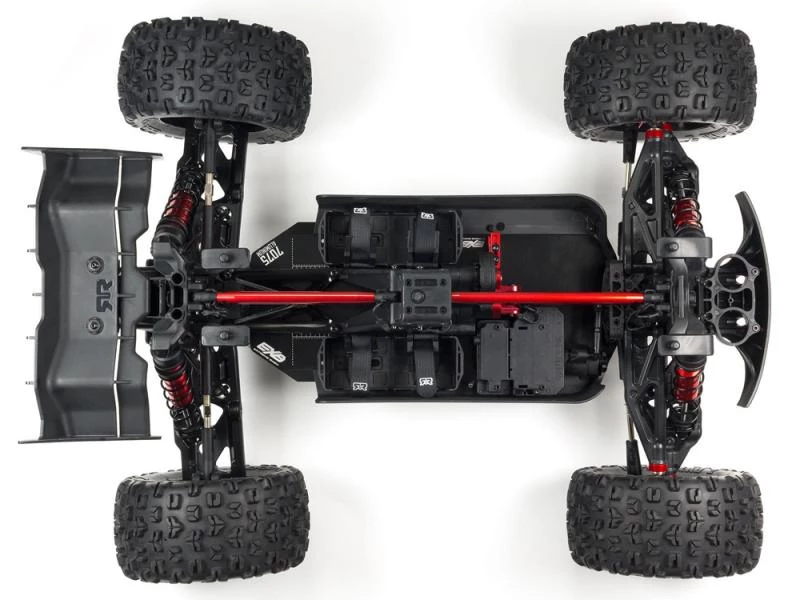

A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing.

ARRMA® also keeps your maintenance downtime to the minimum. The KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck more than just a massive and powerful bashing machine. It’s the best of the best — the King of the KRATONS!

In The Box

    (1) ARRMA® KRATON™ 1/5 4WD EXtreme Bash Roller Speed Monster Truck
    (1) Optional 39T Spur Gear
    (1) Red-Anodized Aluminum 49 and 56 Series Motor Plates
    (1) Mounts for 1/5 and 1/6 Servos
    (1) Adapters for 15T and 17T Servo Splines
    (1) Product Manual

Needed to Complete

Motor
Electronic Speed Control
Radio System
Steering Servo
Batteries
Charger
Suitable Pinion Gear

Features

Designed Fast, Designed Tough
Add your choice of electronics to be as fast and powerful as you like
Numerous EXtreme Bash parts and options for extreme durability — the ultimate large-scale vehicle out of the box
EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
EXB Red-anodized CNC aluminum front brace mount
EXB Front bumper with impact absorbing design
Exclusive EXB matte and gloss effect body
Heavy-duty shocks with 6mm thick shock shafts and beefy shock rod ends
Heavy-duty 7mm thick steering turnbuckles and 8mm thick rear suspension upper link turnbuckles with massive rod ends
Heavy-duty COPPERHEAD 2 Big Block tires
Black-anodized aluminum rear lower chassis brace
Center body support and brace for maximum durability
Strong composite chassis side pods
Front and rear sway bars
Red-anodized aluminum 49 and 56 series motor plates
Easy-access front and rear diff module design
47T and optional 39T spur gear
Servo mounts for 1/5 and 1/6 servos
15T and 17T servo saver adaptors
Heavy-duty servo saver springs
Battery Tray Size: 180x55x53mm

Full Specs

Approximate Assembly Time1 – 3 hours
Ball BearingsFull set
BatterySold Separately
BodyPainted, trimmed and decaled
BrakesIntegral with ESC (ESC not included)
ChargerSold Separately
Chassis0.196″ (5mm) Plate, 7075-T6 Aluminum
Completion LevelKit
Differential3 differentials, gear type design
Drivetrain4WD
Drive TypeForward/Brake/Reverse
Final Drive Ratio9.1 – 28.4
Front Track23.7″ (602mm)
Power TypeElectric
Gear Pitch1.0 MOD
Internal Gear Ratio9.06
Product Height11.1″ (282 mm)
Product Length30.35″ (771 mm)
Product Weight23.32 lb (10.6kg)
Product Width23.7″ (602 mm)
RadioSold Separately
Rear Track23.7″ (602mm)
ReceiverIncluded
Scale1/5
ServosSold Separately
Shock TypeOil-filled, coil-over springs
Speed ControlSold Separately
Spur Gear47T and 39T included
SuspensionIndependent
Vehicle TypeMonster Truck
Water-ResistantYes
Wheelbase19.33″ (491 mm)

Specification

Manufacturer	Arrma
Part Number	C-ARA5208B
EAN	5052127044011
Drive	4WD
Surface Type	Off-Road
Assembly Type	Part Assembled (ARTR)
Motor Type	No Motor Supplied
Scale	1:5
Vehicle	Monster Truck
Skill Level	Skill Level 5
Power Bundles	Power Bundle Required
