New for 2021 the Absima Torch 4s GEN2.1!

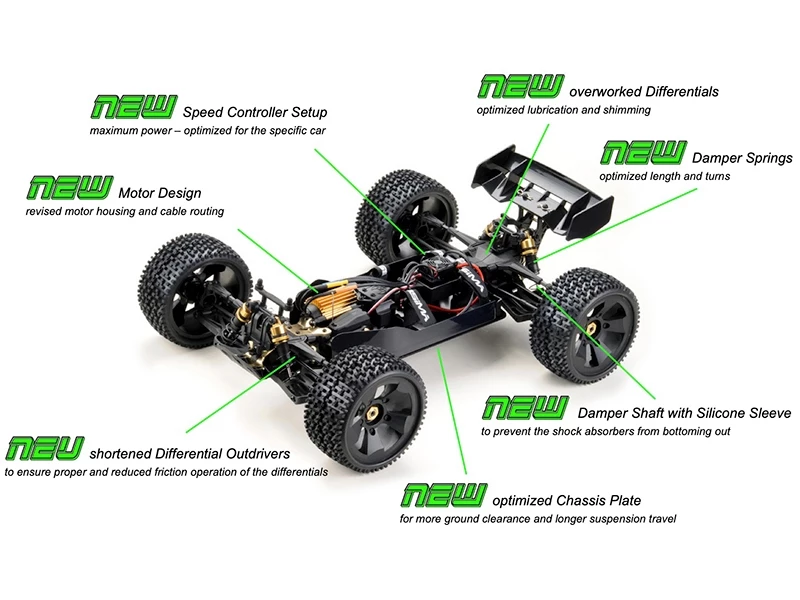

Updates:

New ESC optimized for the specific car
New Motor mount housing
New Differentials
New Shortened differential outdrives
New Optimized chassis plate
New Damper shaft with silicone sleeve

CHASSIS CONCEPT:
The chassis is fully tuneable with adjustable ride height, tunable shocks, adjustable camber, adjustable toe angle, multiple shock mounting positions and adjustable rear wing.
Durable aluminum parts like the 3mm laser-engraved chassis plate, golden colored wheel hubs wishbone brackets, brace- and damper parts, ensure a long chassis life and a premium design.

DRIVE CONCEPT:
The drive concept – powered by HOBBYWING is top in it´s class for performance and reliability and accelerate the vehicle up to 70 km/h. The cooling fan on the 120A speed controller keeps temperatures consistent during full throttle 4S action. The 2300KV motor delivers insane power to the wheels.
Parameters like brake force, drag brake, start mode (punch), running mode and LiPo cut-off you could change the settings through a set button or a programming box (separately available). T-plugs connectors provide a reliable connection between your speedo and your choosen battery packs. So much power want to be supplied! We advise to quality batteries with high capacity and a C-rate of at least 45C.

5.0mm CVD shafts front and rear, metal differential gears and 4.5mm center dogbones are used for power transmission.

“Easy-Use” motor mount concept for a quick and easy motor removal. Just open 2 screws and slide it out!

STEERING CONCEPT:
Our proven ABSIMA “CR2SV2” 2.4 GHz radio system guarantees a fast and reliable connection to your vehicle. The 9kg metal gear servo with aluminum horn and durable high-performance tires ensure proper steering on any surface.

Features:

Extremly durable composite plastic parts
Monocoque suspension arms
Fully adjustable chassis concept
Hardened steel motor pinion
Extremly durable plastic spur gear
Adjustable oil-filled 16mm Big Bore shocks
3 full-metal geared differentials
Downforce wing
Adjustable wing holder
2-piece sliding motor mount concept for easy adjustment and instalation
Massive 5.0mm CVD axles – front & rear
4.5mm middle steel drive shafts – front & rear
Race compound low profile tires
“Saddle-Pack” battery concept for a perfect weight distribution
3mm black aluminum chassis plate with ABSIMA laser engravings
Aluminum servo arm
Seperate water- and dust-proof receiver box
Completely ball bearing mounted
Chassis sideguards for dirt protection
All aluminum parts anodized in gold
Aluminum 17mm wheel hex drives
Steel turnbuckles all-over
Adjustable camber, toe angle & ride height
SPEED UP TO 70 KM/H

Specs:

Scale: 1:8
Drive type: 4WD
Surface: Off-road
Wheelbase: 375mm
Chassis clearance: 45mm
Tire width: 70mm
Tire Ø: 145mm
Motor transmission: Pinion: 13T / Spur gear: 49T
Pinion module: 1.0
Length: 555mm
Width: 445mm
Height: 200mm
Weight: 3970g (w/o batteries)

Required for Use:

2x 7.4v LiPo Batteries with Deans Plugs
Suitable LiPo Balance Charger with Charge Bag
4x AA Batteries for Transmitter
Optional Program Box for Easy Setup (PN 2110041)

Specification

Manufacturer	Absima
Part Number	13101-2.1
EAN	4250650946616
Motor Type	Brushless
Waterproofing	Water Resistant
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:8
Vehicle	Buggy
Skill Level	Skill Level 2
Power Bundles	Power Bundle Required
