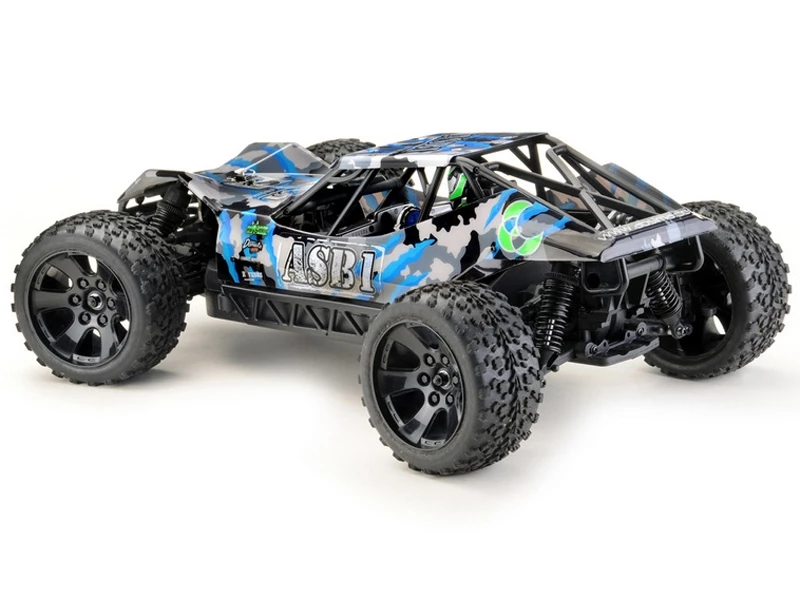

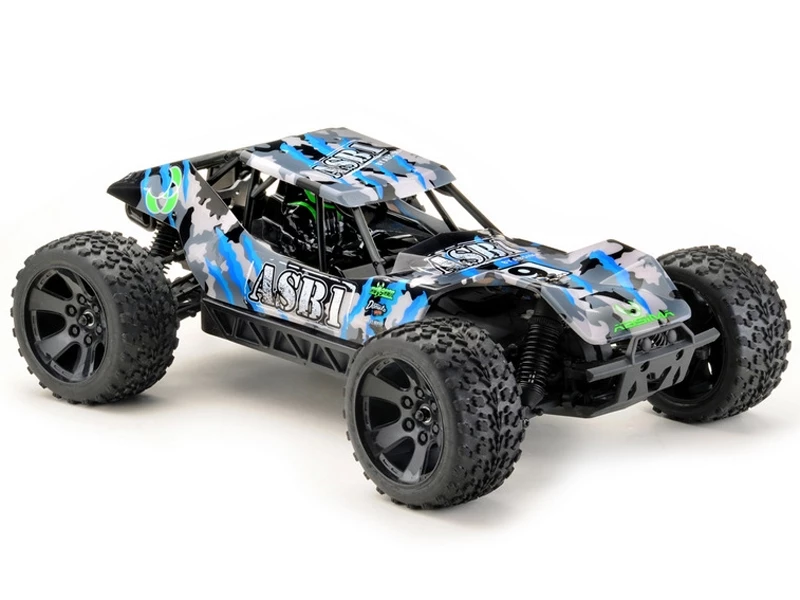

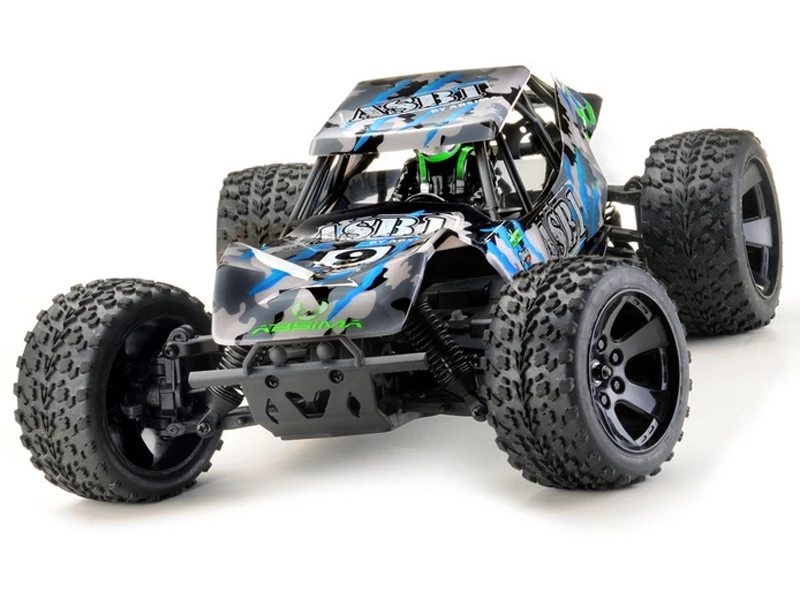

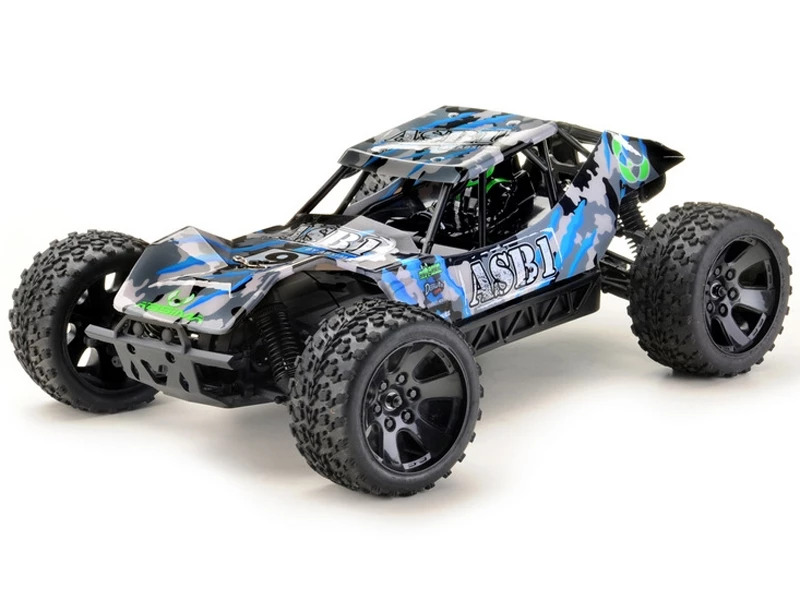

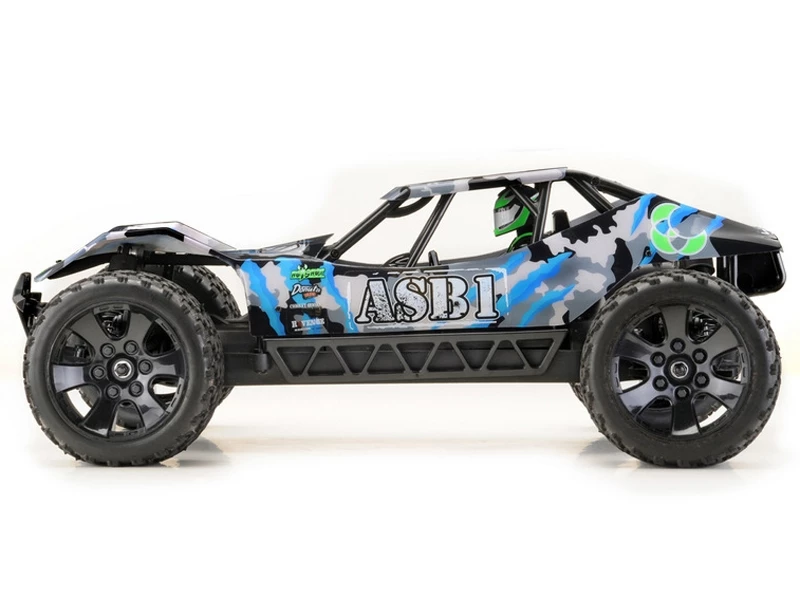

Absima 1:10 EP Sand Buggy ASB1 CAMO-BLUE 4WD RTR

Highlights & Details:

• 40A waterproof speed controller
• 15T brushed motor
• 2.4 GHz CR2S remote control
• Battery and charger (EU plug)

Features:

• Fully built and equipped all-wheel drive buggy incl. 2.4 GHz remote control, NiMH high-performance battery and charger
• Waterproof and LiPo compatible 40A brushed controller with Tamiya plug
• Water resistant and powerful steering servo with 4kg steering force

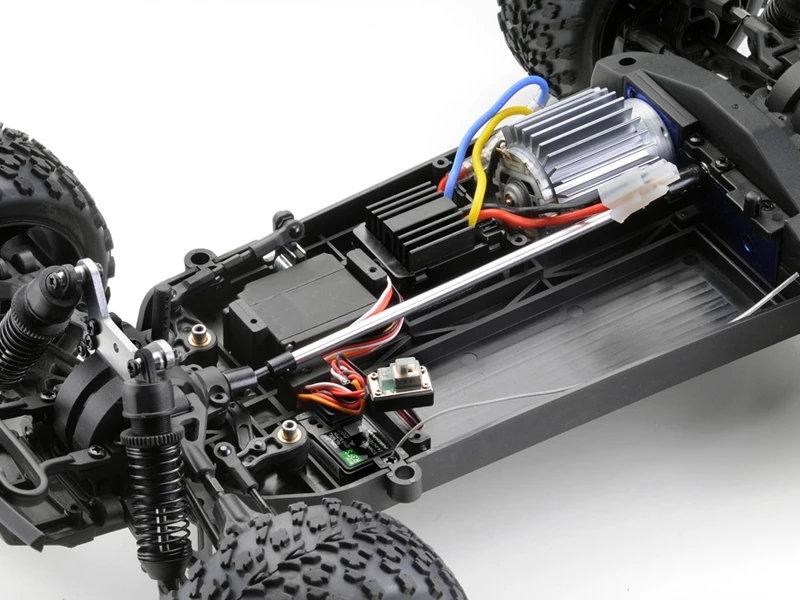

• 15 turn 550 size brushed motor with heat sink
• Fully enclosed main drive – prevents ingress of stones or other foreign objects
• Aluminum main drive shaft with steel mounts
• The vehicle is completely ball bearing mounted and therefore very smooth and durable
• Two built-in cone differentials transmit the torque optimally and compensate for speed differences, e.g. when cornering
• Differential outputs made of steel
• The oil shock absorbers can be perfectly adjusted to any slope by knurled screws
• Aluminum engine mount
• Steel CVD shafts on front axle
• Track rods adjustable via right/left-hand thread

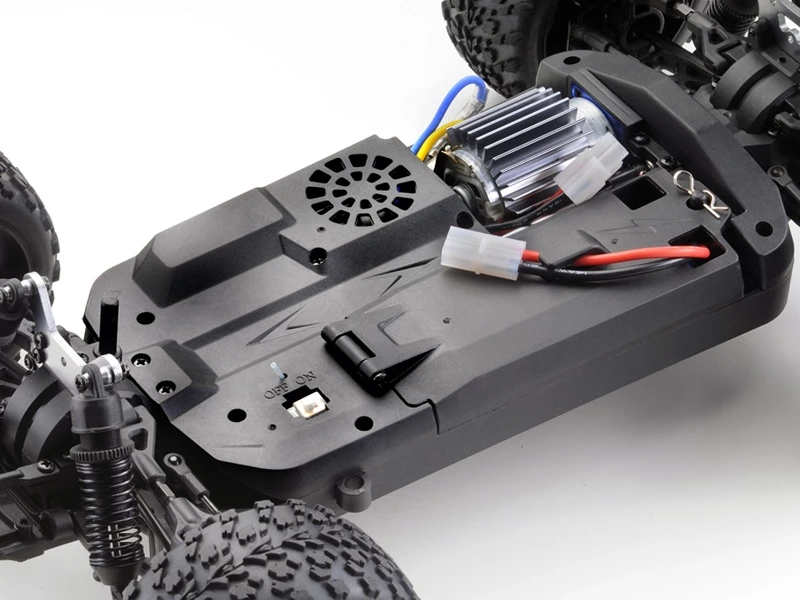

• Dirt cover for electronic components (controller, receiver and battery)
• 3mm aluminum shock towers F/R
• Prepared for brushless and LiPo operation
• Extremely durable body
• The reinforced plastic parts are on the one hand very resistant and on the other hand provide the necessary degree of deformation to survive many “accidents” without damage.

ATTENTION: If you want to run brushed cars with a LiPo battery, the C-rate should not be higher than 30C. Otherwise the speed controller, motor and connectors could get too hot which can lead a damage!


Specifications:

• Dimensions ( L/W/H) 430x285x155 mm
• Weight 2170 g
• Wheelbase 293 mm
• Ground clearance 40 mm
• Track front/rear 230 mm
• Tires: Ø ± 105 mm / Width 50 mm front/rear
• Viscosity damper oil: 400 v/h
• Spring: medium
• Damper installation length: 85mm front/rear
• Viscosity differential oil : front 1. 000 / rear 3.000
• Internal gear ratio: bevel gear 13T / ring gear 43T
• Motor gear ratio: main gear 55T / motor pinion 20T (module 0,8)

Technical data speed controller:

• Waterproof 40 A brushed controller
• NiMH / LiPo operation
• Short time load: 180A forward / 90A reverse
• Forward / brake / reverse function
• BEC 5V/2A
• Operating voltage 7.2 – 7.4V
• Motor limit > 12T at 7.4V; < 30.000 rpm at 7.2V
• Connector system: Tamiya
• Dimensions: (L/W/H) 46,5 x 34 x 28,5 mm
• Weight 70 g
• Plug & Drive System
• On/Off switch

Technical data motor Thrust eco:

• 15 turns
• 30.000 rpm
• 16A
• Size 550
• Shaft: length 9,6 mm; Ø 3,17mm
• Motor dimensions: Length 57mm / Ø 36,7mm

Technical data servo S40PH:

• Steering force 4.0kg @ 4.8V
• Actuating time 0,16 Sec / 60°
• 25T
• JR connector
• Dimensions (LxWxH) 40.2 mm x 20.4 mm x 39.8 mm (standard size)
• Weight: 43g

Technical data remote control:

• 2-channel transmitter
• 3-channel receiver
• Reverse function
• Dual rate and trim adjustable
• Batteries: 4 Mignon AA cells ( not included )

Delivery includes:

• 1 pcs. Sand Buggy ASB1 RTR – 2.4 GHz remote control CR2SV2 – NiMH Racing Pack – EU charger – manual
• Required accessories:
• 4 Mignon AA cells for remote control

Specification

Manufacturer	Absima
Part Number	12208UK
EAN	4250650948924
Motor Type	Brushed
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	Buggy
Skill Level	Skill Level 3
Power Bundles	No Bundle Required
