Rock racers and dessert buggies are on everyone’s lips at the moment! On the one hand, this is due to the fact that the vehicles can be moved not only on the road. Especially in rough terrain, these vehicles offer a driving image that is unparalleled.

The powerful ADB1.4 offers many advantages over its competitors. The extremely detailed body and the installed technology leave nothing to be desired!

Highlights:

40A HOBBYWING speed controller with Tamiya connector and 21T brushed motor (NiMH and LiPo compatible)
Oil pressure shock absorber with adjustable preload
LED light bar front and rear

The 40A HOBBYWING brushed speed controller is waterproof and comes pre-assembled with a Tamiya plug. The controller can be used with 7.2V NiMH or 2S LiPo batteries (up to 30C). Powered by this is a 21T brushed motor which directly accesses an adjustable slipper clutch. The permanent all-wheel drive provides increased traction. The two differentials (front and rear) are driven by an aluminum driveshaft.

Suspension:

16mm oil-pressure shock absorbers with adjustable preload on all four axles are standard on the ADB1.4 and allow you to optimize the handling and adapt it perfectly to the conditions. Adjustable shock towers made of 4mm 6061-T6 aluminum, anti-roll bars on front and rear axles and independent suspension provide amazing handling and ride.

Body and Lighting:

The body with its many add-on parts such as mirrors, side pipes, fire extinguisher and pressure equalization tank is an absolute eye-catcher! In addition, there is the dashboard, two driver figures and a dummy fan at the rear.

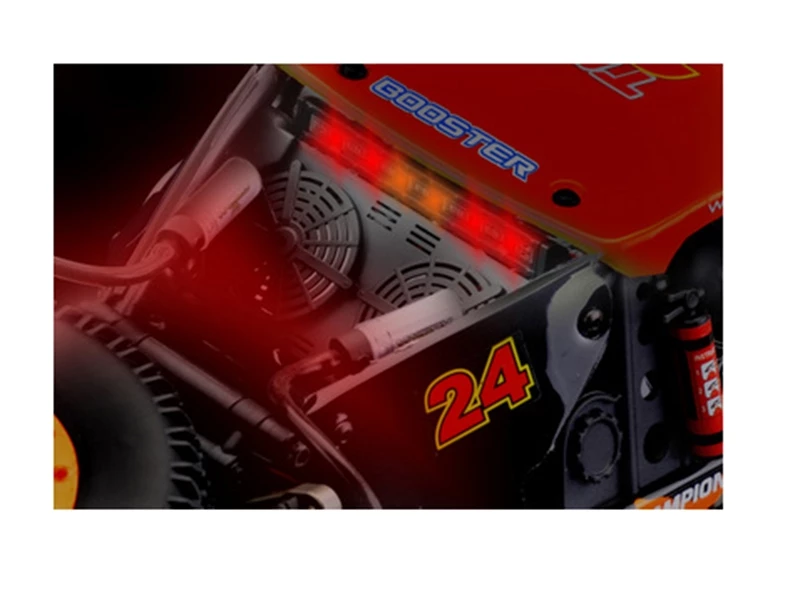

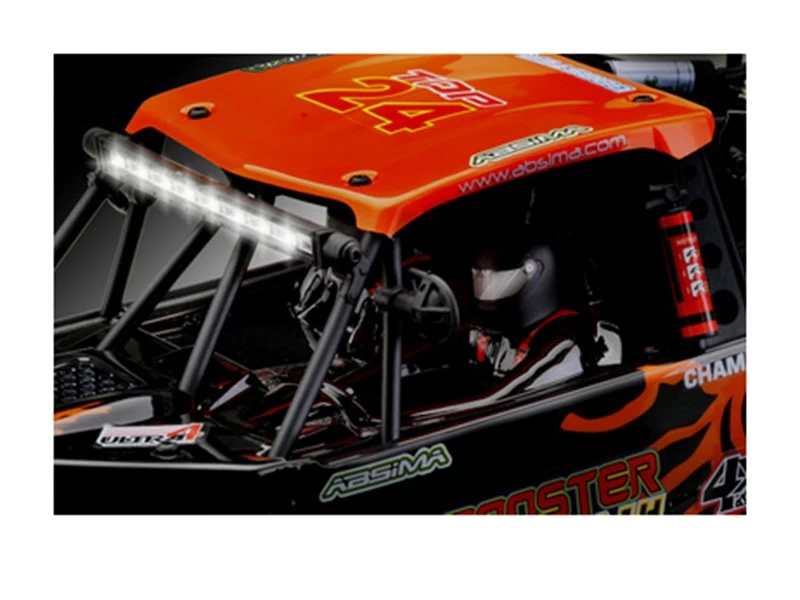

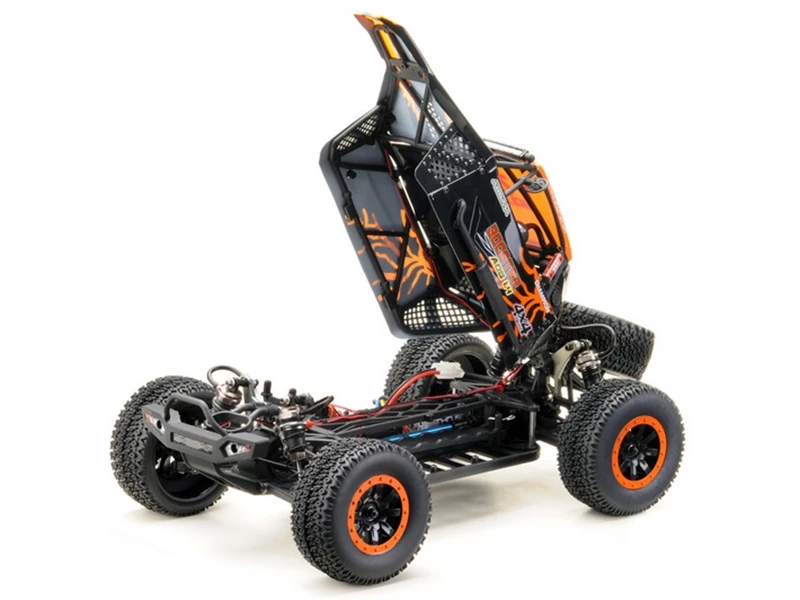

The hinged cage provides quick access to the battery. And even in the dark, the ADB1.4 cuts a fine figure thanks to marker lights and an LED light bar at the front (white) and another light bar at the rear (red/orange).

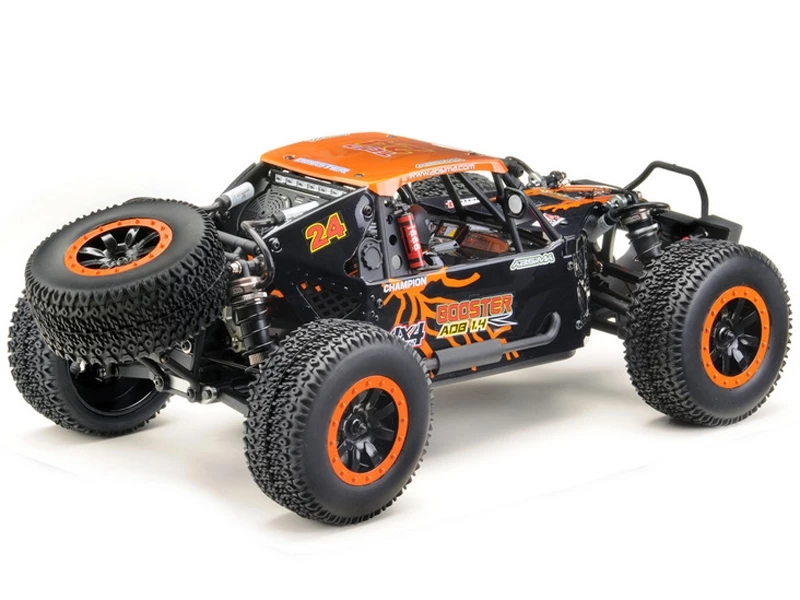

Finally, there is a full-size spare wheel at the rear of the vehicle.

Features:

4WD all-wheel drive
2.4GHz remote control
Extremely durable composite plastic parts
Fully adjustable suspension
Ball bearing drive
Adjustable 16mm Big Bore shocks
Steel differential outputs
5mm aluminum motor mount
5mm aluminum shock towers
Aluminum driveshaft
2 cone differentials (front/rear)
LED light bar front and rear
Extremely detailed body with add-on parts
Vehicle can be powered by 2-cell LiPo batteries (up to 30C)

Specification:

Scale: 1:10
Dimensions (L/W/H): 500x270x165 mm
Weight: 2060g
Wheelbase: 290mm
Ground clearance: approx. 45mm
Track width: 215mm front / 210mm rear
Tires front/rear Ø: 110mm / Width: 45mm
Damper oil: 400CPS
Damper installation length: 80mm
Motor ratio brushed version: Pinion: 21Z / Main gear: 77Z (48dp)

Box Contents:

Dessert Buggy “ADB1.4” Brushed Version
2.4GHz Remote Control CR2SV2
Mini tool kit
Instruction manual

Required for Use:

7.2v NiMH Battery or 7.4v LiPo Battery with Tamiya Connector
Suitable Charge (If using a LiPo Battery a LiPo Specific Balance Charger is Required)
x4 AA Batteries for Transmitter
If using a LiPo Battery a LiPo Charge Bag is Recommended

Specification

Manufacturer	Absima
Part Number	12225
EAN	4250650947811
Motor Type	Brushed
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:10
Vehicle	Buggy
Skill Level	Skill Level 3
Power Bundles	Power Bundle Required
